引言
Python作为数据科学和深度学习领域的首选语言,其简洁的语法和丰富的生态系统让开发者能够快速构建原型和实现复杂的算法。然而,Python的解释执行特性在面对大规模并行计算任务时往往成为性能瓶颈。CUDA技术的出现为Python开发者提供了突破这一限制的机会。
通过将Python的易用性与CUDA的高性能计算能力相结合,开发者可以在保持开发效率的同时,充分利用GPU的并行计算优势。本文将从Python CUDA编程的基础知识出发,深入探讨各种优化技术和实战经验,帮助Python开发者掌握GPU加速编程的核心技能。

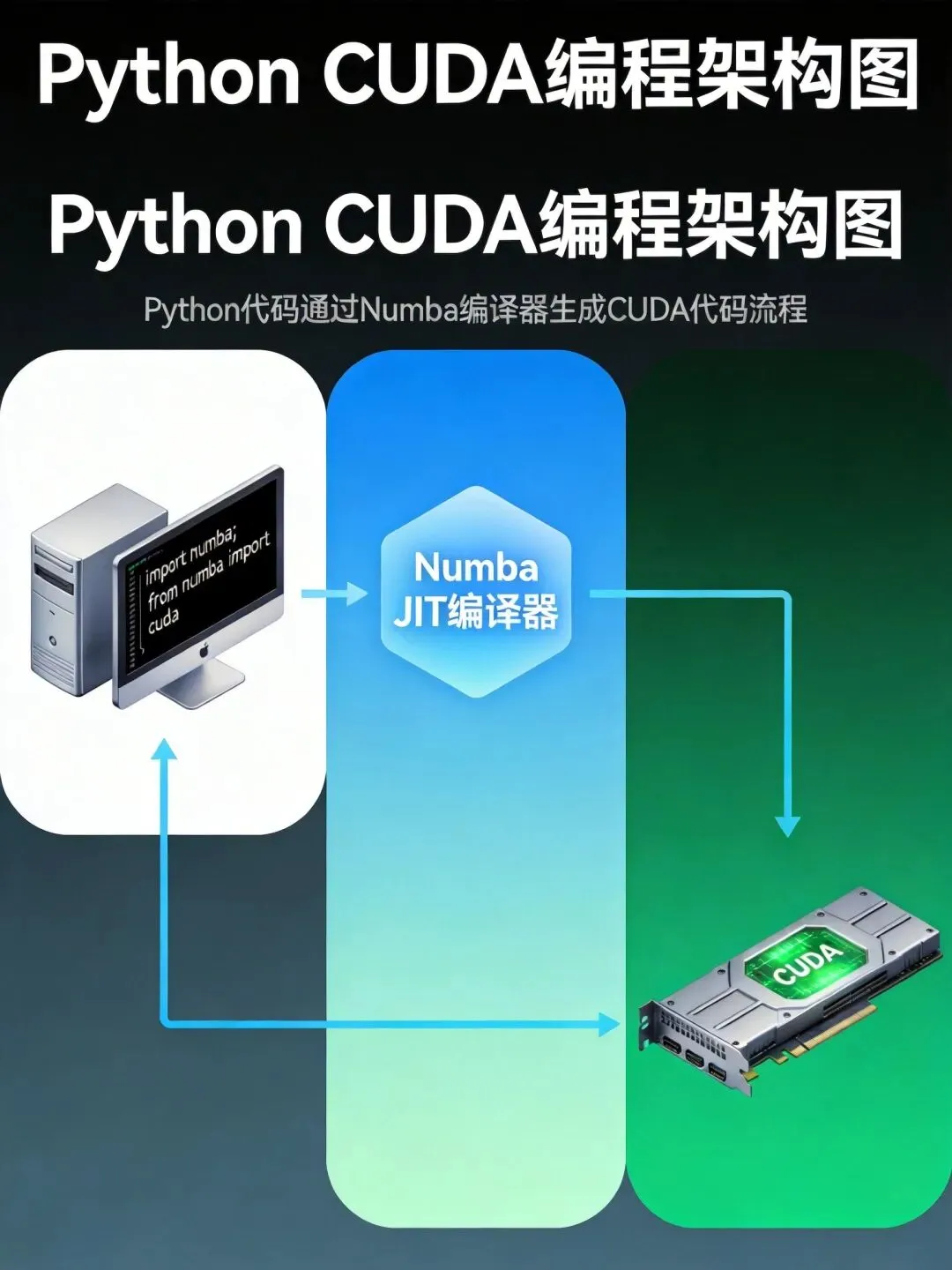

本文选择的开发栈是Numba - 一个为Python设计的即时编译器,它能够将Python函数编译为高性能的机器代码,并提供了对CUDA编程的完整支持。
第一章:Numba CUDA编程基础
1.1 Numba CUDA概述
Numba是Anaconda公司开发的Python即时编译器,其CUDA模块为Python开发者提供了简洁而强大的GPU编程接口。相比直接编写CUDA C++代码,Numba的优势在于:
- 原生Python语法:无需学习C++,使用熟悉的Python语法编写CUDA代码
- 即时编译
- 类型推导
- 与NumPy深度集成
- 丰富的工具链
1.2 第一个CUDA Kernel
让我们从一个简单的向量加法示例开始,了解Numba CUDA的基本用法:
import numpy as npfrom numba import cuda# 定义CUDA Kernel函数@cuda.jitdef vector_add_kernel(a, b, c): """ 向量加法CUDA Kernel 参数: a: 输入数组A b: 输入数组B c: 输出数组C = A + B """ # 计算当前线程的全局索引 idx = cuda.grid(1) # 边界检查 if idx < c.size: c[idx] = a[idx] + b[idx]# 主机端调用代码def vector_add(a, b): """ 向量加法主机端函数 """ # 确保输入数组是连续的 a = np.ascontiguousarray(a) b = np.ascontiguousarray(b) # 创建输出数组 c = np.zeros_like(a) # 将数组传输到GPU内存 d_a = cuda.to_device(a) d_b = cuda.to_device(b) d_c = cuda.device_array_like(c) # 计算线程块和网格配置 threads_per_block = 256 blocks_per_grid = (c.size + (threads_per_block - 1)) // threads_per_block # 启动CUDA Kernel vector_add_kernel[blocks_per_grid, threads_per_block](d_a, d_b, d_c) # 将结果传输回主机 c = d_c.copy_to_host() return c# 性能测试if __name__ == "__main__": # 创建测试数据 size = 10_000_000 a = np.random.randn(size).astype(np.float32) b = np.random.randn(size).astype(np.float32) # GPU计算 c_gpu = vector_add(a, b) # NumPy计算(对比) c_numpy = a + b # 验证结果 print(f"最大误差: {np.max(np.abs(c_gpu - c_numpy))}") print(f"结果匹配: {np.allclose(c_gpu, c_numpy)}")
1.3 理解CUDA线程层次结构
在Numba CUDA中,我们使用cuda.grid()函数来计算线程的全局索引。这个函数封装了CUDA的线程层次结构概念:
@cuda.jitdef demonstrate_thread_hierarchy(output): """ 演示CUDA线程层次结构 """ # 获取线程和块的信息 tx = cuda.threadIdx.x # 线程在线程块中的索引 ty = cuda.threadIdx.y bx = cuda.blockIdx.x # 线程块在网格中的索引 by = cuda.blockIdx.y bw = cuda.blockDim.x # 线程块的维度 bh = cuda.blockDim.y # 计算全局索引 global_x = bx * bw + tx global_y = by * bh + ty # 计算扁平化索引 flat_idx = global_y * (cuda.gridDim.x * bw) + global_x if flat_idx < output.size: output[flat_idx] = flat_idx# 使用二维网格配置def test_2d_grid(size_x, size_y): output = np.zeros(size_x * size_y, dtype=np.int32) # 配置二维线程块和网格 threads_per_block = (16, 16) blocks_per_grid_x = (size_x + 15) // 16 blocks_per_grid_y = (size_y + 15) // 16 blocks_per_grid = (blocks_per_grid_x, blocks_per_grid_y) d_output = cuda.device_array_like(output) demonstrate_thread_hierarchy[blocks_per_grid, threads_per_block](d_output) return d_output.copy_to_host()
第二章:Python CUDA核心优化技术
2.1 共享内存优化
共享内存是CUDA中性能优化的关键资源。在Numba中,我们可以使用cuda.shared.array来声明共享内存:
@cuda.jitdef matrix_multiply_shared(a, b, c): """ 使用共享内存优化的矩阵乘法 """ # 定义块大小 TILE_SIZE = 16 # 声明共享内存 tile_a = cuda.shared.array((TILE_SIZE, TILE_SIZE), dtype=np.float32) tile_b = cuda.shared.array((TILE_SIZE, TILE_SIZE), dtype=np.float32) # 计算全局行列索引 row = cuda.blockIdx.y * TILE_SIZE + cuda.threadIdx.y col = cuda.blockIdx.x * TILE_SIZE + cuda.threadIdx.x # 累积结果 sum_val = 0.0 # 遍历所有块 for i in range((a.shape[1] + TILE_SIZE - 1) // TILE_SIZE): # 加载数据到共享内存 if row < a.shape[0] and i * TILE_SIZE + cuda.threadIdx.x < a.shape[1]: tile_a[cuda.threadIdx.y, cuda.threadIdx.x] = a[row, i * TILE_SIZE + cuda.threadIdx.x] else: tile_a[cuda.threadIdx.y, cuda.threadIdx.x] = 0.0 if i * TILE_SIZE + cuda.threadIdx.y < b.shape[0] and col < b.shape[1]: tile_b[cuda.threadIdx.y, cuda.threadIdx.x] = b[i * TILE_SIZE + cuda.threadIdx.y, col] else: tile_b[cuda.threadIdx.y, cuda.threadIdx.x] = 0.0 # 同步所有线程 cuda.syncthreads() # 计算部分乘积 for j in range(TILE_SIZE): sum_val += tile_a[cuda.threadIdx.y, j] * tile_b[j, cuda.threadIdx.x] # 再次同步 cuda.syncthreads() # 写入结果 if row < c.shape[0] and col < c.shape[1]: c[row, col] = sum_val# 性能测试def benchmark_matrix_multiplication(size): """ 矩阵乘法性能基准测试 """ import time # 创建随机矩阵 a = np.random.randn(size, size).astype(np.float32) b = np.random.randn(size, size).astype(np.float32) c = np.zeros((size, size), dtype=np.float32) # 准备GPU内存 d_a = cuda.to_device(a) d_b = cuda.to_device(b) d_c = cuda.device_array_like(c) # 配置执行参数 TILE_SIZE = 16 threads_per_block = (TILE_SIZE, TILE_SIZE) blocks_per_grid = ((size + TILE_SIZE - 1) // TILE_SIZE, (size + TILE_SIZE - 1) // TILE_SIZE) # 预热 matrix_multiply_shared[blocks_per_grid, threads_per_block](d_a, d_b, d_c) cuda.synchronize() # 测试GPU性能 start_time = time.time() for _ in range(10): matrix_multiply_shared[blocks_per_grid, threads_per_block](d_a, d_b, d_c) cuda.synchronize() gpu_time = (time.time() - start_time) / 10 # 测试NumPy性能 start_time = time.time() for _ in range(10): c_numpy = np.dot(a, b) numpy_time = (time.time() - start_time) / 10 print(f"矩阵大小: {size}x{size}") print(f"GPU时间: {gpu_time*1000:.2f} ms") print(f"NumPy时间: {numpy_time*1000:.2f} ms") print(f"加速比: {numpy_time/gpu_time:.2f}x")
2.2 Stream与异步执行
Numba CUDA支持CUDA Stream,允许我们实现异步执行和操作重叠:
def demonstrate_streams(data_chunks): """ 演示使用CUDA Stream进行异步操作 """ # 创建多个Stream num_streams = 4 streams = [cuda.stream() for _ in range(num_streams)] # 准备输出 results = [] # 定义处理函数 @cuda.jit def process_data(data, output): idx = cuda.grid(1) if idx < output.size: output[idx] = data[idx] * 2.0 + 1.0 # 在不同流中并发处理数据块 for i, chunk in enumerate(data_chunks): stream = streams[i % num_streams] # 在流中分配GPU内存 d_chunk = cuda.to_device(chunk, stream=stream) d_output = cuda.device_array_like(chunk, stream=stream) # 配置Kernel threads_per_block = 256 blocks_per_grid = (chunk.size + threads_per_block - 1) // threads_per_block # 在流中启动Kernel process_data[blocks_per_grid, threads_per_block, stream](d_chunk, d_output) # 异步复制结果 result = d_output.copy_to_host(stream=stream) results.append(result) # 同步所有流 for stream in streams: stream.synchronize() return results# 性能对比测试def benchmark_streams(): """ Stream性能基准测试 """ import time # 创建测试数据 chunk_size = 10_000_000 num_chunks = 8 data_chunks = [np.random.randn(chunk_size).astype(np.float32) for _ in range(num_chunks)] # 无Stream版本 start_time = time.time() for chunk in data_chunks: result = chunk * 2.0 + 1.0 serial_time = time.time() - start_time # 使用Stream版本 start_time = time.time() stream_results = demonstrate_streams(data_chunks) stream_time = time.time() - start_time print(f"串行处理时间: {serial_time:.4f} 秒") print(f"Stream处理时间: {stream_time:.4f} 秒") print(f"性能提升: {serial_time/stream_time:.2f}x")
2.3 原子操作与并行规约
原子操作是处理并行数据竞争的重要机制。Numba CUDA提供了多种原子操作函数:
@cuda.jitdef parallel_sum_with_atomic(data, result): """ 使用原子操作实现并行求和 """ idx = cuda.grid(1) if idx < data.size: # 原子加法 cuda.atomic.add(result, 0, data[idx])@cuda.jitdef parallel_histogram(data, histogram, bins, min_val, max_val): """ 并行直方图计算 """ idx = cuda.grid(1) if idx < data.size: # 计算bin索引 value = data[idx] if min_val <= value < max_val: bin_idx = int((value - min_val) / (max_val - min_val) * bins) bin_idx = min(bin_idx, bins - 1) # 原子递增 cuda.atomic.add(histogram, bin_idx, 1)def test_atomic_operations(): """ 测试原子操作 """ # 并行求和测试 data = np.random.randn(1_000_000).astype(np.float32) d_data = cuda.to_device(data) result = np.array([0.0], dtype=np.float32) d_result = cuda.to_device(result) threads_per_block = 256 blocks_per_grid = (data.size + threads_per_block - 1) // threads_per_block parallel_sum_with_atomic[blocks_per_grid, threads_per_block](d_data, d_result) cuda.synchronize() sum_result = d_result.copy_to_host()[0] expected_sum = np.sum(data) print(f"原子求和结果: {sum_result:.6f}") print(f"期望结果: {expected_sum:.6f}") print(f"误差: {abs(sum_result - expected_sum):.6e}") # 直方图测试 data = np.random.randn(100_000) * 10 + 50 # 正态分布,均值50,标准差10 histogram = np.zeros(50, dtype=np.int32) d_data = cuda.to_device(data) d_histogram = cuda.to_device(histogram) threads_per_block = 256 blocks_per_grid = (data.size + threads_per_block - 1) // threads_per_block parallel_histogram[blocks_per_grid, threads_per_block]( d_data, d_histogram, 50, 0.0, 100.0) cuda.synchronize() histogram = d_histogram.copy_to_host() print(f"直方图统计: {histogram[:10]}...") # 打印前10个bin
第三章:高级Python CUDA编程技术
3.1 动态并行与递归Kernel
虽然Numba CUDA对动态并行的支持有限,但我们可以通过其他方式实现类似功能:
@cuda.jit(device=True)def merge_device(arr, temp, left, mid, right): """ 设备端归并函数 """ i = left j = mid + 1 k = left while i <= mid and j <= right: if arr[i] <= arr[j]: temp[k] = arr[i] i += 1 else: temp[k] = arr[j] j += 1 k += 1 while i <= mid: temp[k] = arr[i] i += 1 k += 1 while j <= right: temp[k] = arr[j] j += 1 k += 1 for i in range(left, right + 1): arr[i] = temp[i]@cuda.jitdef merge_sort_device(arr, temp, left, right, depth, max_depth): """ 设备端归并排序 """ idx = cuda.grid(1) # 使用线程ID来决定处理的子数组 # 这里简化实现,实际应用中需要更复杂的调度策略 if idx == 0 and depth < max_depth: if left < right: mid = (left + right) // 2 # 递归调用(注意:这不是真正的动态并行) # 在实际应用中,需要使用其他策略 merge_sort_device(arr, temp, left, mid, depth + 1, max_depth) merge_sort_device(arr, temp, mid + 1, right, depth + 1, max_depth) merge_device(arr, temp, left, mid, right)def hybrid_merge_sort(arr): """ 混合归并排序:主机端递归 + 设备端归并 """ import math if len(arr) <= 1: return arr # 将数组复制到设备 d_arr = cuda.to_device(arr) d_temp = cuda.device_array_like(arr) # 在主机端进行递归分解,在设备端执行归并 def sort_range(left, right): if left >= right: return mid = (left + right) // 2 sort_range(left, mid) sort_range(mid + 1, right) # 在设备端执行归并 threads_per_block = min(256, right - left + 1) blocks_per_grid = 1 # 定义设备端归并Kernel @cuda.jit def merge_kernel(arr, temp, left, mid, right): idx = cuda.grid(1) global_idx = left + idx if global_idx > right: return i = left j = mid + 1 k = left # 找到global_idx位置应该放置的元素 count = 0 while i <= mid and j <= right: if arr[i] <= arr[j]: if count == idx: temp[global_idx] = arr[i] break i += 1 else: if count == idx: temp[global_idx] = arr[j] break j += 1 count += 1 if count == idx: # 已经找到位置 pass elif i <= mid: temp[global_idx] = arr[i + idx - count] else: temp[global_idx] = arr[j + idx - count] merge_kernel[blocks_per_grid, threads_per_block](d_arr, d_temp, left, mid, right) cuda.synchronize() # 复制回原数组 d_arr[left:right+1] = d_temp[left:right+1] sort_range(0, len(arr) - 1) return d_arr.copy_to_host()
3.2 CuPy集成与混合编程
CuPy是另一个强大的Python GPU加速库,与Numba可以很好地配合使用:
import cupy as cpdef demonstrate_cupy_numba_integration(): """ 演示CuPy与Numba的集成 """ # 使用CuPy进行数据传输和基础操作 size = 10_000_000 a_cpu = np.random.randn(size).astype(np.float32) b_cpu = np.random.randn(size).astype(np.float32) # 使用CuPy创建GPU数组 a_gpu = cp.asarray(a_cpu) b_gpu = cp.asarray(b_cpu) # CuPy基础操作(高度优化) c_gpu_cupy = a_gpu + b_gpu # Numba CUDA Kernel @cuda.jit def custom_kernel(a, b, c): idx = cuda.grid(1) if idx < c.size: # 自定义计算逻辑 c[idx] = a[idx] * b[idx] + (a[idx] + b[idx]) * 0.5 # 将CuPy数组转换为Numba可用的格式 d_a = cuda.as_cuda_array(a_gpu) d_b = cuda.as_cuda_array(b_gpu) d_c = cuda.device_array_like(d_a) threads_per_block = 256 blocks_per_grid = (size + threads_per_block - 1) // threads_per_block custom_kernel[blocks_per_grid, threads_per_block](d_a, d_b, d_c) cuda.synchronize() # 将结果转换回CuPy数组 c_gpu_numba = cp.asarray(d_c) # 性能对比 import time # CuPy性能 start = time.time() for _ in range(100): c_temp = a_gpu + b_gpu cp.cuda.Stream.null.synchronize() cupy_time = time.time() - start # Numba性能 start = time.time() for _ in range(100): custom_kernel[blocks_per_grid, threads_per_block](d_a, d_b, d_c) cuda.synchronize() numba_time = time.time() - start print(f"CuPy计算时间: {cupy_time*1000:.2f} ms") print(f"Numba计算时间: {numba_time*1000:.2f} ms") return c_gpu_cupy, c_gpu_numbadef advanced_cupy_operations(): """ 高级CuPy操作示例 """ # 创建GPU数组 x = cp.random.randn(1000, 1000, dtype=np.float32) # 矩阵运算 result = cp.dot(x, x.T) # FFT fft_result = cp.fft.fft2(x) # 线性代数 eigenvalues, eigenvectors = cp.linalg.eigh(result) # 广播和通用函数 y = cp.sin(x) * cp.exp(-x**2) # 归约操作 mean_val = cp.mean(x) std_val = cp.std(x) print(f"矩阵形状: {result.shape}") print(f"特征值数量: {len(eigenvalues)}") print(f"均值: {mean_val:.4f}, 标准差: {std_val:.4f}")
3.3 性能分析与优化
有效的性能分析是优化工作的基础。Numba提供了多种性能分析工具:
def performance_analysis_demo(): """ 性能分析演示 """ from numba import cuda # 创建测试数据 size = 10_000_000 data = np.random.randn(size).astype(np.float32) # 定义待分析的Kernel @cuda.jit def analyze_kernel(data, output): idx = cuda.grid(1) if idx < output.size: # 复杂计算逻辑 temp = data[idx] for i in range(10): temp = temp * 1.1 + 0.5 if temp > 100: temp = temp / 2.0 output[idx] = temp d_data = cuda.to_device(data) d_output = cuda.device_array_like(data) threads_per_block = 256 blocks_per_grid = (size + threads_per_block - 1) // threads_per_block # 使用CUDA事件进行精确计时 start = cuda.event() end = cuda.event() start.record() analyze_kernel[blocks_per_grid, threads_per_block](d_data, d_output) end.record() end.synchronize() elapsed_time = cuda.event_elapsed_time(start, end) print(f"Kernel执行时间: {elapsed_time:.3f} ms") # 计算性能指标 num_operations = size * 10 # 每个元素10次操作 gflops = (num_operations / elapsed_time / 1e6) print(f"性能: {gflops:.2f} GFLOPS") # 内存带宽分析 bytes_transferred = data.nbytes * 3 # 读输入,写输出,读输入 bandwidth = (bytes_transferred / elapsed_time / 1e6) print(f"内存带宽: {bandwidth:.2f} GB/s")def optimization_checklist(): """ CUDA优化检查清单 """ print("CUDA性能优化检查清单:") print("=" * 50) checklist = { "内存合并访问": "确保连续线程访问连续内存", "共享内存使用": "利用共享内存减少全局内存访问", "避免分支分歧": "最小化Warp内的条件分支", "合适的块大小": "选择32的倍数作为块大小", "足够的并行度": "确保有足够的块来隐藏延迟", "内存传输最小化": "减少主机与设备间的数据传输", "使用Stream": "实现计算和传输的重叠", "原子操作优化": "减少原子操作的使用频率", "数据类型选择": "使用适当的数据类型(如float32)", "编译器优化": "使用适当的编译器优化标志" } for i, (item, description) in enumerate(checklist.items(), 1): print(f"{i}. {item}: {description}")
第四章:实战应用案例
4.1 图像处理流水线优化
import cv2from numba import cudaimport numpy as npclass GPUImageProcessor: """ GPU图像处理器 """ def __init__(self): self.stream = cuda.stream() @staticmethod @cuda.jit def rgb_to_grayscale_kernel(rgb, gray): """ RGB转灰度Kernel """ x, y = cuda.grid(2) if x < gray.shape[1] and y < gray.shape[0]: # 使用标准灰度转换公式 gray[y, x] = (0.299 * rgb[y, x, 0] + 0.587 * rgb[y, x, 1] + 0.114 * rgb[y, x, 2]) @staticmethod @cuda.jit def gaussian_blur_kernel(input_img, output_img, kernel, radius): """ 高斯模糊Kernel """ x, y = cuda.grid(2) height, width = input_img.shape if x < width and y < height: sum_val = 0.0 kernel_sum = 0.0 # 应用卷积核 for ky in range(-radius, radius + 1): for kx in range(-radius, radius + 1): px = min(max(x + kx, 0), width - 1) py = min(max(y + ky, 0), height - 1) k_idx_x = kx + radius k_idx_y = ky + radius k_val = kernel[k_idx_y, k_idx_x] sum_val += input_img[py, px] * k_val kernel_sum += k_val output_img[y, x] = sum_val / kernel_sum @staticmethod @cuda.jit def sobel_edge_detection_kernel(input_img, output_img): """ Sobel边缘检测Kernel """ x, y = cuda.grid(2) height, width = input_img.shape if x > 0 and x < width - 1 and y > 0 and y < height - 1: # Sobel算子 gx = (-1 * input_img[y-1, x-1] + 1 * input_img[y-1, x+1] + -2 * input_img[y, x-1] + 2 * input_img[y, x+1] + -1 * input_img[y+1, x-1] + 1 * input_img[y+1, x+1]) gy = (-1 * input_img[y-1, x-1] + -2 * input_img[y-1, x] + -1 * input_img[y-1, x+1] + 1 * input_img[y+1, x-1] + 2 * input_img[y+1, x] + 1 * input_img[y+1, x+1]) output_img[y, x] = np.sqrt(gx**2 + gy**2) def process_image_pipeline(self, image_path): """ 完整的图像处理流水线 """ # 读取图像 image = cv2.imread(image_path) if image is None: raise ValueError("无法读取图像") # 转换为float32 image = image.astype(np.float32) # 配置线程块和网格 threads_per_block = (16, 16) blocks_per_grid = ((image.shape[1] + 15) // 16, (image.shape[0] + 15) // 16) # 步骤1: RGB转灰度 gray = np.zeros((image.shape[0], image.shape[1]), dtype=np.float32) d_image = cuda.to_device(image, stream=self.stream) d_gray = cuda.device_array_like(gray, stream=self.stream) self.rgb_to_grayscale_kernel[blocks_per_grid, threads_per_block, self.stream]( d_image, d_gray) # 步骤2: 高斯模糊 # 创建高斯核 radius = 1 kernel_size = 2 * radius + 1 kernel = np.zeros((kernel_size, kernel_size), dtype=np.float32) sigma = 1.0 for y in range(kernel_size): for x in range(kernel_size): dx = x - radius dy = y - radius kernel[y, x] = np.exp(-(dx**2 + dy**2) / (2 * sigma**2)) kernel = kernel / np.sum(kernel) d_blurred = cuda.device_array_like(d_gray, stream=self.stream) d_kernel = cuda.to_device(kernel, stream=self.stream) self.gaussian_blur_kernel[blocks_per_grid, threads_per_block, self.stream]( d_gray, d_blurred, d_kernel, radius) # 步骤3: 边缘检测 d_edges = cuda.device_array_like(d_blurred, stream=self.stream) self.sobel_edge_detection_kernel[blocks_per_grid, threads_per_block, self.stream]( d_blurred, d_edges) # 获取结果 edges = d_edges.copy_to_host(stream=self.stream) self.stream.synchronize() # 归一化到0-255范围 edges = np.clip(edges, 0, 255).astype(np.uint8) return edges# 性能测试def benchmark_image_processing(image_path): """ 图像处理性能基准测试 """ import time processor = GPUImageProcessor() # GPU版本 start_time = time.time() gpu_result = processor.process_image_pipeline(image_path) gpu_time = time.time() - start_time # CPU版本(使用OpenCV) image = cv2.imread(image_path) gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) blurred = cv2.GaussianBlur(gray, (3, 3), 1.0) cpu_edges = cv2.Sobel(blurred, cv2.CV_64F, 1, 1, ksize=3) cpu_edges = np.abs(cpu_edges).astype(np.uint8) cpu_time = time.time() - start_time - gpu_time # 减去GPU时间 print(f"GPU处理时间: {gpu_time*1000:.2f} ms") print(f"CPU处理时间: {cpu_time*1000:.2f} ms") print(f"加速比: {cpu_time/gpu_time:.2f}x") return gpu_result, cpu_edges
4.2 蒙特卡洛模拟加速
@cuda.jitdef monte_carlo_pi_kernel(samples, results): """ 蒙特卡洛方法计算π的CUDA Kernel """ idx = cuda.grid(1) if idx < results.size: count = 0 # 每个线程处理多个样本 samples_per_thread = samples // results.size # 使用简单的伪随机数生成器 seed = idx * 12345 + 67890 for i in range(samples_per_thread): # 线性同余生成器 seed = (1664525 * seed + 1013904223) & 0xFFFFFFFF x = (seed & 0xFFFF) / 65535.0 seed = (1664525 * seed + 1013904223) & 0xFFFFFFFF y = (seed & 0xFFFF) / 65535.0 # 检查是否在单位圆内 if x*x + y*y <= 1.0: count += 1 results[idx] = countdef monte_carlo_pi_estimation(total_samples, num_threads=1024): """ 使用蒙特卡洛方法估算π值 """ import time # 分配结果数组 results = np.zeros(num_threads, dtype=np.int32) d_results = cuda.to_device(results) # 配置Kernel threads_per_block = 256 blocks_per_grid = (num_threads + threads_per_block - 1) // threads_per_block # GPU计算 start_time = time.time() monte_carlo_pi_kernel[blocks_per_grid, threads_per_block]( total_samples, d_results) cuda.synchronize() gpu_time = time.time() - start_time # 获取结果 results = d_results.copy_to_host() total_inside = np.sum(results) # 计算π值 pi_estimate = 4.0 * total_inside / total_samples error = abs(pi_estimate - np.pi) print(f"总样本数: {total_samples:,}") print(f"GPU计算时间: {gpu_time*1000:.2f} ms") print(f"π估算值: {pi_estimate:.10f}") print(f"π真实值: {np.pi:.10f}") print(f"误差: {error:.2e}") print(f"相对误差: {error/np.pi*100:.4f}%") return pi_estimatedef option_pricing_monte_carlo(spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations): """ 使用蒙特卡洛方法进行欧式期权定价 """ @cuda.jit def option_pricing_kernel(spot, strike, rate, vol, t, num_paths, results): idx = cuda.grid(1) if idx < results.size: paths_per_thread = num_paths // results.size # 预计算常数 drift = (rate - 0.5 * vol * vol) * t diffusion = vol * np.sqrt(t) total_payoff = 0.0 for i in range(paths_per_thread): # 生成标准正态随机数(Box-Muller变换) seed = idx * paths_per_thread + i + 12345 u1 = ((seed * 1664525 + 1013904223) & 0xFFFFFFFF) / 4294967295.0 u2 = ((seed * 1103515245 + 12345) & 0xFFFFFFFF) / 4294967295.0 z0 = np.sqrt(-2.0 * np.log(u1)) * np.cos(2.0 * np.pi * u2) # 几何布朗运动 terminal_price = spot * np.exp(drift + diffusion * z0) # 计算收益 payoff = max(terminal_price - strike, 0.0) total_payoff += payoff results[idx] = total_payoff num_threads = 1024 results = np.zeros(num_threads, dtype=np.float64) d_results = cuda.to_device(results) threads_per_block = 256 blocks_per_grid = (num_threads + threads_per_block - 1) // threads_per_block option_pricing_kernel[blocks_per_grid, threads_per_block]( spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations, d_results) cuda.synchronize() results = d_results.copy_to_host() # 计算期权价格 avg_payoff = np.sum(results) / num_simulations option_price = np.exp(-risk_free_rate * time_to_maturity) * avg_payoff return option_price# 测试期权定价def test_option_pricing(): """ 测试欧式看涨期权定价 """ spot_price = 100.0 # 标的资产当前价格 strike_price = 105.0 # 执行价格 risk_free_rate = 0.05 # 无风险利率 volatility = 0.2 # 波动率 time_to_maturity = 1.0 # 到期时间(年) num_simulations = 10_000_000 # 模拟路径数 import time start_time = time.time() option_price = option_pricing_monte_carlo( spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations ) gpu_time = time.time() - start_time print(f"欧式看涨期权定价结果:") print(f"标的资产价格: ${spot_price:.2f}") print(f"执行价格: ${strike_price:.2f}") print(f"无风险利率: {risk_free_rate*100:.1f}%") print(f"波动率: {volatility*100:.1f}%") print(f"到期时间: {time_to_maturity:.1f}年") print(f"模拟路径数: {num_simulations:,}") print(f"期权价格: ${option_price:.4f}") print(f"计算时间: {gpu_time*1000:.2f} ms")
4.3 深度学习推理加速
@cuda.jitdef monte_carlo_pi_kernel(samples, results): """ 蒙特卡洛方法计算π的CUDA Kernel """ idx = cuda.grid(1) if idx < results.size: count = 0 # 每个线程处理多个样本 samples_per_thread = samples // results.size # 使用简单的伪随机数生成器 seed = idx * 12345 + 67890 for i in range(samples_per_thread): # 线性同余生成器 seed = (1664525 * seed + 1013904223) & 0xFFFFFFFF x = (seed & 0xFFFF) / 65535.0 seed = (1664525 * seed + 1013904223) & 0xFFFFFFFF y = (seed & 0xFFFF) / 65535.0 # 检查是否在单位圆内 if x*x + y*y <= 1.0: count += 1 results[idx] = countdef monte_carlo_pi_estimation(total_samples, num_threads=1024): """ 使用蒙特卡洛方法估算π值 """ import time # 分配结果数组 results = np.zeros(num_threads, dtype=np.int32) d_results = cuda.to_device(results) # 配置Kernel threads_per_block = 256 blocks_per_grid = (num_threads + threads_per_block - 1) // threads_per_block # GPU计算 start_time = time.time() monte_carlo_pi_kernel[blocks_per_grid, threads_per_block]( total_samples, d_results) cuda.synchronize() gpu_time = time.time() - start_time # 获取结果 results = d_results.copy_to_host() total_inside = np.sum(results) # 计算π值 pi_estimate = 4.0 * total_inside / total_samples error = abs(pi_estimate - np.pi) print(f"总样本数: {total_samples:,}") print(f"GPU计算时间: {gpu_time*1000:.2f} ms") print(f"π估算值: {pi_estimate:.10f}") print(f"π真实值: {np.pi:.10f}") print(f"误差: {error:.2e}") print(f"相对误差: {error/np.pi*100:.4f}%") return pi_estimatedef option_pricing_monte_carlo(spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations): """ 使用蒙特卡洛方法进行欧式期权定价 """ @cuda.jit def option_pricing_kernel(spot, strike, rate, vol, t, num_paths, results): idx = cuda.grid(1) if idx < results.size: paths_per_thread = num_paths // results.size # 预计算常数 drift = (rate - 0.5 * vol * vol) * t diffusion = vol * np.sqrt(t) total_payoff = 0.0 for i in range(paths_per_thread): # 生成标准正态随机数(Box-Muller变换) seed = idx * paths_per_thread + i + 12345 u1 = ((seed * 1664525 + 1013904223) & 0xFFFFFFFF) / 4294967295.0 u2 = ((seed * 1103515245 + 12345) & 0xFFFFFFFF) / 4294967295.0 z0 = np.sqrt(-2.0 * np.log(u1)) * np.cos(2.0 * np.pi * u2) # 几何布朗运动 terminal_price = spot * np.exp(drift + diffusion * z0) # 计算收益 payoff = max(terminal_price - strike, 0.0) total_payoff += payoff results[idx] = total_payoff num_threads = 1024 results = np.zeros(num_threads, dtype=np.float64) d_results = cuda.to_device(results) threads_per_block = 256 blocks_per_grid = (num_threads + threads_per_block - 1) // threads_per_block option_pricing_kernel[blocks_per_grid, threads_per_block]( spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations, d_results) cuda.synchronize() results = d_results.copy_to_host() # 计算期权价格 avg_payoff = np.sum(results) / num_simulations option_price = np.exp(-risk_free_rate * time_to_maturity) * avg_payoff return option_price# 测试期权定价def test_option_pricing(): """ 测试欧式看涨期权定价 """ spot_price = 100.0 # 标的资产当前价格 strike_price = 105.0 # 执行价格 risk_free_rate = 0.05 # 无风险利率 volatility = 0.2 # 波动率 time_to_maturity = 1.0 # 到期时间(年) num_simulations = 10_000_000 # 模拟路径数 import time start_time = time.time() option_price = option_pricing_monte_carlo( spot_price, strike_price, risk_free_rate, volatility, time_to_maturity, num_simulations ) gpu_time = time.time() - start_time print(f"欧式看涨期权定价结果:") print(f"标的资产价格: ${spot_price:.2f}") print(f"执行价格: ${strike_price:.2f}") print(f"无风险利率: {risk_free_rate*100:.1f}%") print(f"波动率: {volatility*100:.1f}%") print(f"到期时间: {time_to_maturity:.1f}年") print(f"模拟路径数: {num_simulations:,}") print(f"期权价格: ${option_price:.4f}") print(f"计算时间: {gpu_time*1000:.2f} ms")
总结
Python CUDA编程为开发者提供了在保持Python语言优势的同时,充分利用GPU并行计算能力的强大途径。通过本文的深度学习和实践案例,我们掌握了:
核心技术要点
Numba CUDA基础:
- 使用
@cuda.jit装饰器编写CUDA Kernel
性能优化策略:
高级编程技巧:
实战应用经验:
最佳实践建议
性能优先原则:
开发工作流:
工具链选择:
- 复杂深度学习: 考虑PyTorch/TensorFlow
持续学习:
随着GPU硬件的不断发展和Python生态的持续完善,Python CUDA编程将在科学计算、深度学习、大数据分析等领域发挥越来越重要的作用。掌握这些技术,将让您在高性能计算领域具备更强的竞争力。
延伸学习资源:
官方文档:
- Numba官方文档: https://numba.readthedocs.io/
- CuPy官方文档: https://docs.cupy.dev/
- NVIDIA CUDA文档: https://docs.nvidia.com/cuda/
推荐书籍:
- "Programming Massively Parallel Processors" - Hwu & Kirk
- "Python High Performance Programming" - Gabriele Lanaro
开源项目:
社区资源:
