Linux 5.7.8 内核邻居子系统设计与实现

一、源码文件总览

二、核心数据结构

2.1 struct neigh_hash_table

文件：include/net/neighbour.h，约第 104 行

#define NEIGH_NUM_HASH_RND  4structneigh_hash_table {structneighbour __rcu **hash_buckets;// 哈希桶数组unsignedint        hash_shift;            // 桶数 = 1 << hash_shift    __u32               hash_rnd[NEIGH_NUM_HASH_RND]; // 4个随机种子structrcu_headrcu;// RCU 延迟释放};

要点：

• 哈希桶通过 rcu_dereference_bh() 读取，用 rcu_assign_pointer() 写入，读端完全无锁。
• hash_rnd[4] 在 neigh_hash_alloc() 时随机生成，每次扩容重新生成，防止碰撞攻击。
• 扩容时分配新 neigh_hash_table，通过 rcu_assign_pointer(tbl->nht, new_nht) 原子切换，旧表通过 call_rcu() 延迟释放。

2.2 struct neigh_table

文件：include/net/neighbour.h，约第 114 行

structneigh_table {int             family;unsignedint    entry_size;unsignedint    key_len;    __be16          protocol;/* 协议无关抽象：函数指针 */    __u32           (*hash)(constvoid *pkey,const struct net_device *dev,                            __u32 *hash_rnd);bool            (*key_eq)(const struct neighbour *, constvoid *pkey);int             (*constructor)(struct neighbour *);int             (*pconstructor)(struct pneigh_entry *);void            (*pdestructor)(struct pneigh_entry *);void            (*proxy_redo)(struct sk_buff *skb);bool            (*allow_add)(const struct net_device *dev,                                struct netlink_ext_ack *extack);char            *id;/* 参数 — 注意：parms 是内嵌结构体，不是指针！ */structneigh_parmsparms;// 默认参数structlist_headparms_list;/* GC 阈值 */int             gc_interval;int             gc_thresh1;int             gc_thresh2;int             gc_thresh3;unsignedlong       last_flush;structdelayed_workgc_work;// 注意：是 delayed_work，不是 timer_liststructtimer_listproxy_timer;structsk_buff_headproxy_queue;atomic_t        entries;atomic_t        gc_entries;     // GC 链表上的表项数structlist_headgc_list;// GC 链表头（FIFO）rwlock_t        lock;structneigh_statistics __percpu *stats;structneigh_hash_table __rcu *nht;// RCU 保护的哈希表指针structpneigh_entry **phash_buckets;};

关键设计：

2.3 struct neigh_parms

文件：include/net/neighbour.h，约第 48 行

structneigh_parms {possible_net_t  net;structnet_device *dev;structlist_headlist;int  (*neigh_setup)(struct neighbour *);structneigh_table *tbl;void   *sysctl_table;int     dead;refcount_t refcnt;structrcu_headrcu_head;int  reachable_time;int  data[NEIGH_VAR_DATA_MAX];    DECLARE_BITMAP(data_state, NEIGH_VAR_DATA_MAX);};

参数通过 data[] 数组 + 枚举索引访问：

enum {    NEIGH_VAR_MCAST_PROBES,    NEIGH_VAR_UCAST_PROBES,    NEIGH_VAR_APP_PROBES,    NEIGH_VAR_MCAST_REPROBES,    NEIGH_VAR_RETRANS_TIME,    NEIGH_VAR_BASE_REACHABLE_TIME,    NEIGH_VAR_DELAY_PROBE_TIME,    NEIGH_VAR_GC_STALETIME,    NEIGH_VAR_QUEUE_LEN_BYTES,    NEIGH_VAR_PROXY_QLEN,    NEIGH_VAR_ANYCAST_DELAY,    NEIGH_VAR_PROXY_DELAY,    NEIGH_VAR_LOCKTIME,/* "default" only: */    NEIGH_VAR_GC_INTERVAL,    NEIGH_VAR_GC_THRESH1,    NEIGH_VAR_GC_THRESH2,    NEIGH_VAR_GC_THRESH3,    NEIGH_VAR_MAX};

用 NEIGH_VAR(p, attr) 宏访问，用 data_state bitmap 追踪哪些参数被用户修改过。

2.4 struct neighbour

文件：include/net/neighbour.h，约第 77 行

structneighbour {structneighbour __rcu *next;// 哈希链：RCU 单链表（不是 hlist!）structneigh_table   *tbl;structneigh_parms   *parms;unsignedlong        confirmed;     // 最后一次确认可达的时间unsignedlong        updated;      // 最后一次更新时间rwlock_t            lock;          // 保护 ha / nud_state / timer / arp_queuerefcount_t          refcnt;unsignedint        arp_queue_len_bytes;structsk_buff_headarp_queue;structtimer_listtimer;unsignedlong        used;atomic_t            probes;    __u8    flags;    __u8    nud_state;    __u8    type;    __u8    dead;                    // 1 = 已从哈希表摘除，等待释放    u8      protocol;seqlock_t           ha_lock;      // 顺序锁，保护 MAC 地址unsignedchar ha[ALIGN(MAX_ADDR_LEN, sizeof(unsignedlong))]                  __aligned(8);      // MAC 地址structhh_cachehh;// 硬件头缓存int (*output)(struct neighbour *, struct sk_buff *);conststructneigh_ops *ops;structlist_headgc_list;// 挂在 tbl->gc_list 上structrcu_headrcu;structnet_device   *dev;    u8      primary_key[0];          // 变长数组：IP 地址} __randomize_layout;

内存布局：

分配大小 = tbl->entry_size + dev->neigh_priv_len┌──────────────────────────────────────┐│ struct neighbour (固定部分)           │├──────────────────────────────────────┤│ primary_key[0] → key_len 字节的 IP  │├──────────────────────────────────────┤│ 协议私有数据 (entry_size - sizeof - key_len) │├──────────────────────────────────────┤│ 设备私有数据 (dev->neigh_priv_len)    │└──────────────────────────────────────┘

关键字段说明：

2.5 struct neigh_ops

文件：include/net/neighbour.h，约第 95 行

structneigh_ops {int     family;void    (*solicit)(struct neighbour *, struct sk_buff *);void    (*error_report)(struct neighbour *, struct sk_buff *);int     (*output)(struct neighbour *, struct sk_buff *);int     (*connected_output)(struct neighbour *, struct sk_buff *);};

IPv4 ARP 注册的三个实例（net/ipv4/arp.c）：

三、邻居状态机

3.1 NUD 状态定义

文件：include/uapi/linux/neighbour.h

#define NUD_INCOMPLETE  0x01#define NUD_REACHABLE   0x02#define NUD_STALE       0x04#define NUD_DELAY       0x08#define NUD_PROBE       0x10#define NUD_FAILED      0x20#define NUD_NOARP       0x40#define NUD_PERMANENT   0x80

辅助宏（include/net/neighbour.h 第 23 行）：

#define NUD_IN_TIMER   (NUD_INCOMPLETE|NUD_REACHABLE|NUD_DELAY|NUD_PROBE)#define NUD_VALID      (NUD_PERMANENT|NUD_NOARP|NUD_REACHABLE|NUD_PROBE|NUD_STALE|NUD_DELAY)#define NUD_CONNECTED  (NUD_PERMANENT|NUD_NOARP|NUD_REACHABLE)

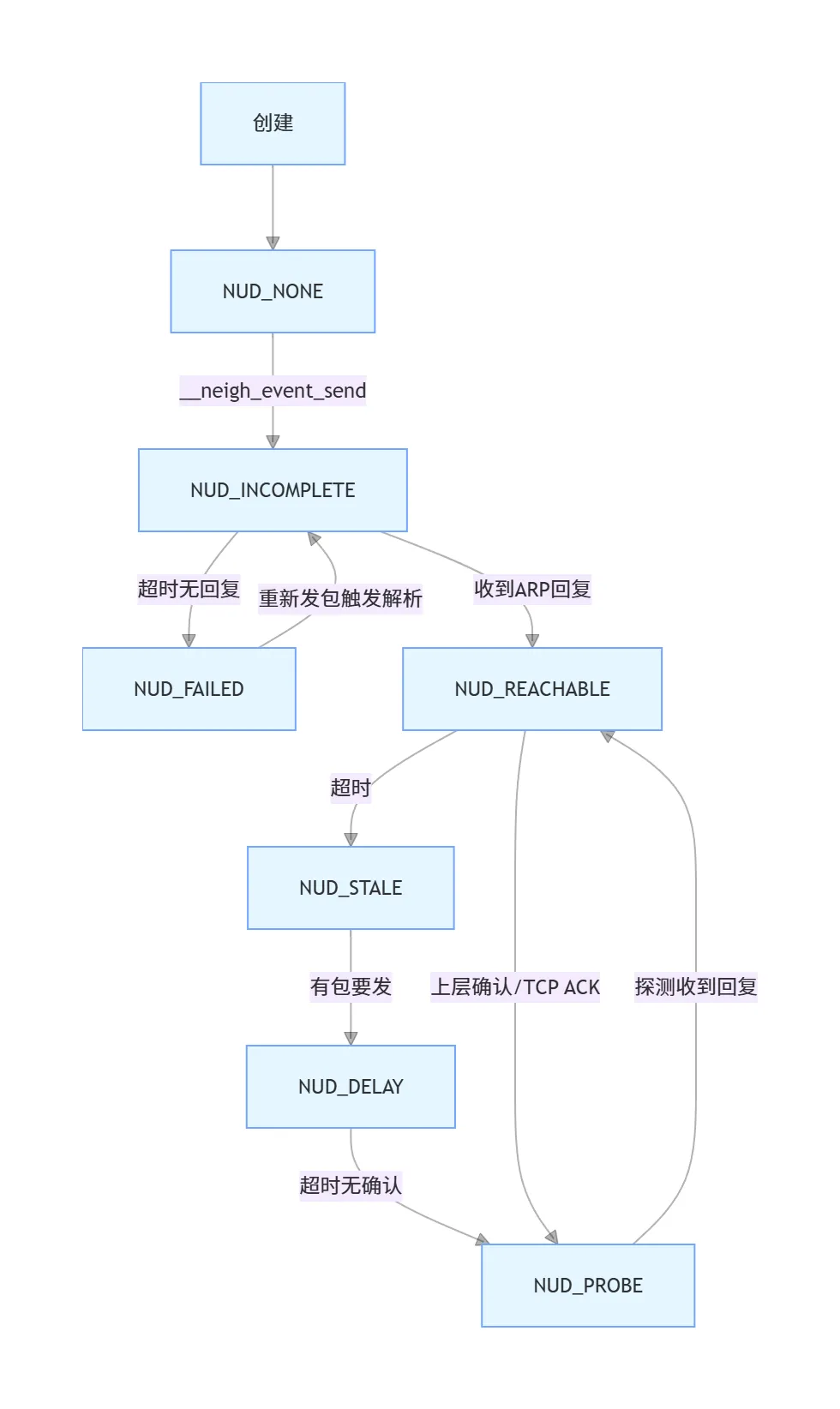

3.2 状态转换图

设计精髓（源码注释原文）：

"It corresponds to default IPv6 settings and is not overridable, because it is really reasonable choice." — neigh_rand_reach_time()，随机化 reachable_time，防止同步

四、核心函数详解

4.1 neigh_event_send() — 内联入口

文件：include/net/neighbour.h，约第 297 行

staticinlineintneigh_event_send(struct neighbour *neigh, struct sk_buff *skb){unsignedlong now = jiffies;if (READ_ONCE(neigh->used) != now)        WRITE_ONCE(neigh->used, now);if (!(neigh->nud_state & (NUD_CONNECTED|NUD_DELAY|NUD_PROBE)))return __neigh_event_send(neigh, skb);return0;}

逻辑： 快速路径检查。如果已经处于 CONNECTED / DELAY / PROBE 状态，直接返回 0（不需要做任何事）。否则调用完整的 __neigh_event_send()。

4.2 __neigh_event_send() — 触发解析

文件：net/core/neighbour.c，第 1105 行

int __neigh_event_send(struct neighbour *neigh, struct sk_buff *skb){int rc;bool immediate_probe = false;    write_lock_bh(&neigh->lock);    rc = 0;if (neigh->nud_state & (NUD_CONNECTED | NUD_DELAY | NUD_PROBE))goto out_unlock_bh;if (neigh->dead)goto out_dead;if (!(neigh->nud_state & (NUD_STALE | NUD_INCOMPLETE))) {/* 从 NUD_NONE 进入，需要启动解析 */if (NEIGH_VAR(neigh->parms, MCAST_PROBES) +            NEIGH_VAR(neigh->parms, APP_PROBES)) {unsignedlong next, now = jiffies;            atomic_set(&neigh->probes,                       NEIGH_VAR(neigh->parms, UCAST_PROBES));            neigh_del_timer(neigh);            neigh->nud_state  = NUD_INCOMPLETE;            neigh->updated    = now;            next = now + max(NEIGH_VAR(neigh->parms, RETRANS_TIME),                              HZ/100);            neigh_add_timer(neigh, next);            immediate_probe = true;        } else {            neigh->nud_state = NUD_FAILED;            neigh->updated    = jiffies;            write_unlock_bh(&neigh->lock);            kfree_skb(skb);return1;        }    } elseif (neigh->nud_state & NUD_STALE) {/* STALE → DELAY：先等上层确认，不立即发 ARP */        neigh_dbg(2, "neigh %p is delayed\n", neigh);        neigh_del_timer(neigh);        neigh->nud_state = NUD_DELAY;        neigh->updated    = jiffies;        neigh_add_timer(neigh, jiffies +                NEIGH_VAR(neigh->parms, DELAY_PROBE_TIME));    }/* NUD_INCOMPLETE 状态下，报文入队 */if (neigh->nud_state == NUD_INCOMPLETE) {if (skb) {while (neigh->arp_queue_len_bytes + skb->truesize >                   NEIGH_VAR(neigh->parms, QUEUE_LEN_BYTES)) {structsk_buff *buff;                buff = __skb_dequeue(&neigh->arp_queue);if (!buff)break;                neigh->arp_queue_len_bytes -= buff->truesize;                kfree_skb(buff);                NEIGH_CACHE_STAT_INC(neigh->tbl, unres_discards);            }            skb_dst_force(skb);            __skb_queue_tail(&neigh->arp_queue, skb);            neigh->arp_queue_len_bytes += skb->truesize;        }        rc = 1;    }out_unlock_bh:if (immediate_probe)        neigh_probe(neigh);else        write_unlock(&neigh->lock);    local_bh_enable();    trace_neigh_event_send_done(neigh, rc);return rc;out_dead:if (neigh->nud_state & NUD_STALE)goto out_unlock_bh;    write_unlock_bh(&neigh->lock);    kfree_skb(skb);    trace_neigh_event_send_dead(neigh, 1);return1;}EXPORT_SYMBOL(__neigh_event_send);

要点：

1. immediate_probe：当从 NONE 进入 INCOMPLETE 时，设置此标志，解锁后直接调用 neigh_probe() 发送第一个 ARP 探测报文（避免持锁发送）。
2. write_lock_bh(&neigh->lock) 然后 write_unlock(&neigh->lock) + local_bh_enable() — 注意这里手动管理 BH 开关，是内核内部模式。
3. QUEUE_LEN_BYTES 控制排队总字节数（而非报文个数），防止内存耗尽。

4.3 neigh_timer_handler() — 定时器回调

文件：net/core/neighbour.c，第 1016 行

staticvoidneigh_timer_handler(struct timer_list *t){unsignedlong now, next;structneighbour *neigh = from_timer(neigh, t, timer);unsignedint state;int notify = 0;    write_lock(&neigh->lock);    state = neigh->nud_state;    now   = jiffies;    next  = now + HZ;if (!(state & NUD_IN_TIMER))goto out;if (state & NUD_REACHABLE) {if (time_before_eq(now,                neigh->confirmed + neigh->parms->reachable_time)) {/* 还没超时，重新设置定时器 */            neigh_dbg(2, "neigh %p is still alive\n", neigh);            next = neigh->confirmed + neigh->parms->reachable_time;        } elseif (time_before_eq(now,                    neigh->used +                    NEIGH_VAR(neigh->parms, DELAY_PROBE_TIME))) {/* 仍在使用期内，进入 DELAY 等上层确认 */            neigh_dbg(2, "neigh %p is delayed\n", neigh);            neigh->nud_state = NUD_DELAY;            neigh->updated    = jiffies;            neigh_suspect(neigh);            next = now + NEIGH_VAR(neigh->parms, DELAY_PROBE_TIME);        } else {/* 已不使用，进入 STALE */            neigh_dbg(2, "neigh %p is suspected\n", neigh);            neigh->nud_state = NUD_STALE;            neigh->updated    = jiffies;            neigh_suspect(neigh);            notify = 1;        }    } elseif (state & NUD_DELAY) {if (time_before_eq(now,                neigh->confirmed +                NEIGH_VAR(neigh->parms, DELAY_PROBE_TIME))) {/* 上层已确认，回到 REACHABLE */            neigh_dbg(2, "neigh %p is now reachable\n", neigh);            neigh->nud_state = NUD_REACHABLE;            neigh->updated    = jiffies;            neigh_connect(neigh);            notify = 1;            next = neigh->confirmed + neigh->parms->reachable_time;        } else {/* 超时未确认，进入 PROBE */            neigh_dbg(2, "neigh %p is probed\n", neigh);            neigh->nud_state = NUD_PROBE;            neigh->updated    = jiffies;            atomic_set(&neigh->probes, 0);            notify = 1;            next = now + max(NEIGH_VAR(neigh->parms, RETRANS_TIME),                              HZ/100);        }    } else {/* NUD_PROBE | NUD_INCOMPLETE */        next = now + max(NEIGH_VAR(neigh->parms, RETRANS_TIME),                          HZ/100);    }/* 探测次数用尽 → FAILED */if ((neigh->nud_state & (NUD_INCOMPLETE | NUD_PROBE)) &&        atomic_read(&neigh->probes) >= neigh_max_probes(neigh)) {        neigh->nud_state = NUD_FAILED;        notify = 1;        neigh_invalidate(neigh);goto out;    }if (neigh->nud_state & NUD_IN_TIMER) {if (time_before(next, jiffies + HZ/100))            next = jiffies + HZ/100;if (!mod_timer(&neigh->timer, next))            neigh_hold(neigh);    }if (neigh->nud_state & (NUD_INCOMPLETE | NUD_PROBE)) {        neigh_probe(neigh);    } else {out:        write_unlock(&neigh->lock);    }if (notify)        neigh_update_notify(neigh, 0);    trace_neigh_timer_handler(neigh, 0);    neigh_release(neigh);}

要点：

1. from_timer(neigh, t, timer) — 从 timer_list 指针反查 neighbour 结构体地址（container_of 宏）。
2. REACHABLE 超时后不是直接进 PROBE，而是先判断是否在 used + delay_probe_time 内：如果是，进 DELAY（等上层确认）；否则直接进 STALE。
3. neigh_max_probes(neigh) 返回 app_probes + ucast_probes + mcast_probes 之和。
4. 定时器在 neigh_add_timer() 时增加引用计数，neigh_timer_handler 结束时 neigh_release()，防止定时器运行期间邻居项被释放。

4.4 __neigh_update() — 更新邻居状态

文件：net/core/neighbour.c，第 1227 行

neigh_update() 是它的简化包装（第 1411 行），只多传一个 NULL 作为 extack 参数。

staticint __neigh_update(struct neighbour *neigh, const u8 *lladdr,                          u8 new, u32 flags, u32 nlmsg_pid,                          struct netlink_ext_ack *extack){    u8 old;int err;int notify = 0;structnet_device *dev;int update_isrouter = 0;    trace_neigh_update(neigh, lladdr, new, flags, nlmsg_pid);    write_lock_bh(&neigh->lock);    dev = neigh->dev;    old = neigh->nud_state;    err = -EPERM;/* 1. 权限检查：NOARP/PERMANENT 状态不允许非 ADMIN 更新 */if (!(flags & NEIGH_UPDATE_F_ADMIN) &&        (old & (NUD_NOARP | NUD_PERMANENT)))goto out;if (neigh->dead) {        NL_SET_ERR_MSG(extack, "Neighbor entry is now dead");goto out;    }/* 2. 新状态非 VALID：删除定时器和连接状态 */if (!(new & NUD_VALID)) {        neigh_del_timer(neigh);if (old & NUD_CONNECTED)            neigh_suspect(neigh);        neigh->nud_state = new;        err = 0;        notify = old & NUD_VALID;if ((old & (NUD_INCOMPLETE | NUD_PROBE)) &&            (new & NUD_FAILED)) {            neigh_invalidate(neigh);            notify = 1;        }goto out;    }/* 3. 处理 lladdr（MAC 地址）*/if (!dev->addr_len) {        lladdr = neigh->ha;    } elseif (lladdr) {if ((old & NUD_VALID) &&            !memcmp(lladdr, neigh->ha, dev->addr_len))            lladdr = neigh->ha;   /* 相同，无需更新 */    } else {        err = -EINVAL;if (!(old & NUD_VALID)) {            NL_SET_ERR_MSG(extack, "No link layer address given");goto out;        }        lladdr = neigh->ha;    }/* 4. 如果新状态是 CONNECTED，更新 confirmed 时间戳 */if (new & NUD_CONNECTED)        neigh->confirmed = jiffies;/* 5. 状态转移 */if (new != old) {        neigh_del_timer(neigh);if (new & NUD_PROBE)            atomic_set(&neigh->probes, 0);if (new & NUD_IN_TIMER)            neigh_add_timer(neigh, jiffies +                    ((new & NUD_REACHABLE) ?                     neigh->parms->reachable_time : 0));        neigh->nud_state = new;        notify = 1;    }/* 6. 写入 MAC 地址（用 seqlock 保护）*/if (lladdr != neigh->ha) {        write_seqlock(&neigh->ha_lock);memcpy(&neigh->ha, lladdr, dev->addr_len);        write_sequnlock(&neigh->ha_lock);        neigh_update_hhs(neigh);if (!(new & NUD_CONNECTED))            neigh->confirmed = jiffies -                      (NEIGH_VAR(neigh->parms, BASE_REACHABLE_TIME) << 1);        notify = 1;    }/* 7. 发送排队的报文 */if (!(old & NUD_VALID)) {structsk_buff *skb;while (neigh->nud_state & NUD_VALID &&               (skb = __skb_dequeue(&neigh->arp_queue)) != NULL) {structdst_entry *dst = skb_dst(skb);structneighbour *n2, *n1 = neigh;            write_unlock_bh(&neigh->lock);            rcu_read_lock();            n2 = NULL;if (dst) {                n2 = dst_neigh_lookup_skb(dst, skb);if (n2)                    n1 = n2;            }            n1->output(n1, skb);if (n2)                neigh_release(n2);            rcu_read_unlock();            write_lock_bh(&neigh->lock);        }        __skb_queue_purge(&neigh->arp_queue);        neigh->arp_queue_len_bytes = 0;    }    ...}

要点：

1. neigh_update() vs __neigh_update()：neigh_update() 是公开 API（供 neigh_event_ns() 等调用），__neigh_update() 多一个 extack 参数用于 netlink 错误报告。
2. lladdr != neigh->ha 用指针比较（是否同一地址），不是内容比较。memcmp 在后面实际写入时做。
3. 排队报文发送时必须先解锁再调用 output()，因为 output() 可能会重新进入邻居子系统（避免死锁）。

五、哈希表实现

5.1 查找：___neigh_lookup_noref()

文件：include/net/neighbour.h，约第 175 行

staticinlinestructneighbour *___neigh_lookup_noref(structneigh_table *tbl,bool (*key_eq)(conststructneighbour *n, constvoid *pkey),    __u32 (*hash)(constvoid *pkey,conststructnet_device *dev,                   __u32 *hash_rnd),constvoid *pkey,structnet_device *dev){structneigh_hash_table *nht = rcu_dereference_bh(tbl->nht);structneighbour *n;    u32 hash_val;    hash_val = hash(pkey, dev, nht->hash_rnd) >> (32 - nht->hash_shift);for (n = rcu_dereference_bh(nht->hash_buckets[hash_val]);         n != NULL;         n = rcu_dereference_bh(n->next)) {if (n->dev == dev && key_eq(n, pkey))return n;    }returnNULL;}

要点： 哈希函数 hash 是函数指针，IPv4 注册 arp_hashfn（jhash_2words），IPv6 注册 ndisc_hashfn。

5.2 创建：neigh_alloc() + ___neigh_create()

neigh_alloc()

文件：net/core/neighbour.c，约第 397 行

static struct neighbour *neigh_alloc(struct neigh_table *tbl,                                     struct net_device *dev,bool exempt_from_gc){structneighbour *n = NULL;unsignedlong now = jiffies;int entries;if (!exempt_from_gc) {        entries = atomic_inc_return(&tbl->gc_entries) - 1;if (entries >= tbl->gc_thresh3 ||            (entries >= tbl->gc_thresh2 &&             time_after(now, tbl->last_flush + 5 * HZ))) {if (!neigh_forced_gc(tbl) &&                entries >= tbl->gc_thresh3) {                net_info_ratelimited("%s: neighbor table overflow!\n",                                     tbl->id);                NEIGH_CACHE_STAT_INC(tbl, table_fulls);goto out_entries;            }        }    }    n = kzalloc(tbl->entry_size + dev->neigh_priv_len, GFP_ATOMIC);if (!n)goto out_entries;    __skb_queue_head_init(&n->arp_queue);    rwlock_init(&n->lock);    seqlock_init(&n->ha_lock);    n->updated       = n->used = now;    n->nud_state    = NUD_NONE;    n->output       = neigh_blackhole;    seqlock_init(&n->hh.hh_lock);    n->parms        = neigh_parms_clone(&tbl->parms);    timer_setup(&n->timer, neigh_timer_handler, 0);    NEIGH_CACHE_STAT_INC(tbl, allocs);    n->tbl           = tbl;    refcount_set(&n->refcnt, 1);    n->dead          = 1;    INIT_LIST_HEAD(&n->gc_list);    atomic_inc(&tbl->entries);return n;    ...}

___neigh_create()

文件：net/core/neighbour.c，约第 577 行

staticstructneighbour *___neigh_create(structneigh_table *tbl,constvoid *pkey,structnet_device *dev,boolexempt_from_gc, boolwant_ref){structneighbour *n1, *rc, *n = neigh_alloc(tbl, dev, exempt_from_gc);    ...memcpy(n->primary_key, pkey, key_len);    n->dev = dev;    dev_hold(dev);if (tbl->constructor && (error = tbl->constructor(n)) < 0)goto out_neigh_release;if (dev->netdev_ops->ndo_neigh_construct) {        error = dev->netdev_ops->ndo_neigh_construct(dev, n);if (error < 0)goto out_neigh_release;    }    n->confirmed = jiffies - (NEIGH_VAR(n->parms, BASE_REACHABLE_TIME) << 1);    write_lock_bh(&tbl->lock);    nht = rcu_dereference_protected(tbl->nht, ...);if (atomic_read(&tbl->entries) > (1 << nht->hash_shift))        nht = neigh_hash_grow(tbl, nht->hash_shift + 1);/* 检查是否已存在（并发创建）*/    hash_val = ...;for (n1 = ...; n1 != NULL; n1 = ...) {if (dev == n1->dev &&            !memcmp(n1->primary_key, n->primary_key, key_len)) {            rc = n1;goto out_tbl_unlock;        }    }    n->dead = 0;if (!exempt_from_gc)        list_add_tail(&n->gc_list, &n->tbl->gc_list);    rcu_assign_pointer(n->next, ...);    rcu_assign_pointer(nht->hash_buckets[hash_val], n);    write_unlock_bh(&tbl->lock);return n;    ...}

要点：confirmed 初始化为一个"过去"的时间，使得初次 REACHABLE 后定时器到期时能正确进入 STALE（而不是因为 confirmed 太新而误认为仍然存活）。

5.3 扩容：neigh_hash_grow()

文件：net/core/neighbour.c，约第 460 行

static struct neigh_hash_table *neigh_hash_grow(struct neigh_table *tbl,unsignedlong new_shift){unsignedint i, hash;structneigh_hash_table *new_nht, *old_nht;    NEIGH_CACHE_STAT_INC(tbl, hash_grows);    old_nht = rcu_dereference_protected(tbl->nht, ...);    new_nht = neigh_hash_alloc(new_shift);if (!new_nht)return old_nht;for (i = 0; i < (1 << old_nht->hash_shift); i++) {structneighbour *n, *next;for (n = ...; n != NULL; n = next) {            hash = tbl->hash(n->primary_key, n->dev,                             new_nht->hash_rnd);            hash >>= (32 - new_nht->hash_shift);            next = rcu_dereference_protected(n->next, ...);            rcu_assign_pointer(n->next,                rcu_dereference_protected(                    new_nht->hash_buckets[hash], ...));            rcu_assign_pointer(new_nht->hash_buckets[hash], n);        }    }    rcu_assign_pointer(tbl->nht, new_nht);    call_rcu(&old_nht->rcu, neigh_hash_free_rcu);return new_nht;}

要点： 扩容使用新的hash_rnd[]，所有表项重新哈希，缓解哈希碰撞攻击。但扩容期间持有 tbl->lock 写锁，会阻塞所有写操作。

六、垃圾回收（GC）机制

6.1 neigh_update_gc_list() — 维护 GC 链表

文件：net/core/neighbour.c，约第 108 行

staticvoidneigh_update_gc_list(struct neighbour *n){bool on_gc_list, exempt_from_gc;    write_lock_bh(&n->tbl->lock);    write_lock(&n->lock);    exempt_from_gc = n->nud_state & NUD_PERMANENT ||                     n->flags & NTF_EXT_LEARNED;    on_gc_list = !list_empty(&n->gc_list);if (exempt_from_gc && on_gc_list) {        list_del_init(&n->gc_list);        atomic_dec(&n->tbl->gc_entries);    } elseif (!exempt_from_gc && !on_gc_list) {        list_add_tail(&n->gc_list, &n->tbl->gc_list);        atomic_inc(&n->tbl->gc_entries);    }    write_unlock(&n->lock);    write_unlock_bh(&n->tbl->lock);}

6.2 neigh_forced_gc() — 强制 GC

文件：net/core/neighbour.c，约第 219 行

staticintneigh_forced_gc(struct neigh_table *tbl){int max_clean = atomic_read(&tbl->gc_entries) - tbl->gc_thresh2;unsignedlong tref = jiffies - 5 * HZ;structneighbour *n, *tmp;int shrunk = 0;    NEIGH_CACHE_STAT_INC(tbl, forced_gc_runs);    write_lock_bh(&tbl->lock);    list_for_each_entry_safe(n, tmp, &tbl->gc_list, gc_list) {if (refcount_read(&n->refcnt) == 1) {bool remove = false;            write_lock(&n->lock);if ((n->nud_state == NUD_FAILED) ||                time_after(tref, n->updated))                remove = true;            write_unlock(&n->lock);if (remove && neigh_remove_one(n, tbl))                shrunk++;if (shrunk >= max_clean)break;        }    }    tbl->last_flush = jiffies;    write_unlock_bh(&tbl->lock);return shrunk;}

要点：tref = jiffies - 5*HZ：5 秒内更新过的表项不被强制清理（给一个"宽限期"）。

6.3 三级 GC 策略

七、硬件头缓存（hh_cache）

7.1 neigh_output() — 发送路径选择

文件：include/net/neighbour.h，约第 327 行

staticinlineintneigh_output(struct neighbour *n, struct sk_buff *skb,bool skip_cache){conststructhh_cache *hh = &n->hh;if ((n->nud_state & NUD_CONNECTED) && hh->hh_len && !skip_cache)return neigh_hh_output(hh, skb);   /* 快速路径 */elsereturn n->output(n, skb);           /* 慢速路径 */}

7.2 neigh_hh_output() — 快速路径

文件：include/net/neighbour.h，约第 355 行

用 seqlock 读 hh_data，直接拷贝到 skb 头部，然后 dev_queue_xmit()。

八、总结

8.1 架构亮点

1. 协议无关抽象：neigh_table 的 hash/key_eq/constructor 函数指针让 IPv4 和 IPv6 共用同一框架
2. 独立 GC 链表：gc_list 与哈希表分离，GC 复杂度 O(gc_entries) 而非 O(entries)
3. RCU 无锁读：哈希查找全程 rcu_read_lock_bh()，无写锁竞争
4. 延迟确认：STALE → DELAY → PROBE 三阶段设计，优先等上层确认
5. hh_cache 快速路径：CONNECTED 状态下直接拷贝缓存头，避免 hard_header 开销
6. seqlock 保护 MAC：读 MAC 无需写锁

8.2 关键锁层次

参考资料

1. Linux 5.7.8 源码
2. RFC 826 — ARP 协议规范
3. RFC 4861 — IPv6 NDP 规范
