Almalinux8.10加入openldap服务器配置指导 linux系统加入openldap服务认证 openldap用户统一认证配置

Almalinux8.10加入openldap服务器配置指导 linux系统加入openldap服务认证 openldap用户统一认证配置

一、Almalinux8.10配置openldap

1、安装OpenLDAP客户端软件包：yum installopenldap-clients nss-pam-ldapd

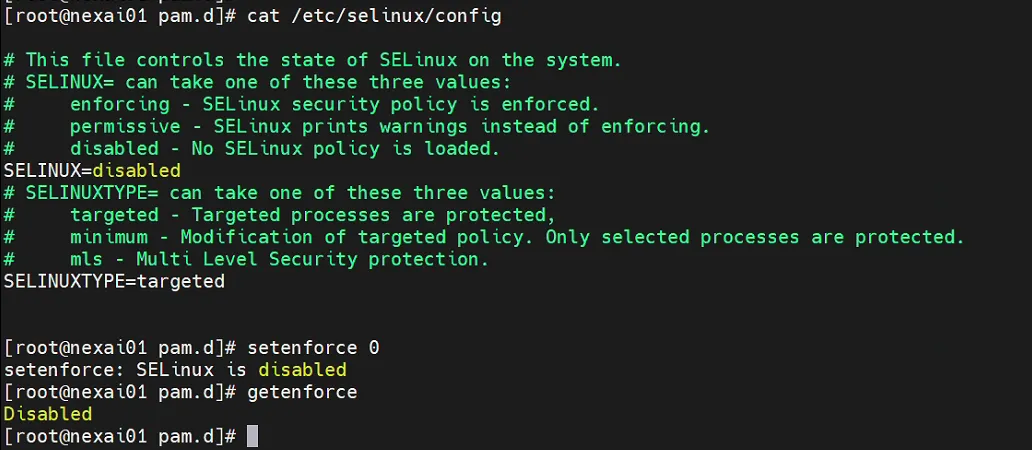

2、关闭selinux和防火墙，修改/etc/selinux/config文件或者setenforce 0，systemctl stop firewalld&& systemctldisable firewalld

3、修改/etc/nslcd.conf 配置文件，完整配置文件如下：

# nslcd configuration

uid nslcd

gid ldap

# LDAP server URI

uri ldap://10.252.14.21/

# Search base

base ou=Nexai,dc=nexai,dc=com

ssl no

tls_cacertdir/etc/openldap/cacerts//注意需要创建cacerts目录：mkdir/etc/openldap/cacerts

# base dc=nexai,dc=com

scope sub

# Bind credentials

binddn cn=admin,dc=nexai,dc=com

bindpw Nex@2026

# Search filters

filter passwd (objectClass=posixAccount)

filter shadow (objectClass=posixAccount)

filter group(objectClass=posixGroup)

# Attribute mappings

mappasswd uiduid

mappasswd uidNumberuidNumber

mappasswd gidNumbergidNumber

mappasswd homeDirectoryhomeDirectory

mappasswd loginShellloginShell

#mappasswd snsn

mappasswd gecoscn

mapgroupcncn

mapgroupgidNumbergidNumber

# Connection settings

bind_timelimit 30

timelimit 30

idle_timelimit 3600

pagesize 1000

referrals off

4、修改/etc/pam_ldap.conf 配置文件，完整配置文件如下：cat /etc/pam_ldap.conf

host 10.252.14.21

URI ldap://10.252.14.21/

BASE dc=nexai,dc=com

ldap_version 3

5、修改/etc/authselect/system-auth (/etc/pam .d/system-auth) 认证文件，完整配置文件如下：cat /etc/authselect/system-auth

# Generated by authselect on Thu Jan 22 15:52:24 2026

# Do not modify this file manually.

authrequiredpam_env.so

authrequiredpam_faildelay.so delay=2000000

authsufficientpam_fprintd.so

auth[default=1 ignore=ignore success=ok]pam_usertype.so isregular

auth[default=1 ignore=ignore success=ok]pam_localuser.so

authsufficientpam_unix.so nullok

auth[default=1 ignore=ignore success=ok]pam_usertype.so isregular

authsufficientpam_sss.so forward_pass

authsufficientpam_ldap.souse_first_pass

authrequiredpam_deny.so

accountrequiredpam_unix.so

accountsufficientpam_localuser.so

accountsufficientpam_usertype.so issystem

account[default=bad success=ok user_unknown=ignore] pam_sss.so

account[default=bad success=ok user_unknown=ignore] pam_ldap.so

accountrequiredpam_permit.so

passwordrequisitepam_pwquality.so local_users_only

passwordsufficientpam_unix.so sha512 shadow nullok use_authtok

password[success=1 default=ignore]pam_localuser.so

passwordsufficientpam_sss.so use_authtok

passwordsufficientpam_ldap.souse_authtok

passwordrequiredpam_deny.so

sessionoptionalpam_keyinit.so revoke

sessionrequiredpam_limits.so

-sessionoptionalpam_systemd.so

session[success=1 default=ignore]pam_succeed_if.so service in crond quiet use_uid

sessionrequiredpam_unix.so

sessionoptionalpam_sss.so

sessionoptionalpam_ldap.so

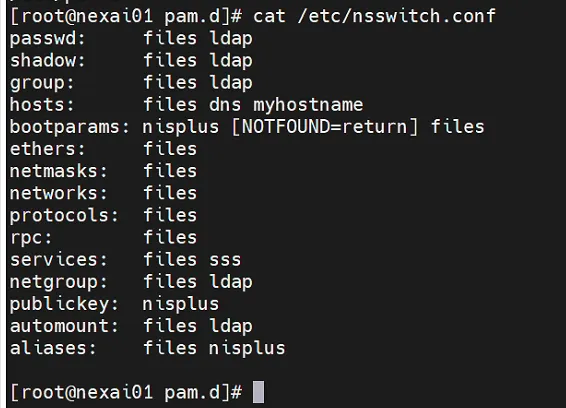

6、修改/etc/nsswitch.conf配置文件，完整配置文件如下：cat /etc/nsswitch.conf

passwd:files ldap

shadow:files ldap

group:files ldap

hosts:files dns myhostname

bootparams: nisplus [NOTFOUND=return] files

ethers:files

netmasks:files

networks:files

protocols:files

rpc:files

services:files sss

netgroup:files ldap

publickey:nisplus

automount:files ldap

aliases:files nisplus

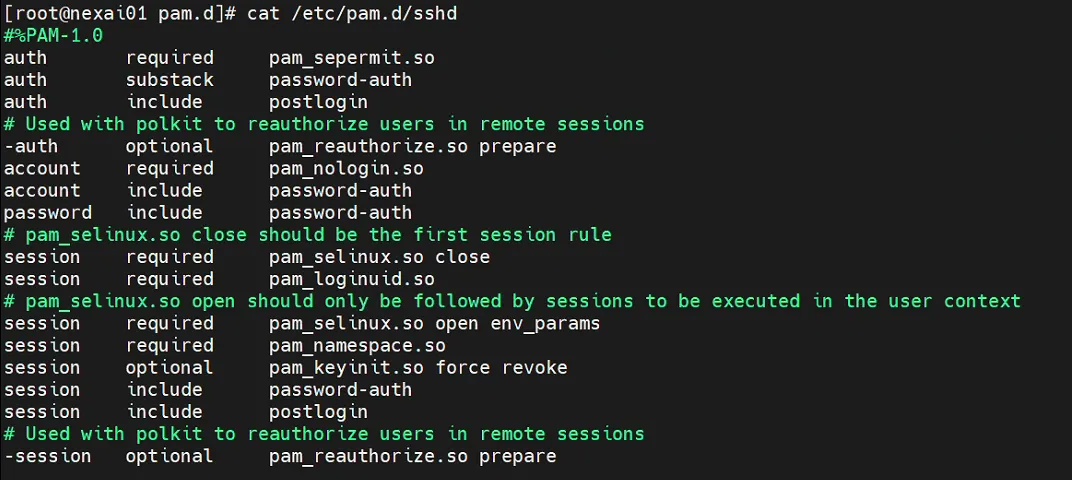

7、修改/etc/pam.d/sshd配置文件，完整配置文件如下：cat /etc/pam.d/sshd

#%PAM-1.0

authrequiredpam_sepermit.so

authsubstackpassword-auth

authincludepostlogin

# Used with polkit to reauthorize users in remote sessions

-authoptionalpam_reauthorize.so prepare

accountrequiredpam_nologin.so

accountincludepassword-auth

passwordincludepassword-auth

# pam_selinux.so close should be the first session rule

sessionrequiredpam_selinux.so close

sessionrequiredpam_loginuid.so

# pam_selinux.so open should only be followed by sessions to be executed in the user context

sessionrequiredpam_selinux.so open env_params

sessionrequiredpam_namespace.so

sessionoptionalpam_keyinit.so force revoke

sessionincludepassword-auth

sessionincludepostlogin

# Used with polkit to reauthorize users in remote sessions

-sessionoptionalpam_reauthorize.so prepare

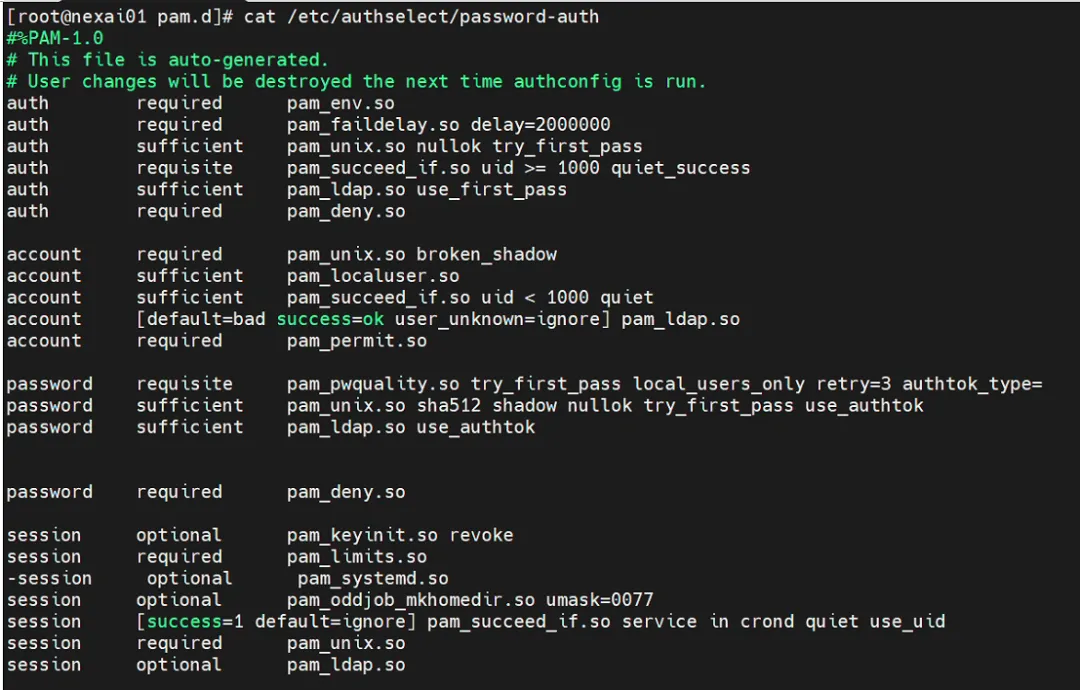

8、修改/etc/authselect/password-auth (/etc/pam.d/password-auth)配置文件，完整配置文件如下：cat/etc/authselect/password-auth

#%PAM-1.0

# This file is auto-generated.

# User changes will be destroyed the next time authconfig is run.

authrequiredpam_env.so

authrequiredpam_faildelay.so delay=2000000

authsufficientpam_unix.so nullok try_first_pass

authrequisitepam_succeed_if.so uid >= 1000 quiet_success

authsufficientpam_ldap.so use_first_pass

authrequiredpam_deny.so

accountrequiredpam_unix.so broken_shadow

accountsufficientpam_localuser.so

accountsufficientpam_succeed_if.so uid < 1000 quiet

account[default=bad success=ok user_unknown=ignore] pam_ldap.so

accountrequiredpam_permit.so

passwordrequisitepam_pwquality.so try_first_pass local_users_only retry=3 authtok_type=

passwordsufficientpam_unix.so sha512 shadow nullok try_first_pass use_authtok

passwordsufficientpam_ldap.so use_authtok

passwordrequiredpam_deny.so

sessionoptionalpam_keyinit.so revoke

sessionrequiredpam_limits.so

-sessionoptionalpam_systemd.so

sessionoptionalpam_oddjob_mkhomedir.so umask=0077

session[success=1 default=ignore] pam_succeed_if.so service in crond quiet use_uid

sessionrequiredpam_unix.so

sessionoptionalpam_ldap.so

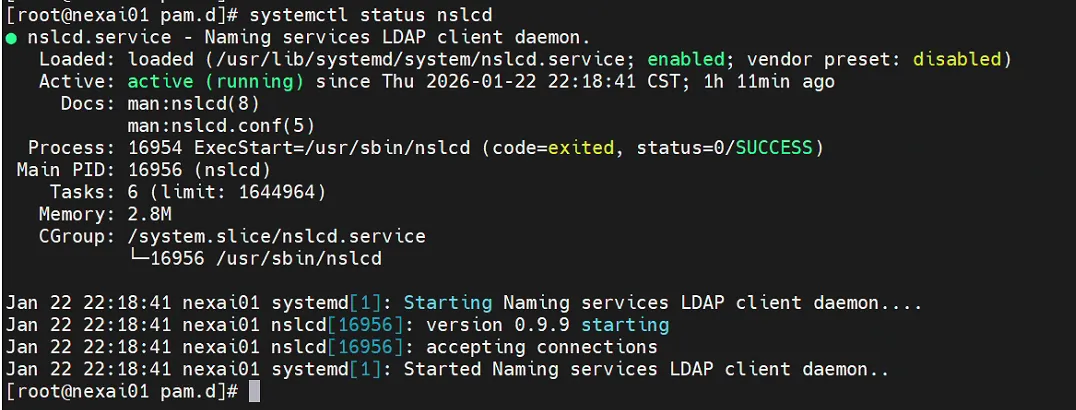

9、加载nslce进程：service nslcd restart

10、测试

9.1、输入id openldap用户，如id jqian

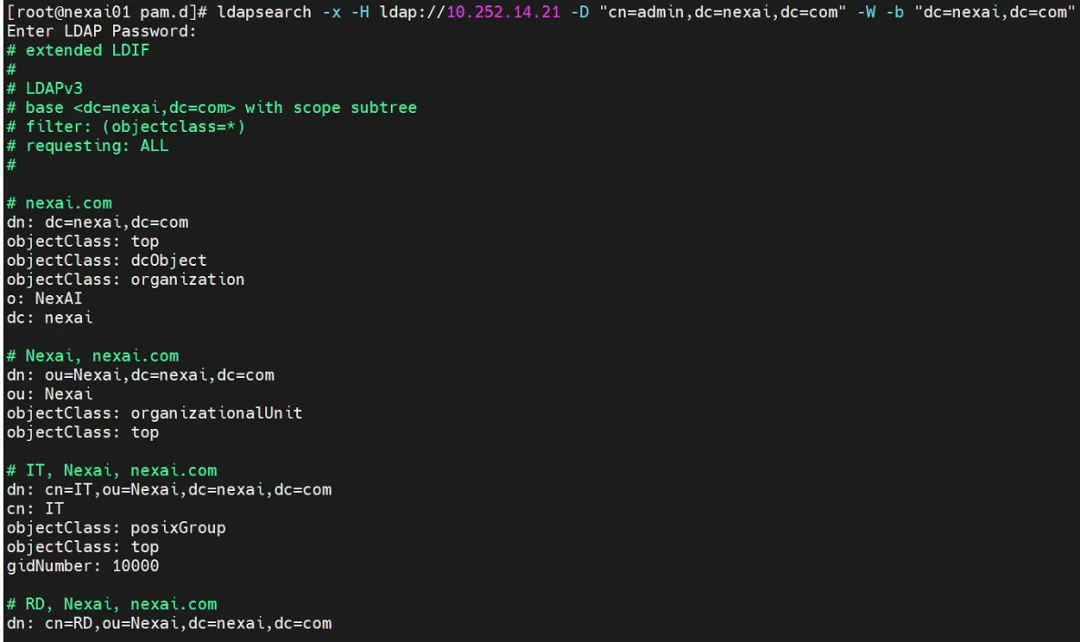

9.2、执行ldapsearch -x -H ldap://10.252.14.21 -D "cn=admin,dc=nexai,dc=com" -W -b "dc=nexai,dc=com"，输入密码：Nex@2026

9.3、其它：测试openldap服务器端口连接性：curl ldap://10.252.14.21:389
