Linux 内核攻击:Punch hole (2025 Backdoor skernel 复现)

00000000 struct __fixed struct_3 // sizeof=0x1800000000 {                                       // XREF: module_ioctl/r00000000     int index;                          // XREF: module_ioctl+25/w00000000                                         // module_ioctl+60/r ...00000004     int field_4;00000008     __int64 length;                     // XREF: module_ioctl+2E/w00000008                                         // module_ioctl+6B/r ...00000010     __int64 buf;                        // XREF: module_ioctl+37/w00000010                                         // module_ioctl+169/r ...00000018 };__int64 __fastcall module_ioctl(__int64 a1, int a2, __int64 a3){  __int64 v4; // rbx  __int64 v5; // rax  __int64 v7; // rdx  __int64 v8; // rdi  struct_3 v9; // [rsp+8h] [rbp-70h] BYREF  _BYTE v10[64]; // [rsp+20h] [rbp-58h] BYREFunsigned __int64 v11; // [rsp+60h] [rbp-18h]  v11 = __readgsqword((unsignedint)&_ref_stack_chk_guard);memset(&v9, 0, sizeof(v9));mutex_lock(&skernel_mutex);if ( copy_from_user(&v9, a3, 24) )  {    v4 = -14;goto LABEL_10;  }if ( v9.index > 7u )  {    v4 = -22;goto LABEL_10;  }  v4 = -22;if ( (unsigned __int64)(v9.length - 1) > 0x3F )  {LABEL_10:mutex_unlock(&skernel_mutex);return v4;  }mutex_unlock(&skernel_mutex);switch ( a2 )  {case 322376504:memset(v10, 0, sizeof(v10));      v7 = allocated_objects[v9.index];if ( !v7 )return -1;      v4 = 0;kfree(v7);copy_from_user(v10, v9.buf, 64);      allocated_objects[v9.index] = 0;return v4;case 322376505:      v8 = allocated_objects[v9.index];if ( !v8 )return -1;if ( v9.length > 0x7FFFFFFFuLL )BUG();return -(copy_from_user(v8, v9.buf, v9.length) != 0);case 322376503:if ( allocated_objects[v9.index] )return -1;      v4 = 0;      v5 = _kmalloc_cache_noprof(kmalloc_caches[6], 3520, 64);      allocated_objects[v9.index] = v5;return v4;  }return module_ioctl_cold();}

struct shmem_falloc {wait_queue_head_t *waitq;      // 等待队列（用于同步）pgoff_t start;                 // 打洞起始页号pgoff_t next;                  // 打洞结束页号（下一个页号）pgoff_t nr_falloced;           // 已分配的页数（用于普通 fallocate）pgoff_t nr_unswapped;          // 已交换的页数（用于普通 fallocate）};

SYSCALL_DEFINE4(fallocate, int, fd, int, mode, loff_t, offset, loff_t, len){return ksys_fallocate(fd, mode, offset, len);}

int vfs_fallocate(struct file *file, int mode, loff_t offset, loff_t len){        struct inode *inode = file_inode(file);        long ret;        loff_t sum;if (offset < 0 || len <= 0)return -EINVAL;if (mode & ~(FALLOC_FL_MODE_MASK | FALLOC_FL_KEEP_SIZE))return -EOPNOTSUPP;/*         * Modes are exclusive, even if that is not obvious from the encoding         * as bit masks and the mix with the flag in the same namespace.         *         * To make things even more complicated, FALLOC_FL_ALLOCATE_RANGE is         * encoded as no bit set.         */        switch (mode & FALLOC_FL_MODE_MASK) {        case FALLOC_FL_ALLOCATE_RANGE:        case FALLOC_FL_UNSHARE_RANGE:        case FALLOC_FL_ZERO_RANGE:break;        case FALLOC_FL_PUNCH_HOLE:if (!(mode & FALLOC_FL_KEEP_SIZE))return -EOPNOTSUPP;break;        case FALLOC_FL_COLLAPSE_RANGE:        case FALLOC_FL_INSERT_RANGE:if (mode & FALLOC_FL_KEEP_SIZE)return -EOPNOTSUPP;break;        default:return -EOPNOTSUPP;        }if (!(file->f_mode & FMODE_WRITE))return -EBADF;/*         * On append-only files only space preallocation is supported.         */if ((mode & ~FALLOC_FL_KEEP_SIZE) && IS_APPEND(inode))return -EPERM;if (IS_IMMUTABLE(inode))return -EPERM;/*         * We cannot allow any fallocate operation on an active swapfile         */if (IS_SWAPFILE(inode))return -ETXTBSY;/*         * Revalidate the write permissions, in case security policy has         * changed since the files were opened.         */        ret = security_file_permission(file, MAY_WRITE);if (ret)return ret;        ret = fsnotify_file_area_perm(file, MAY_WRITE, &offset, len);if (ret)return ret;if (S_ISFIFO(inode->i_mode))return -ESPIPE;if (S_ISDIR(inode->i_mode))return -EISDIR;if (!S_ISREG(inode->i_mode) && !S_ISBLK(inode->i_mode))return -ENODEV;/* Check for wraparound */if (check_add_overflow(offset, len, &sum))return -EFBIG;if (sum > inode->i_sb->s_maxbytes)return -EFBIG;if (!file->f_op->fallocate)return -EOPNOTSUPP;        file_start_write(file);// 最终调用 f_op->fallocate        ret = file->f_op->fallocate(file, mode, offset, len);/*         * Create inotify and fanotify events.         *         * To keep the logic simple always create events if fallocate succeeds.         * This implies that events are even created if the file size remains         * unchanged, e.g. when using flag FALLOC_FL_KEEP_SIZE.         */if (ret == 0)                fsnotify_modify(file);        file_end_write(file);return ret;}EXPORT_SYMBOL_GPL(vfs_fallocate);

/* * preallocate space for a file. This implements ext4's fallocate file * operation, which gets called from sys_fallocate system call. * For block-mapped files, posix_fallocate should fall back to the method * of writing zeroes to the required new blocks (the same behavior which is * expected for file systems which do not support fallocate() system call). */longext4_fallocate(struct file *file, int mode, loff_t offset, loff_t len){struct inode *inode = file_inode(file);loff_t new_size = 0;unsignedint max_blocks;int ret = 0;int flags;ext4_lblk_t lblk;unsignedint blkbits = inode->i_blkbits;/*         * Encrypted inodes can't handle collapse range or insert         * range since we would need to re-encrypt blocks with a         * different IV or XTS tweak (which are based on the logical         * block number).         */if (IS_ENCRYPTED(inode) &&            (mode & (FALLOC_FL_COLLAPSE_RANGE | FALLOC_FL_INSERT_RANGE)))return -EOPNOTSUPP;/* Return error if mode is not supported */if (mode & ~(FALLOC_FL_KEEP_SIZE | FALLOC_FL_PUNCH_HOLE |                     FALLOC_FL_COLLAPSE_RANGE | FALLOC_FL_ZERO_RANGE |                     FALLOC_FL_INSERT_RANGE))return -EOPNOTSUPP;inode_lock(inode);        ret = ext4_convert_inline_data(inode);inode_unlock(inode);if (ret)goto exit;if (mode & FALLOC_FL_PUNCH_HOLE) {                ret = ext4_punch_hole(file, offset, len);goto exit;        }if (mode & FALLOC_FL_COLLAPSE_RANGE) {                ret = ext4_collapse_range(file, offset, len);goto exit;        }if (mode & FALLOC_FL_INSERT_RANGE) {                ret = ext4_insert_range(file, offset, len);goto exit;        }if (mode & FALLOC_FL_ZERO_RANGE) {                ret = ext4_zero_range(file, offset, len, mode);goto exit;        }trace_ext4_fallocate_enter(inode, offset, len, mode);        lblk = offset >> blkbits;        max_blocks = EXT4_MAX_BLOCKS(len, offset, blkbits);        flags = EXT4_GET_BLOCKS_CREATE_UNWRIT_EXT;inode_lock(inode);/*         * We only support preallocation for extent-based files only         */if (!(ext4_test_inode_flag(inode, EXT4_INODE_EXTENTS))) {                ret = -EOPNOTSUPP;goto out;        }if (!(mode & FALLOC_FL_KEEP_SIZE) &&            (offset + len > inode->i_size ||             offset + len > EXT4_I(inode)->i_disksize)) {                new_size = offset + len;                ret = inode_newsize_ok(inode, new_size);if (ret)goto out;        }/* Wait all existing dio workers, newcomers will block on i_rwsem */inode_dio_wait(inode);        ret = file_modified(file);if (ret)goto out;        ret = ext4_alloc_file_blocks(file, lblk, max_blocks, new_size, flags);if (ret)goto out;if (file->f_flags & O_SYNC && EXT4_SB(inode->i_sb)->s_journal) {                ret = ext4_fc_commit(EXT4_SB(inode->i_sb)->s_journal,EXT4_I(inode)->i_sync_tid);        }out:inode_unlock(inode);trace_ext4_fallocate_exit(inode, offset, max_blocks, ret);exit:return ret;}

intext4_punch_hole(struct file *file, loff_t offset, loff_t length){struct inode *inode = file_inode(file);struct super_block *sb = inode->i_sb;ext4_lblk_t first_block, stop_block;struct address_space *mapping = inode->i_mapping;loff_t first_block_offset, last_block_offset, max_length;struct ext4_sb_info *sbi = EXT4_SB(inode->i_sb);handle_t *handle;unsignedint credits;int ret = 0, ret2 = 0;trace_ext4_punch_hole(inode, offset, length, 0);inode_lock(inode);/* No need to punch hole beyond i_size */if (offset >= inode->i_size)goto out_mutex;/*         * If the hole extends beyond i_size, set the hole         * to end after the page that contains i_size         */if (offset + length > inode->i_size) {                length = inode->i_size +                   PAGE_SIZE - (inode->i_size & (PAGE_SIZE - 1)) -                   offset;        }/*         * For punch hole the length + offset needs to be within one block         * before last range. Adjust the length if it goes beyond that limit.         */        max_length = sbi->s_bitmap_maxbytes - inode->i_sb->s_blocksize;if (offset + length > max_length)                length = max_length - offset;if (offset & (sb->s_blocksize - 1) ||            (offset + length) & (sb->s_blocksize - 1)) {/*                 * Attach jinode to inode for jbd2 if we do any zeroing of                 * partial block                 */                ret = ext4_inode_attach_jinode(inode);if (ret < 0)goto out_mutex;        }// 等待所有直接 I/O 完成/* Wait all existing dio workers, newcomers will block on i_rwsem */inode_dio_wait(inode);        ret = file_modified(file);if (ret)goto out_mutex;/*         * Prevent page faults from reinstantiating pages we have released from         * page cache.         */filemap_invalidate_lock(mapping);        ret = ext4_break_layouts(inode);if (ret)goto out_dio;        first_block_offset = round_up(offset, sb->s_blocksize);        last_block_offset = round_down((offset + length), sb->s_blocksize) - 1;/* Now release the pages and zero block aligned part of pages*/if (last_block_offset > first_block_offset) {// 释放指定范围内的页面缓存                ret = ext4_update_disksize_before_punch(inode, offset, length);if (ret)goto out_dio;                ret = ext4_truncate_page_cache_block_range(inode,                                first_block_offset, last_block_offset + 1);if (ret)goto out_dio;        }if (ext4_test_inode_flag(inode, EXT4_INODE_EXTENTS))                credits = ext4_writepage_trans_blocks(inode);else                credits = ext4_blocks_for_truncate(inode);        handle = ext4_journal_start(inode, EXT4_HT_TRUNCATE, credits);if (IS_ERR(handle)) {                ret = PTR_ERR(handle);ext4_std_error(sb, ret);goto out_dio;        }// 零化部分块        ret = ext4_zero_partial_blocks(handle, inode, offset,                                       length);if (ret)goto out_stop;        first_block = (offset + sb->s_blocksize - 1) >>EXT4_BLOCK_SIZE_BITS(sb);        stop_block = (offset + length) >> EXT4_BLOCK_SIZE_BITS(sb);/* If there are blocks to remove, do it */if (stop_block > first_block) {ext4_lblk_t hole_len = stop_block - first_block;down_write(&EXT4_I(inode)->i_data_sem);ext4_discard_preallocations(inode);ext4_es_remove_extent(inode, first_block, hole_len);// 删除块 从 extent 树或间接块中删除块if (ext4_test_inode_flag(inode, EXT4_INODE_EXTENTS))                        ret = ext4_ext_remove_space(inode, first_block,                                                    stop_block - 1);else                        ret = ext4_ind_remove_space(handle, inode, first_block,                                                    stop_block);// 标记为 HOLE 在 extent 状态树中标记为 EXTENT_STATUS_HOLEext4_es_insert_extent(inode, first_block, hole_len, ~0,                                      EXTENT_STATUS_HOLE, 0);up_write(&EXT4_I(inode)->i_data_sem);        }ext4_fc_track_range(handle, inode, first_block, stop_block);if (IS_SYNC(inode))ext4_handle_sync(handle);inode_set_mtime_to_ts(inode, inode_set_ctime_current(inode));        ret2 = ext4_mark_inode_dirty(handle, inode);if (unlikely(ret2))                ret = ret2;if (ret >= 0)ext4_update_inode_fsync_trans(handle, inode, 1);out_stop:ext4_journal_stop(handle);out_dio:filemap_invalidate_unlock(mapping);out_mutex:inode_unlock(inode);return ret;}

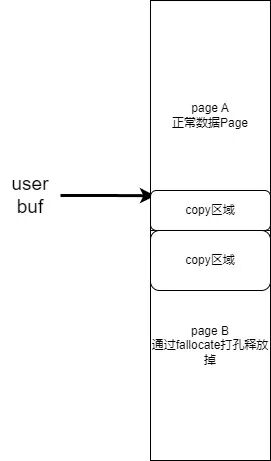

用户空间: fallocate(fd, FALLOC_FL_PUNCH_HOLE | FALLOC_FL_KEEP_SIZE, offset, len)    ↓系统调用: SYSCALL_DEFINE4(fallocate, ...)    ↓ksys_fallocate()    ↓vfs_fallocate()    ↓file->f_op->fallocate()  [对于 shmem 文件，指向 shmem_fallocate]    ↓┌─────────────────────────────────────────────────────────────┐│ shmem_fallocate() [mm/shmem.c:3376]                         ││                                                             ││ if (mode & FALLOC_FL_PUNCH_HOLE) {                         ││   ├─ 1. 设置等待队列和标记                                    ││   │   └─ inode->i_private = &shmem_falloc                  ││   │                                                         ││   ├─ 2. unmap_mapping_range() [mm/memory.c:3857]          ││   │   └─ unmap_mapping_pages() [mm/memory.c:3821]         ││   │       └─ unmap_mapping_range_tree()                   ││   │           └─ unmap_mapping_range_vma()                 ││   │               └─ zap_page_range_single()               ││   │                   └─ 取消映射所有 VMA 中的页面          ││   │                                                         ││   ├─ 3. shmem_truncate_range() [mm/shmem.c:1146]          ││   │   └─ shmem_undo_range() [mm/shmem.c:995]              ││   │       ├─ find_lock_entries() [mm/filemap.c]          ││   │       │   └─ 查找并锁定页面缓存中的 folio              ││   │       ├─ truncate_inode_folio() [mm/truncate.c]       ││   │       │   └─ 截断完整的 folio                          ││   │       ├─ truncate_inode_partial_folio() [mm/truncate.c]││   │       │   └─ 截断部分 folio（处理跨页边界）             ││   │       ├─ shmem_free_swap()                             ││   │       │   └─ 释放交换空间条目                          ││   │       └─ shmem_recalc_inode()                          ││   │           └─ 重新计算 inode 的统计信息                  ││   │                                                         ││   └─ 4. 清除标记并唤醒等待线程                               ││       ├─ inode->i_private = NULL                           ││       └─ wake_up_all(&shmem_falloc_waitq)                 │└─────────────────────────────────────────────────────────────┘

staticlongshmem_fallocate(struct file *file, int mode, loff_t offset,loff_t len){struct inode *inode = file_inode(file);struct shmem_sb_info *sbinfo = SHMEM_SB(inode->i_sb);struct shmem_inode_info *info = SHMEM_I(inode);struct shmem_falloc shmem_falloc;pgoff_t start, index, end, undo_fallocend;int error;// 检查模式：只支持 KEEP_SIZE 和 PUNCH_HOLEif (mode & ~(FALLOC_FL_KEEP_SIZE | FALLOC_FL_PUNCH_HOLE))return -EOPNOTSUPP;// 获取 inode 锁（防止并发修改）inode_lock(inode);if (mode & FALLOC_FL_PUNCH_HOLE) {struct address_space *mapping = file->f_mapping;// 对齐到页边界：向上取整起始位置，向下取整结束位置loff_t unmap_start = round_up(offset, PAGE_SIZE);loff_t unmap_end = round_down(offset + len, PAGE_SIZE) - 1;// 在栈上声明等待队列头（用于同步打洞和 page fault）DECLARE_WAIT_QUEUE_HEAD_ONSTACK(shmem_falloc_waitq);// 检查文件密封：如果文件被密封为只写，不允许打洞if (info->seals & (F_SEAL_WRITE | F_SEAL_FUTURE_WRITE)) {            error = -EPERM;goto out;        }// 步骤1: 设置 shmem_falloc 结构        shmem_falloc.waitq = &shmem_falloc_waitq;  // 等待队列        shmem_falloc.start = (u64)unmap_start >> PAGE_SHIFT;  // 起始页号        shmem_falloc.next = (unmap_end + 1) >> PAGE_SHIFT;    // 结束页号+1// 步骤2: 将 shmem_falloc 保存到 inode->i_private// 这样 shmem_fault() 可以检测到正在打洞spin_lock(&inode->i_lock);        inode->i_private = &shmem_falloc;spin_unlock(&inode->i_lock);// 步骤3: 取消映射 VMA 中的页面（如果有多个进程映射）if ((u64)unmap_end > (u64)unmap_start)unmap_mapping_range(mapping, unmap_start,1 + unmap_end - unmap_start, 0);// 步骤4: 截断页面缓存和交换空间shmem_truncate_range(inode, offset, offset + len - 1);/* No need to unmap again: hole-punching leaves COWed pages */// 步骤5: 清除标记并唤醒所有等待的线程spin_lock(&inode->i_lock);        inode->i_private = NULL;  // 清除标记wake_up_all(&shmem_falloc_waitq);  // 唤醒等待的 page fault 线程WARN_ON_ONCE(!list_empty(&shmem_falloc_waitq.head));spin_unlock(&inode->i_lock);        error = 0;goto out;    }

voidunmap_mapping_range(struct address_space *mapping,loff_tconst holebegin, loff_tconst holelen, int even_cows){// 将字节偏移转换为页号pgoff_t hba = (pgoff_t)(holebegin) >> PAGE_SHIFT;pgoff_t hlen = ((pgoff_t)(holelen) + PAGE_SIZE - 1) >> PAGE_SHIFT;// 检查溢出if (sizeof(holelen) > sizeof(hlen)) {longlong holeend =            (holebegin + holelen + PAGE_SIZE - 1) >> PAGE_SHIFT;if (holeend & ~(longlong)ULONG_MAX)            hlen = ULONG_MAX - hba + 1;    }// 调用实际取消映射函数unmap_mapping_pages(mapping, hba, hlen, even_cows);}

voidunmap_mapping_pages(struct address_space *mapping, pgoff_t start,pgoff_t nr, bool even_cows){struct zap_details details = { };pgoff_t first_index = start;pgoff_t last_index = start + nr - 1;    details.even_cows = even_cows;  // 是否取消映射 COW 页面if (last_index < first_index)        last_index = ULONG_MAX;// 获取映射锁（读锁，允许多个读者）i_mmap_lock_read(mapping);// 如果 i_mmap 树不为空，遍历并取消映射if (unlikely(!RB_EMPTY_ROOT(&mapping->i_mmap.rb_root)))unmap_mapping_range_tree(&mapping->i_mmap, first_index,                     last_index, &details);i_mmap_unlock_read(mapping);}

voidshmem_truncate_range(struct inode *inode, loff_t lstart, loff_t lend){// 调用核心实现函数shmem_undo_range(inode, lstart, lend, false);// 更新修改时间和变更时间inode_set_mtime_to_ts(inode, inode_set_ctime_current(inode));// 增加版本号（用于缓存失效）inode_inc_iversion(inode);}截断前：┌─────────────────────────────────────────┐│  address_space->i_pages (XArray)       ││  ┌─────┬─────┬─────┬─────┬─────┐      ││  │  0  │  1  │  2  │  3  │  4  │      ││  └─────┴─────┴─────┴─────┴─────┘      ││    │     │     │     │     │           ││    ▼     ▼     ▼     ▼     ▼           ││  folio  folio folio folio folio        ││    A     B     C     D     E            │└─────────────────────────────────────────┘执行: truncate_inode_pages_range(mapping, 4096, 12287)范围: [1K, 12K) = 页号 [1, 3)截断后：┌─────────────────────────────────────────┐│  address_space->i_pages (XArray)       ││  ┌─────┬─────┬─────┬─────┬─────┐      ││  │  0  │NULL │NULL │NULL │  4  │      ││  └─────┴─────┴─────┴─────┴─────┘      ││    │           │           │           ││    ▼           │           │           ││  folio         │           │           ││    A           │           │           ││                │           │           ││            [已删除]    [已删除]        ││            folio B    folio C          ││            folio D                      │└─────────────────────────────────────────┘操作：1. folio B, C, D 从 XArray 中删除（xas_store(&xas, NULL)）2. folio->mapping = NULL（断开关联）3. mapping->nrpages -= 3（更新统计）4. folio 引用计数减 1，如果为 0 则释放到伙伴系统

voidunmap_mapping_pages(struct address_space *mapping, pgoff_t start,pgoff_t nr, bool even_cows){struct zap_details details = { };pgoff_t first_index = start;pgoff_t last_index = start + nr - 1;    details.even_cows = even_cows;  // 是否取消映射 COW 页面if (last_index < first_index)        last_index = ULONG_MAX;// 获取映射锁（读锁，允许多个读者）i_mmap_lock_read(mapping);// 如果 i_mmap 树不为空，遍历并取消映射if (unlikely(!RB_EMPTY_ROOT(&mapping->i_mmap.rb_root)))unmap_mapping_range_tree(&mapping->i_mmap, first_index,                     last_index, &details);i_mmap_unlock_read(mapping);}

staticvoidshmem_undo_range(struct inode *inode, loff_t lstart, loff_t lend,bool unfalloc){struct address_space *mapping = inode->i_mapping;struct shmem_inode_info *info = SHMEM_I(inode);// 将字节偏移转换为页号pgoff_t start = (lstart + PAGE_SIZE - 1) >> PAGE_SHIFT;pgoff_t end = (lend + 1) >> PAGE_SHIFT;struct folio_batch fbatch;pgoff_t indices[PAGEVEC_SIZE];struct folio *folio;bool same_folio;long nr_swaps_freed = 0;pgoff_t index;int i;if (lend == -1)        end = -1;   /* unsigned, so actually very big */// 如果是在撤销失败的 fallocate，更新 fallocendif (info->fallocend > start && info->fallocend <= end && !unfalloc)        info->fallocend = start;// 初始化 folio 批次folio_batch_init(&fbatch);    index = start;// 第一阶段：查找并锁定范围内的所有 foliowhile (index < end && find_lock_entries(mapping, &index, end - 1,            &fbatch, indices)) {for (i = 0; i < folio_batch_count(&fbatch); i++) {            folio = fbatch.folios[i];// 如果是交换条目（xa_is_value）if (xa_is_value(folio)) {if (unfalloc)continue;// 释放交换空间                nr_swaps_freed += shmem_free_swap(mapping,                            indices[i], folio);continue;            }// 如果是普通 folio，截断它if (!unfalloc || !folio_test_uptodate(folio))truncate_inode_folio(mapping, folio);folio_unlock(folio);        }folio_batch_remove_exceptionals(&fbatch);folio_batch_release(&fbatch);cond_resched();  // 让出 CPU，避免长时间占用    }// 第二阶段：处理部分页（跨页边界的情况）if (unfalloc)goto whole_folios;    same_folio = (lstart >> PAGE_SHIFT) == (lend >> PAGE_SHIFT);// 处理起始页的部分    folio = shmem_get_partial_folio(inode, lstart >> PAGE_SHIFT);if (folio) {        same_folio = lend < folio_pos(folio) + folio_size(folio);folio_mark_dirty(folio);// 截断部分 folioif (!truncate_inode_partial_folio(folio, lstart, lend)) {            start = folio_next_index(folio);if (same_folio)                end = folio->index;        }folio_unlock(folio);folio_put(folio);        folio = NULL;    }// 处理结束页的部分（如果与起始页不同）if (!same_folio)        folio = shmem_get_partial_folio(inode, lend >> PAGE_SHIFT);if (folio) {folio_mark_dirty(folio);if (!truncate_inode_partial_folio(folio, lstart, lend))            end = folio->index;folio_unlock(folio);folio_put(folio);    }whole_folios:// 第三阶段：处理完整的 folio    index = start;while (index < end) {cond_resched();// 查找范围内的 folioif (!find_get_entries(mapping, &index, end - 1, &fbatch,                indices)) {/* If all gone or hole-punch or unfalloc, we're done */if (index == start || end != -1)break;/* But if truncating, restart to make sure all gone */            index = start;continue;        }for (i = 0; i < folio_batch_count(&fbatch); i++) {            folio = fbatch.folios[i];// 处理交换条目if (xa_is_value(folio)) {long swaps_freed;if (unfalloc)continue;                swaps_freed = shmem_free_swap(mapping, indices[i], folio);if (!swaps_freed) {/* Swap was replaced by page: retry */                    index = indices[i];break;                }                nr_swaps_freed += swaps_freed;continue;            }folio_lock(folio);if (!unfalloc || !folio_test_uptodate(folio)) {if (folio_mapping(folio) != mapping) {/* Page was replaced by swap: retry */folio_unlock(folio);                    index = indices[i];break;                }VM_BUG_ON_FOLIO(folio_test_writeback(folio),                        folio);// 根据 folio 大小选择不同的截断方式if (!folio_test_large(folio)) {// 普通页：直接截断truncate_inode_folio(mapping, folio);                } else if (truncate_inode_partial_folio(folio, lstart, lend)) {// 大页：部分截断，可能需要分割/*                     * If we split a page, reset the loop so                     * that we pick up the new sub pages.                     */if (!folio_test_large(folio)) {folio_unlock(folio);                        index = start;  // 重置索引，重新处理break;                    }                }            }folio_unlock(folio);        }folio_batch_remove_exceptionals(&fbatch);folio_batch_release(&fbatch);    }// 重新计算 inode 的统计信息（释放的交换空间）shmem_recalc_inode(inode, 0, -nr_swaps_freed);}

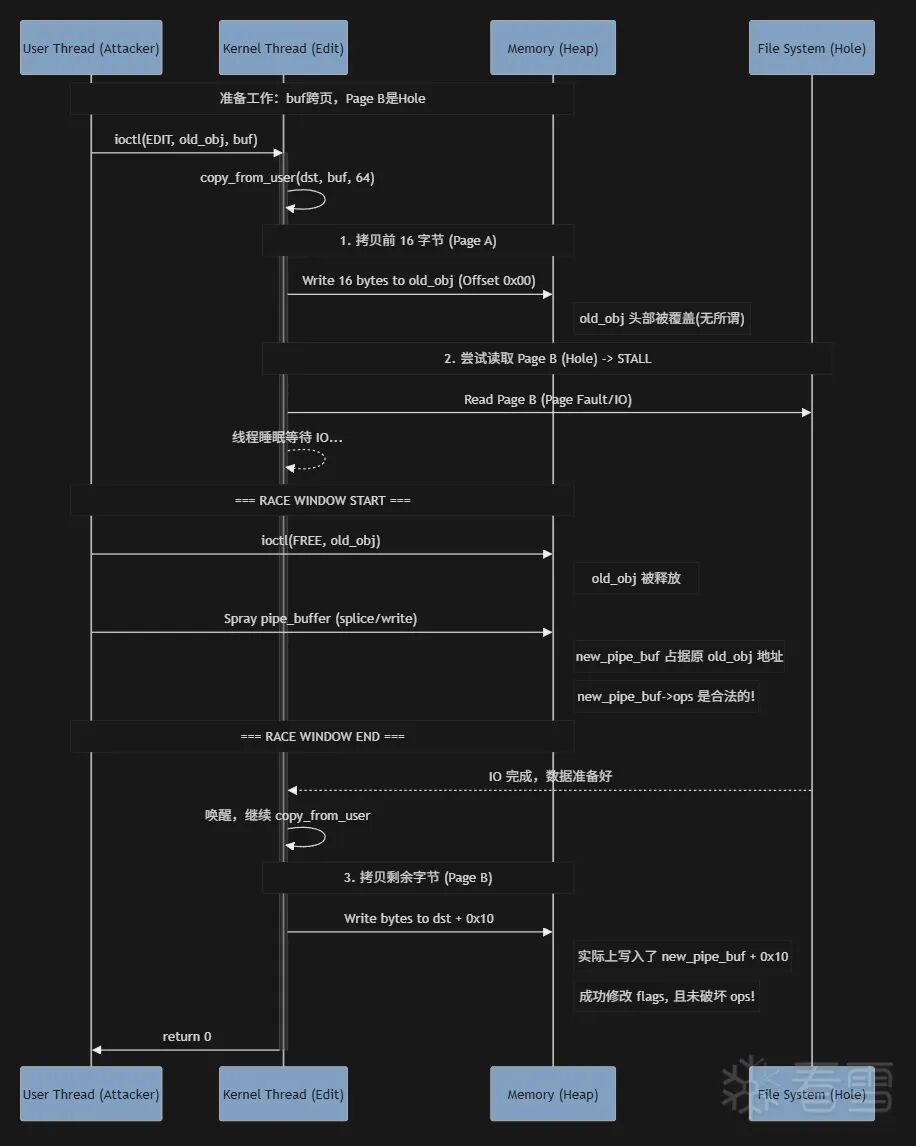

用户空间: copy_from_user(dst, src, size)    ↓内核空间: copy_from_user() [include/linux/uaccess.h:205]    ↓    _copy_from_user() / _inline_copy_from_user()    ↓    raw_copy_from_user() [arch/x86/include/asm/uaccess_64.h:139]    ↓    copy_user_generic() [汇编实现，使用 rep movsb]    ↓    [CPU 触发 #PF 异常，因为访问了未映射的页面]    ↓中断处理: exc_page_fault() [arch/x86/mm/fault.c:1493]    ↓    handle_page_fault() [arch/x86/mm/fault.c:1469]    ↓    do_user_addr_fault() [arch/x86/mm/fault.c:1211]    ↓    handle_mm_fault() [mm/memory.c:6046]    ↓    __handle_mm_fault() [mm/memory.c:5820]    ↓    handle_pte_fault() [mm/memory.c:5736]    ↓    do_pte_missing() [mm/memory.c:3959]    ↓    do_fault() [mm/memory.c:5405]    ↓    do_read_fault() [mm/memory.c:5281]  (因为是读操作)    ↓    __do_fault() [mm/memory.c:4854]    ↓    vma->vm_ops->fault()  [对于 shmem 文件，指向 shmem_fault]    ↓    shmem_fault() [mm/shmem.c:2515]    ↓    shmem_falloc_wait() [mm/shmem.c:2474]  ← 关键：检查是否正在打洞    ↓    schedule()  ← 线程被阻塞，等待打洞完成

shmem_falloc_wait() 返回 VM_FAULT_RETRY    ↓向上传播到 do_user_addr_fault()    ↓检测到 fault & VM_FAULT_RETRY    ↓设置 flags |= FAULT_FLAG_TRIED    ↓goto retry - 跳回 retry 标签    ↓重新获取 VMA 锁 (lock_mm_and_find_vma)    ↓重新调用 handle_mm_fault()    ↓再次进入 shmem_fault()    ↓这次 inode->i_private 已经为空（打洞完成）    ↓正常调用 shmem_get_folio_gfp() 分配页面    ↓完成页面映射，返回成功

static __always_inline unsignedlong __must_checkcopy_from_user(void *to, constvoid __user *from, unsignedlong n){if (!check_copy_size(to, n, false))return n;#ifdef INLINE_COPY_FROM_USERreturn _inline_copy_from_user(to, from, n);#elsereturn _copy_from_user(to, from, n);#endif}

static __always_inline __must_check unsignedlongraw_copy_from_user(void *dst, constvoid __user *src, unsignedlong size){return copy_user_generic(dst, (__force void *)src, size);}

DEFINE_IDTENTRY_RAW_ERRORCODE(exc_page_fault){irqentry_state_t state;unsignedlong address;        address = cpu_feature_enabled(X86_FEATURE_FRED) ? fred_event_data(regs) : read_cr2();prefetchw(¤t->mm->mmap_lock);/*         * KVM uses #PF vector to deliver 'page not present' events to guests         * (asynchronous page fault mechanism). The event happens when a         * userspace task is trying to access some valid (from guest's point of         * view) memory which is not currently mapped by the host (e.g. the         * memory is swapped out). Note, the corresponding "page ready" event         * which is injected when the memory becomes available, is delivered via         * an interrupt mechanism and not a #PF exception         * (see arch/x86/kernel/kvm.c: sysvec_kvm_asyncpf_interrupt()).         *         * We are relying on the interrupted context being sane (valid RSP,         * relevant locks not held, etc.), which is fine as long as the         * interrupted context had IF=1.  We are also relying on the KVM         * async pf type field and CR2 being read consistently instead of         * getting values from real and async page faults mixed up.         *         * Fingers crossed.         *         * The async #PF handling code takes care of idtentry handling         * itself.         */if (kvm_handle_async_pf(regs, (u32)address))return;/*         * Entry handling for valid #PF from kernel mode is slightly         * different: RCU is already watching and ct_irq_enter() must not         * be invoked because a kernel fault on a user space address might         * sleep.         *         * In case the fault hit a RCU idle region the conditional entry         * code reenabled RCU to avoid subsequent wreckage which helps         * debuggability.         */        state = irqentry_enter(regs);instrumentation_begin();handle_page_fault(regs, error_code, address);instrumentation_end();irqentry_exit(regs, state);}

static inlinevoid do_user_addr_fault(struct pt_regs *regs,                        unsigned long error_code,                        unsigned long address){        struct vm_area_struct *vma;        struct task_struct *tsk;        struct mm_struct *mm;        vm_fault_t fault;        unsigned int flags = FAULT_FLAG_DEFAULT;        tsk = current;        mm = tsk->mm;if (unlikely((error_code & (X86_PF_USER | X86_PF_INSTR)) == X86_PF_INSTR)) {/*                 * Whoops, this is kernel mode code trying to execute from                 * user memory.  Unless this is AMD erratum #93, which                 * corrupts RIP such that it looks like a user address,                 * this is unrecoverable.  Don't even try to look up the                 * VMA or look for extable entries.                 */if (is_errata93(regs, address))return;                page_fault_oops(regs, error_code, address);return;        }/* kprobes don't want to hook the spurious faults: */if (WARN_ON_ONCE(kprobe_page_fault(regs, X86_TRAP_PF)))return;/*         * Reserved bits are never expected to be set on         * entries in the user portion of the page tables.         */if (unlikely(error_code & X86_PF_RSVD))                pgtable_bad(regs, error_code, address);/*         * If SMAP is on, check for invalid kernel (supervisor) access to user         * pages in the user address space.  The odd case here is WRUSS,         * which, according to the preliminary documentation, does not respect         * SMAP and will have the USER bit set so, in all cases, SMAP         * enforcement appears to be consistent with the USER bit.         */if (unlikely(cpu_feature_enabled(X86_FEATURE_SMAP) &&                     !(error_code & X86_PF_USER) &&                     !(regs->flags & X86_EFLAGS_AC))) {/*                 * No extable entry here.  This was a kernel access to an                 * invalid pointer.  get_kernel_nofault() will not get here.                 */                page_fault_oops(regs, error_code, address);return;        }/*         * If we're in an interrupt, have no user context or are running         * in a region with pagefaults disabled then we must not take the fault         */if (unlikely(faulthandler_disabled() || !mm)) {                bad_area_nosemaphore(regs, error_code, address);return;        }/* Legacy check - remove this after verifying that it doesn't trigger */if (WARN_ON_ONCE(!(regs->flags & X86_EFLAGS_IF))) {                bad_area_nosemaphore(regs, error_code, address);return;        }        local_irq_enable();        perf_sw_event(PERF_COUNT_SW_PAGE_FAULTS, 1, regs, address);/*         * Read-only permissions can not be expressed in shadow stack PTEs.         * Treat all shadow stack accesses as WRITE faults. This ensures         * that the MM will prepare everything (e.g., break COW) such that         * maybe_mkwrite() can create a proper shadow stack PTE.         */if (error_code & X86_PF_SHSTK)                flags |= FAULT_FLAG_WRITE;if (error_code & X86_PF_WRITE)                flags |= FAULT_FLAG_WRITE;if (error_code & X86_PF_INSTR)                flags |= FAULT_FLAG_INSTRUCTION;/*         * We set FAULT_FLAG_USER based on the register state, not         * based on X86_PF_USER. User space accesses that cause         * system page faults are still user accesses.         */if (user_mode(regs))                flags |= FAULT_FLAG_USER;#ifdef CONFIG_X86_64/*         * Faults in the vsyscall page might need emulation.  The         * vsyscall page is at a high address (>PAGE_OFFSET), but is         * considered to be part of the user address space.         *         * The vsyscall page does not have a "real" VMA, so do this         * emulation before we go searching for VMAs.         *         * PKRU never rejects instruction fetches, so we don't need         * to consider the PF_PK bit.         */if (is_vsyscall_vaddr(address)) {if (emulate_vsyscall(error_code, regs, address))return;        }#endifif (!(flags & FAULT_FLAG_USER))                goto lock_mmap;        vma = lock_vma_under_rcu(mm, address);if (!vma)                goto lock_mmap;if (unlikely(access_error(error_code, vma))) {                bad_area_access_error(regs, error_code, address, NULL, vma);                count_vm_vma_lock_event(VMA_LOCK_SUCCESS);return;        }        fault = handle_mm_fault(vma, address, flags | FAULT_FLAG_VMA_LOCK, regs);if (!(fault & (VM_FAULT_RETRY | VM_FAULT_COMPLETED)))                vma_end_read(vma);if (!(fault & VM_FAULT_RETRY)) {                count_vm_vma_lock_event(VMA_LOCK_SUCCESS);                goto done;        }        count_vm_vma_lock_event(VMA_LOCK_RETRY);if (fault & VM_FAULT_MAJOR)                flags |= FAULT_FLAG_TRIED;/* Quick path to respond to signals */if (fault_signal_pending(fault, regs)) {if (!user_mode(regs))                        kernelmode_fixup_or_oops(regs, error_code, address,                                                 SIGBUS, BUS_ADRERR,                                                 ARCH_DEFAULT_PKEY);return;        }lock_mmap:retry:        vma = lock_mm_and_find_vma(mm, address, regs);if (unlikely(!vma)) {                bad_area_nosemaphore(regs, error_code, address);return;        }/*         * Ok, we have a good vm_area for this memory access, so         * we can handle it..         */if (unlikely(access_error(error_code, vma))) {                bad_area_access_error(regs, error_code, address, mm, vma);return;        }/*         * If for any reason at all we couldn't handle the fault,         * make sure we exit gracefully rather than endlessly redo         * the fault.  Since we never set FAULT_FLAG_RETRY_NOWAIT, if         * we get VM_FAULT_RETRY back, the mmap_lock has been unlocked.         *         * Note that handle_userfault() may also release and reacquire mmap_lock         * (and not return with VM_FAULT_RETRY), when returning to userland to         * repeat the page fault later with a VM_FAULT_NOPAGE retval         * (potentially after handling any pending signal during the return to         * userland). The return to userland is identified whenever         * FAULT_FLAG_USER|FAULT_FLAG_KILLABLE are both set in flags.         */        fault = handle_mm_fault(vma, address, flags, regs);if (fault_signal_pending(fault, regs)) {/*                 * Quick path to respond to signals.  The core mm code                 * has unlocked the mm for us if we get here.                 */if (!user_mode(regs))                        kernelmode_fixup_or_oops(regs, error_code, address,                                                 SIGBUS, BUS_ADRERR,                                                 ARCH_DEFAULT_PKEY);return;        }/* The fault is fully completed (including releasing mmap lock) */if (fault & VM_FAULT_COMPLETED)return;/*         * If we need to retry the mmap_lock has already been released,         * and if there is a fatal signal pending there is no guarantee         * that we made any progress. Handle this case first.         */if (unlikely(fault & VM_FAULT_RETRY)) {                flags |= FAULT_FLAG_TRIED;                goto retry;        }        mmap_read_unlock(mm);done:if (likely(!(fault & VM_FAULT_ERROR)))return;if (fatal_signal_pending(current) && !user_mode(regs)) {                kernelmode_fixup_or_oops(regs, error_code, address,0, 0, ARCH_DEFAULT_PKEY);return;        }if (fault & VM_FAULT_OOM) {/* Kernel mode? Handle exceptions or die: */if (!user_mode(regs)) {                        kernelmode_fixup_or_oops(regs, error_code, address,                                                 SIGSEGV, SEGV_MAPERR,                                                 ARCH_DEFAULT_PKEY);return;                }/*                 * We ran out of memory, call the OOM killer, and return the                 * userspace (which will retry the fault, or kill us if we got                 * oom-killed):                 */                pagefault_out_of_memory();        } else {if (fault & (VM_FAULT_SIGBUS|VM_FAULT_HWPOISON|                             VM_FAULT_HWPOISON_LARGE))                        do_sigbus(regs, error_code, address, fault);else if (fault & VM_FAULT_SIGSEGV)                        bad_area_nosemaphore(regs, error_code, address);else                        BUG();        }}NOKPROBE_SYMBOL(do_user_addr_fault);

CPU 硬件检测    ↓ (触发 #PF 异常)软件层页表遍历 (__handle_mm_fault)    ├─ PGD → P4D → PUD → PMD → PTE    ├─ 检查大页 (PUD/PMD 级别)    └─ 都不是大页 → handle_pte_fault()        ↓handle_pte_fault() 检查 PTE    ├─ pte_none() → do_pte_missing() → do_fault() → shmem_fault()    ├─ !pte_present() → do_swap_page() (页面在 swap)    └─ pte_present() → 处理权限问题或更新访问标志

/** * handle_mm_fault - 页错误处理的主入口函数 * @vma: 发生页错误的虚拟内存区域 * @address: 触发页错误的地址 * @flags: 页错误标志（FAULT_FLAG_USER, FAULT_FLAG_WRITE 等） * @regs: 寄存器状态（可选，用于统计） * * 功能说明： *   这是内存管理子系统处理页错误的主要入口点。 *   在 do_user_addr_fault() 中找到 VMA 后，会调用此函数。 * * 处理流程： *   1. 验证 VMA 访问权限 *   2. 处理内存控制组（memcg）和 LRU 相关逻辑 *   3. 区分大页（hugetlb）和普通页，分别处理 *   4. 对于普通页，调用 __handle_mm_fault() 进行页表遍历和 PTE 处理 * * 返回值： *   VM_FAULT_* 系列返回值，表示页错误处理结果 * * 注意： *   函数返回后，vma 可能已经被释放（如果 mmap_lock 被释放）， *   因此不能再访问 vma 指针。 */vm_fault_thandle_mm_fault(struct vm_area_struct *vma, unsignedlong address,unsignedint flags, struct pt_regs *regs){/* If the fault handler drops the mmap_lock, vma may be freed */struct mm_struct *mm = vma->vm_mm;vm_fault_t ret;bool is_droppable;        __set_current_state(TASK_RUNNING);        ret = sanitize_fault_flags(vma, &flags);if (ret)goto out;if (!arch_vma_access_permitted(vma, flags & FAULT_FLAG_WRITE,                                       flags & FAULT_FLAG_INSTRUCTION,                                       flags & FAULT_FLAG_REMOTE)) {                ret = VM_FAULT_SIGSEGV;goto out;        }        is_droppable = !!(vma->vm_flags & VM_DROPPABLE);/*         * Enable the memcg OOM handling for faults triggered in user         * space.  Kernel faults are handled more gracefully.         */if (flags & FAULT_FLAG_USER)mem_cgroup_enter_user_fault();lru_gen_enter_fault(vma);if (unlikely(is_vm_hugetlb_page(vma)))                ret = hugetlb_fault(vma->vm_mm, vma, address, flags);else                ret = __handle_mm_fault(vma, address, flags);/*         * Warning: It is no longer safe to dereference vma-> after this point,         * because mmap_lock might have been dropped by __handle_mm_fault(), so         * vma might be destroyed from underneath us.         */lru_gen_exit_fault();/* If the mapping is droppable, then errors due to OOM aren't fatal. */if (is_droppable)                ret &= ~VM_FAULT_OOM;if (flags & FAULT_FLAG_USER) {mem_cgroup_exit_user_fault();/*                 * The task may have entered a memcg OOM situation but                 * if the allocation error was handled gracefully (no                 * VM_FAULT_OOM), there is no need to kill anything.                 * Just clean up the OOM state peacefully.                 */if (task_in_memcg_oom(current) && !(ret & VM_FAULT_OOM))mem_cgroup_oom_synchronize(false);        }out:mm_account_fault(mm, regs, address, flags, ret);return ret;}EXPORT_SYMBOL_GPL(handle_mm_fault);

/** * __handle_mm_fault - 页表遍历和页错误处理的核心函数 * @vma: 发生页错误的虚拟内存区域 * @address: 触发页错误的地址 * @flags: 页错误标志 * * 功能说明： *   这是页错误处理的核心函数，负责遍历页表结构并处理不同级别的页错误。 *   对于 punch hole 场景，最终会遍历到 PTE 级别，发现 PTE 为空后调用 *   handle_pte_fault() 处理。 * * 页表遍历流程（x86_64 五级页表）： *   PGD (Page Global Directory) *     ↓ *   P4D (Page 4th Directory) *     ↓ *   PUD (Page Upper Directory) - 检查是否为大页（1GB） *     ↓ *   PMD (Page Middle Directory) - 检查是否为大页（2MB） *     ↓ *   PTE (Page Table Entry) - 普通页（4KB） * * 处理逻辑： *   1. 逐级分配页表项（如果不存在） *   2. 检查每一级是否为大页（THP），如果是则特殊处理 *   3. 如果都不是大页，继续到下一级 *   4. 最终到达 PTE 级别，调用 handle_pte_fault() 处理 * * 对于 punch hole 场景： *   - PTE 为空（pte_none），表示页面未映射 *   - handle_pte_fault() 会检测到并调用 do_pte_missing() *   - 最终调用文件系统的 fault 处理函数（如 shmem_fault） */static vm_fault_t __handle_mm_fault(struct vm_area_struct *vma,                                    unsigned long address, unsigned int flags){        struct vm_fault vmf = {                .vma = vma,                .address = address & PAGE_MASK,                .real_address = address,                .flags = flags,                .pgoff = linear_page_index(vma, address),                .gfp_mask = __get_fault_gfp_mask(vma),        };        struct mm_struct *mm = vma->vm_mm;        unsigned long vm_flags = vma->vm_flags;        pgd_t *pgd;        p4d_t *p4d;        vm_fault_t ret;/* 步骤1: 遍历 PGD 和 P4D */        pgd = pgd_offset(mm, address);        p4d = p4d_alloc(mm, pgd, address);if (!p4d)return VM_FAULT_OOM;/* 步骤2: 遍历 PUD，检查是否为大页（1GB） */        vmf.pud = pud_alloc(mm, p4d, address);if (!vmf.pud)return VM_FAULT_OOM;retry_pud:if (pud_none(*vmf.pud) &&            thp_vma_allowable_order(vma, vm_flags,                                    TVA_IN_PF | TVA_ENFORCE_SYSFS, PUD_ORDER)) {                ret = create_huge_pud(&vmf);if (!(ret & VM_FAULT_FALLBACK))return ret;        } else {                pud_t orig_pud = *vmf.pud;                barrier();if (pud_trans_huge(orig_pud) || pud_devmap(orig_pud)) {/*                         * TODO once we support anonymous PUDs: NUMA case and                         * FAULT_FLAG_UNSHARE handling.                         */if ((flags & FAULT_FLAG_WRITE) &&                            !pud_write(orig_pud)) {                                ret = wp_huge_pud(&vmf, orig_pud);if (!(ret & VM_FAULT_FALLBACK))return ret;                        } else {                                huge_pud_set_accessed(&vmf, orig_pud);return 0;                        }                }        }/* 步骤3: 遍历 PMD，检查是否为大页（2MB） */        vmf.pmd = pmd_alloc(mm, vmf.pud, address);if (!vmf.pmd)return VM_FAULT_OOM;/* Huge pud page fault raced with pmd_alloc? */if (pud_trans_unstable(vmf.pud))                goto retry_pud;if (pmd_none(*vmf.pmd) &&            thp_vma_allowable_order(vma, vm_flags,                                    TVA_IN_PF | TVA_ENFORCE_SYSFS, PMD_ORDER)) {                ret = create_huge_pmd(&vmf);if (!(ret & VM_FAULT_FALLBACK))return ret;        } else {                vmf.orig_pmd = pmdp_get_lockless(vmf.pmd);if (unlikely(is_swap_pmd(vmf.orig_pmd))) {                        VM_BUG_ON(thp_migration_supported() &&                                  !is_pmd_migration_entry(vmf.orig_pmd));if (is_pmd_migration_entry(vmf.orig_pmd))                                pmd_migration_entry_wait(mm, vmf.pmd);return 0;                }if (pmd_trans_huge(vmf.orig_pmd) || pmd_devmap(vmf.orig_pmd)) {if (pmd_protnone(vmf.orig_pmd) &&                            vma_is_accessible(vma))return do_huge_pmd_numa_page(&vmf);if ((flags & (FAULT_FLAG_WRITE | FAULT_FLAG_UNSHARE)) &&                            !pmd_write(vmf.orig_pmd)) {                                ret = wp_huge_pmd(&vmf);if (!(ret & VM_FAULT_FALLBACK))return ret;                        } else {                                huge_pmd_set_accessed(&vmf);return 0;                        }                }        }/* 步骤4: 都不是大页，处理普通页（4KB），检查 PTE */return handle_pte_fault(&vmf);}

/** * handle_pte_fault - 处理 PTE（页表项）级别的页错误 * @vmf: 页错误描述结构体 * * 功能说明： *   这是页表遍历的最后一级，负责检查和处理 PTE 的状态。 *   对于 punch hole 场景，PTE 为空（pte_none），表示页面未映射。 * * PTE 状态检查和处理： *   1. pte_none() - PTE 为空（页面未映射） *      → 调用 do_pte_missing() → do_fault() → shmem_fault() *      → 这是 punch hole 场景的路径！ * *   2. !pte_present() - PTE 存在但不是 present（页面在 swap） *      → 调用 do_swap_page() 从 swap 换入页面 * *   3. pte_protnone() - PTE 存在但权限不足（NUMA 页面） *      → 调用 do_numa_page() 处理 NUMA 迁移 * *   4. pte_present() - PTE 存在且有效 *      → 检查写权限，处理写时复制（COW）或更新访问标志 * * 对于 punch hole 攻击： *   当访问被 fallocate PUNCH_HOLE 打洞的地址时： *   - PTE 为空（pte_none），vmf->pte 被设置为 NULL *   - 调用 do_pte_missing() 处理缺失的页面 *   - 最终会调用文件系统的 fault 处理函数 */static vm_fault_t handle_pte_fault(struct vm_fault *vmf){        pte_t entry;if (unlikely(pmd_none(*vmf->pmd))) {/*                 * Leave __pte_alloc() until later: because vm_ops->fault may                 * want to allocate huge page, and if we expose page table                 * for an instant, it will be difficult to retract from                 * concurrent faults and from rmap lookups.                 */                vmf->pte = NULL;                vmf->flags &= ~FAULT_FLAG_ORIG_PTE_VALID;        } else {/*                 * A regular pmd is established and it can't morph into a huge                 * pmd by anon khugepaged, since that takes mmap_lock in write                 * mode; but shmem or file collapse to THP could still morph                 * it into a huge pmd: just retry later if so.                 *//* 获取 PTE 指针 */                vmf->pte = pte_offset_map_nolock(vmf->vma->vm_mm, vmf->pmd,                                                 vmf->address, &vmf->ptl);if (unlikely(!vmf->pte))return 0;/* 读取 PTE 的值（无锁读取） */                vmf->orig_pte = ptep_get_lockless(vmf->pte);                vmf->flags |= FAULT_FLAG_ORIG_PTE_VALID;/* 关键检查：如果 PTE 为空（页面未映射，例如被 punch hole） */if (pte_none(vmf->orig_pte)) {pte_unmap(vmf->pte);                        vmf->pte = NULL; /* 标记 PTE 不存在 */                }        }/* 情况1: PTE 为空（页面未映射）- punch hole 场景走这里 */if (!vmf->pte)return do_pte_missing(vmf);/* 情况2: PTE 存在但不是 present（页面在 swap 中） */if (!pte_present(vmf->orig_pte))return do_swap_page(vmf);/* 情况3: PTE 存在但权限不足（NUMA 页面） */if (pte_protnone(vmf->orig_pte) && vma_is_accessible(vmf->vma))return do_numa_page(vmf);spin_lock(vmf->ptl);        entry = vmf->orig_pte;if (unlikely(!pte_same(ptep_get(vmf->pte), entry))) {update_mmu_tlb(vmf->vma, vmf->address, vmf->pte);                goto unlock;        }if (vmf->flags & (FAULT_FLAG_WRITE | FAULT_FLAG_UNSHARE)) {if (!pte_write(entry))return do_wp_page(vmf);else if (likely(vmf->flags & FAULT_FLAG_WRITE))                        entry = pte_mkdirty(entry);        }        entry = pte_mkyoung(entry);if (ptep_set_access_flags(vmf->vma, vmf->address, vmf->pte, entry,                                  vmf->flags & FAULT_FLAG_WRITE)) {update_mmu_cache_range(vmf, vmf->vma, vmf->address, vmf->pte,1);        } else {/* Skip spurious TLB flush for retried page fault */if (vmf->flags & FAULT_FLAG_TRIED)                        goto unlock;/*                 * This is needed only for protection faults but the arch code                 * is not yet telling us if this is a protection fault or not.                 * This still avoids useless tlb flushes for .text page faults                 * with threads.                 */if (vmf->flags & FAULT_FLAG_WRITE)flush_tlb_fix_spurious_fault(vmf->vma, vmf->address,                                                     vmf->pte);        }unlock:pte_unmap_unlock(vmf->pte, vmf->ptl);return 0;}

/** * do_pte_missing - 处理 PTE 为空（页面未映射）的情况 * @vmf: 页错误描述结构体 * * 功能说明： *   当 handle_pte_fault() 检测到 PTE 为空时调用此函数。 *   这是 punch hole 攻击场景的关键路径。 * * 处理逻辑： *   - 匿名 VMA（匿名内存映射）：调用 do_anonymous_page() 分配新页面 *   - 文件映射 VMA（如 shmem 文件）：调用 do_fault() 处理文件页错误 * * 对于 punch hole 场景： *   - shmem 文件映射走 do_fault() 路径 *   - 最终会调用 shmem_fault()，检测到正在打洞时会阻塞等待 */static vm_fault_t do_pte_missing(struct vm_fault *vmf){        if (vma_is_anonymous(vmf->vma))                return do_anonymous_page(vmf);        else                return do_fault(vmf);}

/** * do_fault - 处理文件映射的页错误 * @vmf: 页错误描述结构体 * * 功能说明： *   当 do_pte_missing() 检测到是文件映射（非匿名）时调用此函数。 *   根据访问类型（读/写）和 VMA 属性（共享/私有）选择不同的处理路径。 * * 处理路径： *   1. 没有 fault 处理函数：返回错误 *   2. 读操作（copy_from_user 是读）： *      → do_read_fault() → __do_fault() → vma->vm_ops->fault() *      → 对于 shmem: shmem_fault() *   3. 写操作 + 私有映射（COW）： *      → do_cow_fault() 写时复制 *   4. 写操作 + 共享映射： *      → do_shared_fault() 共享写入 * * 对于 punch hole 场景： *   - copy_from_user 是读操作，走 do_read_fault() 路径 *   - 最终调用 shmem_fault()，检测到正在打洞时会阻塞 */static vm_fault_t do_fault(struct vm_fault *vmf){struct vm_area_struct *vma = vmf->vma;struct mm_struct *vm_mm = vma->vm_mm;        vm_fault_t ret;/*         * The VMA was not fully populated on mmap() or missing VM_DONTEXPAND         */if (!vma->vm_ops->fault) {                vmf->pte = pte_offset_map_lock(vmf->vma->vm_mm, vmf->pmd,                                               vmf->address, &vmf->ptl);if (unlikely(!vmf->pte))                        ret = VM_FAULT_SIGBUS;else {/*                         * Make sure this is not a temporary clearing of pte                         * by holding ptl and checking again. A R/M/W update                         * of pte involves: take ptl, clearing the pte so that                         * we don't have concurrent modification by hardware                         * followed by an update.                         */if (unlikely(pte_none(ptep_get(vmf->pte))))                                ret = VM_FAULT_SIGBUS;else                                ret = VM_FAULT_NOPAGE;pte_unmap_unlock(vmf->pte, vmf->ptl);                }        } else if (!(vmf->flags & FAULT_FLAG_WRITE))/* 读操作：copy_from_user 走这里 */                ret = do_read_fault(vmf);else if (!(vma->vm_flags & VM_SHARED))/* 写操作 + 私有映射：写时复制 */                ret = do_cow_fault(vmf);else/* 写操作 + 共享映射：共享写入 */                ret = do_shared_fault(vmf);/* preallocated pagetable is unused: free it */if (vmf->prealloc_pte) {pte_free(vm_mm, vmf->prealloc_pte);                vmf->prealloc_pte = NULL;        }return ret;}

static vm_fault_t __do_fault(struct vm_fault *vmf){struct vm_area_struct *vma = vmf->vma;struct folio *folio;    vm_fault_t ret;/*     * Preallocate pte before we take page_lock because this might lead to     * deadlocks for memcg reclaim which waits for pages under writeback:     *              lock_page(A)     *              SetPageWriteback(A)     *              unlock_page(A)     * lock_page(B)     *              lock_page(B)     * pte_alloc_one     *   shrink_folio_list     *     wait_on_page_writeback(A)     *              SetPageWriteback(B)     *              unlock_page(B)     *              # flush A, B to clear the writeback     */if (pmd_none(*vmf->pmd) && !vmf->prealloc_pte) {        vmf->prealloc_pte = pte_alloc_one(vma->vm_mm);if (!vmf->prealloc_pte)return VM_FAULT_OOM;    }    ret = vma->vm_ops->fault(vmf);if (unlikely(ret & (VM_FAULT_ERROR | VM_FAULT_NOPAGE | VM_FAULT_RETRY |                VM_FAULT_DONE_COW)))return ret;    folio = page_folio(vmf->page);if (unlikely(PageHWPoison(vmf->page))) {        vm_fault_t poisonret = VM_FAULT_HWPOISON;if (ret & VM_FAULT_LOCKED) {if (page_mapped(vmf->page))unmap_mapping_folio(folio);/* Retry if a clean folio was removed from the cache. */if (mapping_evict_folio(folio->mapping, folio))                poisonret = VM_FAULT_NOPAGE;folio_unlock(folio);        }folio_put(folio);        vmf->page = NULL;return poisonret;    }if (unlikely(!(ret & VM_FAULT_LOCKED)))folio_lock(folio);elseVM_BUG_ON_PAGE(!folio_test_locked(folio), vmf->page);return ret;}

/** * shmem_falloc_wait - 等待 fallocate PUNCH_HOLE 操作完成 * @vmf: 页错误描述结构体 * @inode: shmem 文件的 inode * * 功能说明： *   这是 punch hole 攻击的核心函数！ *   当 shmem_fault() 检测到正在打洞时调用此函数。 * * 处理流程： *   1. 检查当前页号是否在打洞范围内 *   2. 准备等待队列，设置线程状态为 TASK_UNINTERRUPTIBLE *   3. 调用 schedule() 让出 CPU，线程被阻塞 *   4. 等待打洞线程完成并调用 wake_up_all() 唤醒 *   5. 清理等待状态，返回 VM_FAULT_RETRY 重试 * * 攻击利用： *   在 schedule() 阻塞期间： *   - copy_from_user 所在的线程被阻塞 *   - 攻击者可以利用这个时间窗口进行堆操作 *   - 例如：在 free 后、置空前进行 UAF 或 Double Free * * 时间窗口： *   - 从 schedule() 调用开始，到打洞完成并 wake_up_all() 为止 *   - 这个时间窗口足够长，可以进行多次堆操作 */static vm_fault_t shmem_falloc_wait(struct vm_fault *vmf, struct inode *inode){struct shmem_falloc *shmem_falloc;struct file *fpin = NULL;        vm_fault_t ret = 0;spin_lock(&inode->i_lock);        shmem_falloc = inode->i_private;/* 检查：当前页号是否在打洞范围内 */if (shmem_falloc && shmem_falloc->waitq &&            vmf->pgoff >= shmem_falloc->start &&            vmf->pgoff < shmem_falloc->next) {                wait_queue_head_t *shmem_falloc_waitq;DEFINE_WAIT_FUNC(shmem_fault_wait, synchronous_wake_function);                ret = VM_FAULT_NOPAGE;                fpin = maybe_unlock_mmap_for_io(vmf, NULL);                shmem_falloc_waitq = shmem_falloc->waitq;/* 步骤1: 准备等待，设置线程状态为不可中断睡眠 */prepare_to_wait(shmem_falloc_waitq, &shmem_fault_wait,                                TASK_UNINTERRUPTIBLE);spin_unlock(&inode->i_lock);/* 步骤2: 关键阻塞点 - 让出 CPU，线程被阻塞 *//* 攻击者可以利用这个时间窗口进行堆操作！ */schedule();/*                 * shmem_falloc_waitq points into the shmem_fallocate()                 * stack of the hole-punching task: shmem_falloc_waitq                 * is usually invalid by the time we reach here, but                 * finish_wait() does not dereference it in that case;                 * though i_lock needed lest racing with wake_up_all().                 *//* 步骤3: 打洞完成，被唤醒，清理等待状态 */spin_lock(&inode->i_lock);finish_wait(shmem_falloc_waitq, &shmem_fault_wait);        }spin_unlock(&inode->i_lock);if (fpin) {fput(fpin);/* 返回 RETRY，让调用者重试页错误处理 */                ret = VM_FAULT_RETRY;        }return ret;}

static vm_fault_t shmem_falloc_wait(struct vm_fault *vmf, struct inode *inode){struct shmem_falloc *shmem_falloc;struct file *fpin = NULL;    vm_fault_t ret = 0;spin_lock(&inode->i_lock);    shmem_falloc = inode->i_private;// 关键检查: 确认正在打洞，且当前页在打洞范围内if (shmem_falloc &&        shmem_falloc->waitq &&        vmf->pgoff >= shmem_falloc->start &&        vmf->pgoff < shmem_falloc->next) {        wait_queue_head_t *shmem_falloc_waitq;DEFINE_WAIT_FUNC(shmem_fault_wait, synchronous_wake_function);        ret = VM_FAULT_NOPAGE;        fpin = maybe_unlock_mmap_for_io(vmf, NULL);        shmem_falloc_waitq = shmem_falloc->waitq;// 关键步骤1: 准备等待prepare_to_wait(shmem_falloc_waitq, &shmem_fault_wait,                TASK_UNINTERRUPTIBLE);spin_unlock(&inode->i_lock);// 关键步骤2: 调用 schedule() 让出 CPU，线程被阻塞// 这里就是"慢页面错误"的关键！// 线程会一直等待，直到打洞完成并调用 wake_up_all()schedule();/*         * shmem_falloc_waitq points into the shmem_fallocate()         * stack of the hole-punching task: shmem_falloc_waitq         * is usually invalid by the time we reach here, but         * finish_wait() does not dereference it in that case;         * though i_lock needed lest racing with wake_up_all().         */// 防止在打洞期间将页面错误处理到洞中，避免打洞无法完成// 使用等待队列而非互斥锁，因为不能在 fault 处理中持有 i_rwsemspin_lock(&inode->i_lock);finish_wait(shmem_falloc_waitq, &shmem_fault_wait);    }spin_unlock(&inode->i_lock);if (fpin) {fput(fpin);        ret = VM_FAULT_RETRY;  // 返回 RETRY，让调用者重试    }return ret;}

    case 322376505:      v8 = allocated_objects[v9.index];if ( !v8 )return -1;if ( v9.length > 0x7FFFFFFFuLL )        BUG();return -(copy_from_user(v8, v9.buf, v9.length) != 0);
