linux系统编程(三):pthread线程本地存储TLS详解

  • 2026-10-03 20:56:30
linux系统编程(三):pthread线程本地存储TLS详解

线程本地存储 TLS 详解 —— pthread_setspecific 用法、场景、原理

一个 C 库函数失败后设了 errno = EINVAL,多线程并发跑时,为什么每个线程都能拿到属于自己的错误码、不会互相覆盖?答案是 TLS(Thread Local Storage,线程本地存储)。这篇把 pthread_setspecific 这套 API 的用法、典型场景、底层机制讲清楚。


0. 引言:errno 之谜

C 标准库到处都是这种代码:

fd = open("/some/file", O_RDONLY);if (fd < 0) {    perror("open failed");   /* 内部读 errno */    return -1;}

errno 是个全局变量。但多线程同时调 syscall 时它怎么不互相覆盖?

/* 线程 A */fd_a = open("file_a", O_RDONLY);     /* 失败:errno = ENOENT *//* 线程 B(同一时刻) */fd_b = open("file_b", O_RDONLY);     /* 失败:errno = EACCES *//* 之后 A 读 errno,会读到 ENOENT 还是 EACCES? */

如果 errno 是普通全局变量,那肯定撞车。但实测下来 A 读到的是 ENOENT、B 读到的是 EACCES,互不影响。

秘密在 glibc 的实现:

/* glibc 里 errno 实际上是这样的宏 */#define errno (*__errno_location())extern int *__errno_location(void);

__errno_location() 返回的是当前线程独有的一块内存地址 —— 这就是 TLS。

每个线程都有一份自己的 errno,互不干扰。这正是 pthread_setspecific 这套 API 要解决的通用问题。


1. TLS 是什么

全局变量 在所有线程间共享,栈变量 是每次函数调用一份,TLS 变量 是介于两者之间:每个线程独有,跨函数调用持久存在。

类型
谁可见
生命周期
栈变量
当前函数调用栈帧
函数返回就销毁
全局变量
进程内所有线程
整个进程
TLS 变量当前线程当前线程的整个生命周期
malloc
 堆
通过指针共享
手动 free

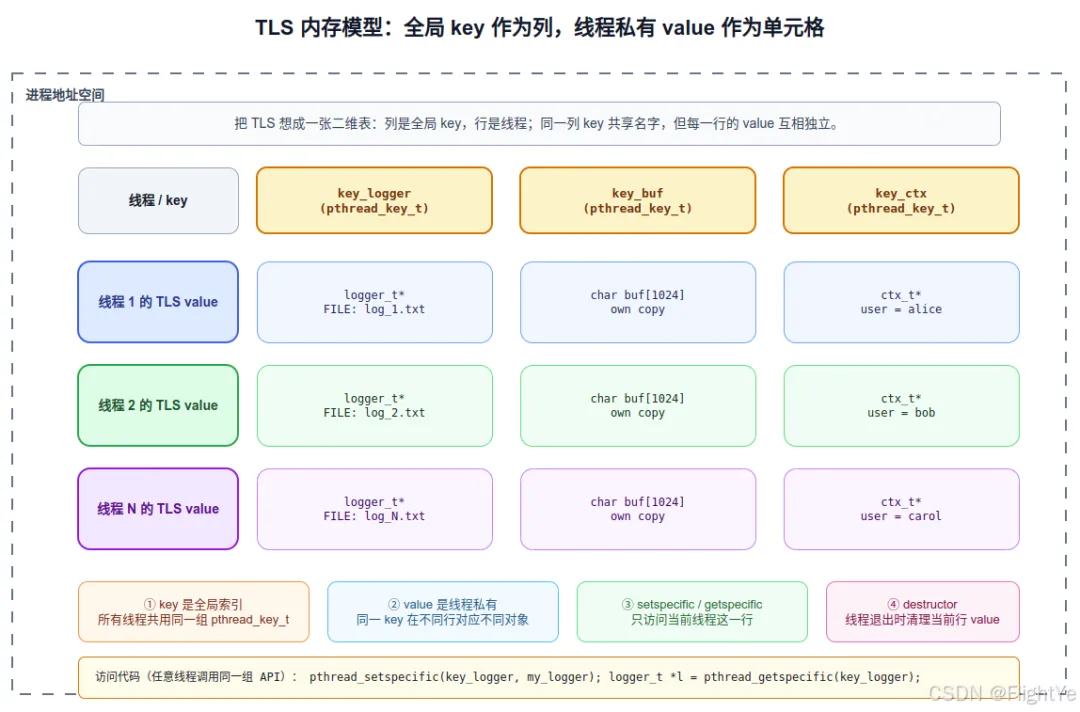

形象点说:每个线程都有一张"私人储物柜",柜子上有编号(key),所有线程的柜子编号是统一的(全局),但每个柜子里放什么东西完全独立。


2. pthread_setspecific 这套 API

2.1 四个核心函数

#include<pthread.h>/* 创建一个 key(全局唯一,所有线程共用同一个 key) */intpthread_key_create(pthread_key_t *key, void (*destructor)(void *));/* 销毁 key */intpthread_key_delete(pthread_key_t key);/* 写:把 value 关联到当前线程的这个 key 上 */intpthread_setspecific(pthread_key_t key, constvoid *value);/* 读:拿当前线程的这个 key 对应的 value */void *pthread_getspecific(pthread_key_t key);

记住关键不变量:

  • key 是全局的
    :所有线程共用一个 key
  • value 是线程私有的
    :同一个 key,每个线程能读/写自己的 value
  • value 默认是 NULL
    :新线程刚启动时 pthread_getspecific(key) 返回 NULL

2.2 最小例子:手写 my_errno

复刻一下 glibc 的 errno 思路:

#include<pthread.h>#include<stdio.h>#include<stdlib.h>static pthread_key_t my_errno_key;static pthread_once_t once = PTHREAD_ONCE_INIT;/* 线程退出时自动调,释放 malloc 的内存 */staticvoidmy_errno_destructor(void *value){    free(value);}staticvoidinit_key(void){    pthread_key_create(&my_errno_key, my_errno_destructor);}int *my_errno_location(void){    pthread_once(&once, init_key);    int *p = pthread_getspecific(my_errno_key);    if (!p) {        /* 第一次访问:分配空间并存到 TLS */        p = malloc(sizeof(int));        *p = 0;        pthread_setspecific(my_errno_key, p);    }    return p;}#define my_errno (*my_errno_location())void *worker(void *arg){    int id = *(int *)arg;    my_errno = 100 + id;        /* 每个线程写自己的 my_errno */    sleep(1);                    /* 故意让各线程交叉 */    printf("thread %d: my_errno = %d\n", id, my_errno);  /* 拿到的是自己的 */    return NULL;}intmain(void){    pthread_t tids[4];    int ids[4] = {0, 1, 2, 3};    for (int i = 0; i < 4; i++)        pthread_create(&tids[i], NULL, worker, &ids[i]);    for (int i = 0; i < 4; i++)        pthread_join(tids[i], NULL);    return 0;}

输出(每个线程读到的都是自己写的值,没有任何 mutex):

项
内容
thread 0
my_errno = 100
thread 1
my_errno = 101
thread 2
my_errno = 102
thread 3
my_errno = 103

3. destructor:自动清理资源

pthread_key_create 的第二个参数是个回调,线程退出时会被自动调用,参数是该线程对应这个 key 的 value:

static void my_destructor(void *value) {    free(value);          /* 或者 close(fd)、释放 socket、关闭 db handle... */}pthread_key_create(&key, my_destructor);

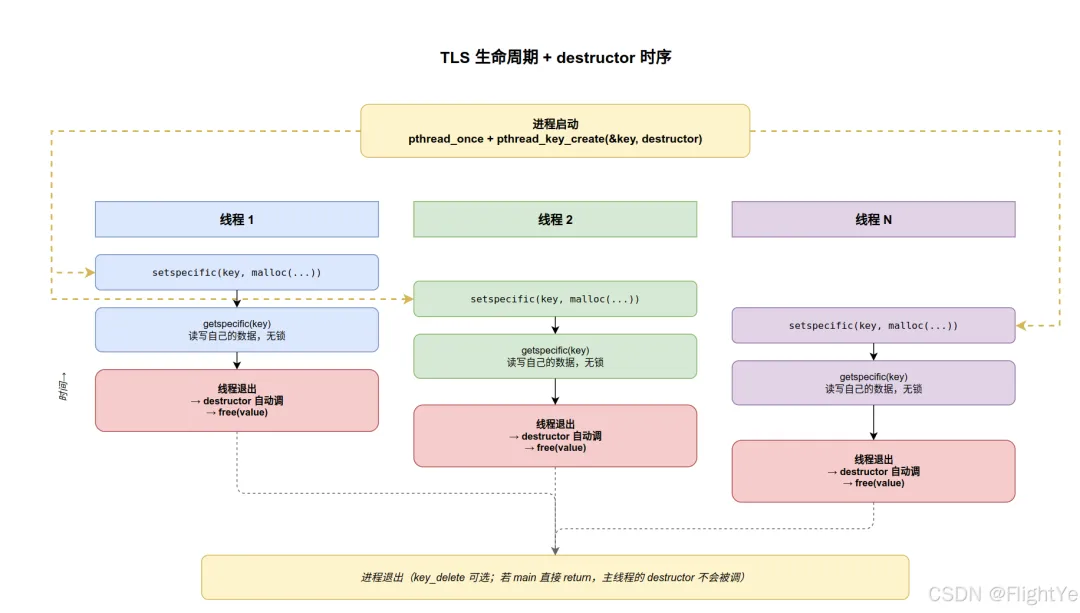

3.1 destructor 的调用时机

只在线程退出时被调,而不是 setspecific 覆盖旧 value 时:

char *p1 = malloc(100);pthread_setspecific(key, p1);    /* 写入 p1 */char *p2 = malloc(100);pthread_setspecific(key, p2);    /* 写入 p2,p1 没人 free,泄漏!*/

如果你打算在中间 setspecific 替换旧 value,得自己先 free 旧的:

void *old = pthread_getspecific(key);free(old);pthread_setspecific(key, p2);

3.2 destructor 的限制

  • 只在线程正常退出或被 pthread_cancel 时被调
  • 进程整体退出时(exit / 主线程 return)不会被调(不是泄漏,因为进程已死)
  • 如果 destructor 里又调了 setspecific,会再次安排执行(POSIX 规定最多 PTHREAD_DESTRUCTOR_ITERATIONS 次,glibc 默认 4)

4. 标准模式:once + key 懒初始化

key 一定要在第一次使用前 pthread_key_create,但如果有多个线程同时跑过来,谁负责创建?答案是 pthread_once:

static pthread_once_t once = PTHREAD_ONCE_INIT;static pthread_key_t key;staticvoidinit_key(void){    pthread_key_create(&key, destructor);}void *get_thread_data(void){    pthread_once(&once, init_key);    /* 多线程同时调,key_create 只跑一次 */    void *p = pthread_getspecific(key);    if (!p) {        p = malloc(...);        pthread_setspecific(key, p);    }    return p;}

pthread_once 保证 init_key 只被执行一次,且其他并发调用方会被阻塞到第一次执行完。这是个能死记住的固定套路。


5. 实战场景:每线程一个 logger

每个 worker 线程要写自己的日志文件,避免锁日志文件:

#include<pthread.h>#include<stdio.h>#include<stdlib.h>#include<string.h>typedef struct {    FILE *fp;    char  filename[64];} thread_logger_t;static pthread_once_t logger_once = PTHREAD_ONCE_INIT;static pthread_key_t  logger_key;staticvoidlogger_destroy(void *value){    thread_logger_t *l = value;    if (l) {        if (l->fp) fclose(l->fp);        free(l);    }}staticvoidinit_logger_key(void){    pthread_key_create(&logger_key, logger_destroy);}staticthread_logger_t *current_logger(void){    pthread_once(&logger_once, init_logger_key);    thread_logger_t *l = pthread_getspecific(logger_key);    if (!l) {        l = malloc(sizeof(*l));        snprintf(l->filename, sizeof(l->filename),                 "log_tid_%lu.txt", (unsigned long)pthread_self());        l->fp = fopen(l->filename, "w");        pthread_setspecific(logger_key, l);    }    return l;}/* 业务代码不用关心 logger 是哪个,直接调 LOG */#define LOG(fmt, ...) \    fprintf(current_logger()->fp, fmt "\n", ##__VA_ARGS__)void *worker(void *arg){    int id = *(int *)arg;    LOG("worker %d started", id);    do_some_work();    LOG("worker %d finished", id);    /* 线程退出时 logger_destroy 自动 fclose + free */    return NULL;}

亮点:

  • 业务函数(do_some_work、LOG 宏)不用知道当前是哪个线程,也不用传 logger 参数
  • 每个线程的 logger 是隔离的,写文件完全无锁
  • 线程退出时资源自动回收(destructor)

这就是 TLS 的"自动绑定 + 隐式上下文"威力。


6. 简化写法:C11 _Thread_local / GCC __thread

C11 标准提供了 _Thread_local 关键字(gcc / clang 也支持 __thread):

_Thread_local int my_errno = 0;       /* C11 标准 */__thread     int my_errno_gnu = 0;    /* GCC 扩展,更老更通用 */void *worker(void *arg){    my_errno = 42;       /* 自动每线程独立 */    printf("%d\n", my_errno);    return NULL;}

底层实现:编译器和 linker 配合,每个线程的 TCB(Thread Control Block)里挂一段独立的 .tdata / .tbss 内存。访问通过特殊的段寄存器(x86-64 上是 %fs:)几条指令就完成,比 pthread_getspecific 快很多。

6.1 _Thread_local vs pthread_setspecific 对比

维度
_Thread_local
 / __thread
pthread_setspecific
语法
像普通变量
API 调用
初始化
编译期,零成本
运行期,需要 key_create
性能
~1-2 ns(一条 mov)
~5-15 ns(函数调用 + table 查找)
自动清理
❌ 不调用 destructor
✅ destructor 自动调用
动态分配
❌ 不能存动态 malloc 的指针并自动释放
✅ 配 destructor 完美支持
共享库 / dlopen
⚠️ 需要 __attribute__((tls_model("initial-exec"))) 等小坑
✅ 标准 API,最稳
跨平台
C11 起标准,GCC/Clang 都有
POSIX 标准,更老更通用

6.2 怎么选

简单 POD 类型(int / 指针 / 小结构体),不需要自动清理 → _Thread_local

_Thread_local int recursion_depth = 0;_Thread_local char buf[1024];        /* 每线程自己的小缓冲 */

需要 destructor 自动清理(malloc / fopen / socket) → pthread_setspecific

/* logger 的例子,必须用 pthread_key + destructor */

两者结合:用 _Thread_local 存指针,配 pthread_key_create(&dummy_key, destructor) 注册清理 hook —— 但这玩法太花哨,初学不建议。


7. 反例:为什么不能用全局变量 + mutex 替代

可能有人想:

typedef struct {    pthread_t tid;    void *value;} entry_t;static entry_t entries[MAX_THREADS];static pthread_mutex_t lock;void *get_my_value(void){    pthread_mutex_lock(&lock);    pthread_t self = pthread_self();    void *v = NULL;    for (int i = 0; i < MAX_THREADS; i++) {        if (pthread_equal(entries[i].tid, self)) {            v = entries[i].value;            break;        }    }    pthread_mutex_unlock(&lock);    return v;}

这种实现的问题:

  1. 每次访问都要加锁
     —— 性能比 TLS 慢 1-2 个数量级
  2. MAX_THREADS 写死
     —— 不知道几个线程
  3. 没有自动清理
     —— 线程退出后 entries 里残留垃圾
  4. 重复实现 pthread 已经做好的事
     —— 浪费

TLS 解决的是这一类问题:“我想要每个线程都有一个独立的状态、且这个状态不通过参数传”。

几个真实工程里的 TLS 应用

场景
例子
错误码
errno
当前用户/会话
Web 服务器每个请求线程的 current_user()
日志上下文
request_id / trace_id 不用层层传参
内存分配器
tcmalloc 每线程一个 small object cache
OpenGL 上下文
当前 thread 的 GL context
JNI 环境
每个 attach 到 JVM 的线程的 JNIEnv*
协程局部数据
协程库借鉴 TLS 实现 ULS

8. 几个最常见的坑

8.1 setspecific 覆盖前不 free → 内存泄漏

char *p1 = malloc(100);pthread_setspecific(key, p1);char *p2 = malloc(100);pthread_setspecific(key, p2);   /* p1 泄漏,destructor 不会调 */

8.2 destructor 在主线程退出时不调 → 看似泄漏

进程整体退出时,主线程的 TLS destructor 不会被调。这不是 bug,是 POSIX 设计 —— 进程都死了,OS 回收一切。但如果你在 valgrind 之类的工具里看,会标记。

如果非要清理(比如 destructor 里有持久化逻辑),手动在 main 末尾 free 主线程的 TLS:

intmain() {    /* ... */    void *v = pthread_getspecific(key);    if (v) my_destructor(v);    pthread_setspecific(key, NULL);    return 0;}

8.3 PTHREAD_KEYS_MAX 限制

POSIX 规定 PTHREAD_KEYS_MAX 至少是 128,glibc 实际是 1024。key 是全局有限资源,别在每个对象/类里随便 pthread_key_create,要复用。

8.4 destructor 链可能死循环

static void destructor(void *value) {    pthread_setspecific(key, malloc(100));   /* ⚠️ 又写了一遍,下次还会调 */}

POSIX 规定最多迭代 PTHREAD_DESTRUCTOR_ITERATIONS(默认 4)次。但你不应该这么写。

8.5 NULL 既是合法 value,又是"没设过"的标记

pthread_setspecific(key, NULL);   /* 合法,但之后 getspecific 返回 NULL,                                     无法区分"设了 NULL"和"没设" */

如果 NULL 是合法 value,得自己加标记位。一般用一个非 NULL 的 sentinel 替代。

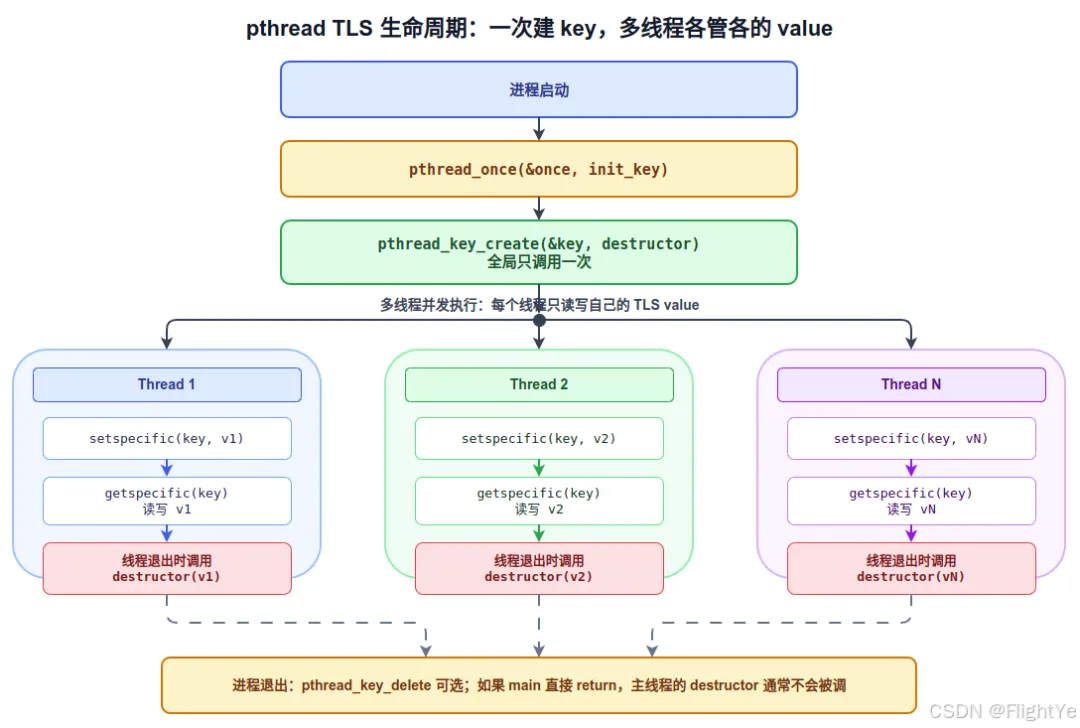

9. TLS 生命周期一图流


10. 总结

TLS(Thread Local Storage)解决的核心问题:让某个状态/上下文在每个线程内部独立,但不需要通过函数参数到处传。

工具层级:

工具
复杂度
性能
自动清理
推荐场景
_Thread_local
 int / ptr
⭐
⭐⭐⭐⭐⭐
❌
简单标量、计数器、深度
__thread
 (GCC)
⭐
⭐⭐⭐⭐⭐
❌
同上,老编译器
pthread_setspecific
⭐⭐⭐
⭐⭐⭐
✅
动态分配的资源(malloc/fopen/socket)
全局变量 + mutex
⭐⭐
⭐
❌
不推荐
 —— 重新发明 TLS

经验法则:

  1. 能用 _Thread_local 就用
     —— 简单、零成本
  2. 需要 destructor 才用 pthread_setspecific
     —— 自动清理动态资源
  3. 不要用全局 + mutex 模拟 TLS
     —— 慢且容易错

掌握了 TLS,很多本来要"参数到处传"或"全局加锁"的多线程代码会瞬间变得干净。errno 这种从 80 年代就在用的设计,到今天依然是 C 工程师隐式上下文的最佳实践之一。
