解决Python中使用matplotlib进行画图的时候,中文显示不出的问题 ?

  • 2026-02-05 01:04:35
解决Python中使用matplotlib进行画图的时候,中文显示不出的问题 ?
1.原编写的程序
import numpy as npimport matplotlib.pyplot as plta=[1,2,3]b=[2,3,4]c=[3,4,5]plt.plot(a,b)plt.xlabel(‘X轴’)plt.ylabel(‘y轴’)plt.title(‘折线图’)plt.show()

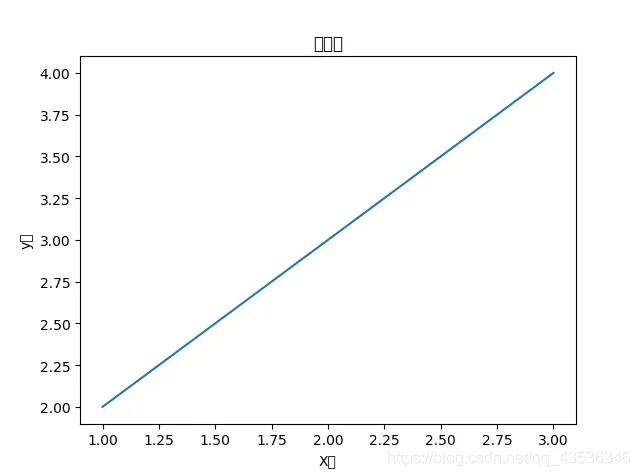

2.画出来的图形


通过画出的图形可以看出，x轴、y轴、标题的中文没有显示出来。

3.解决方式

通过在程序中增加如下代码解决：
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus']=False

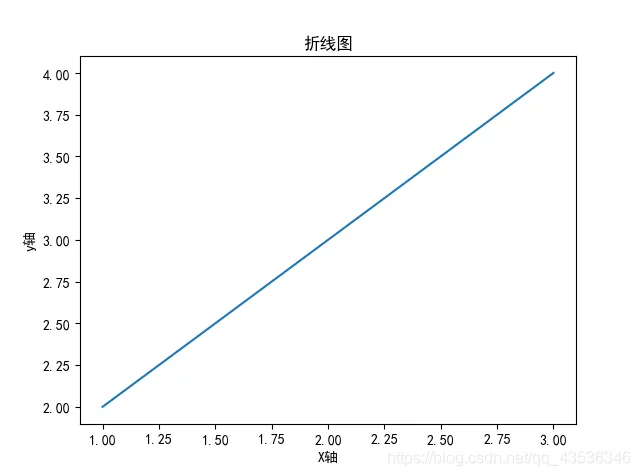

4.增加代码之后呈现的图形
