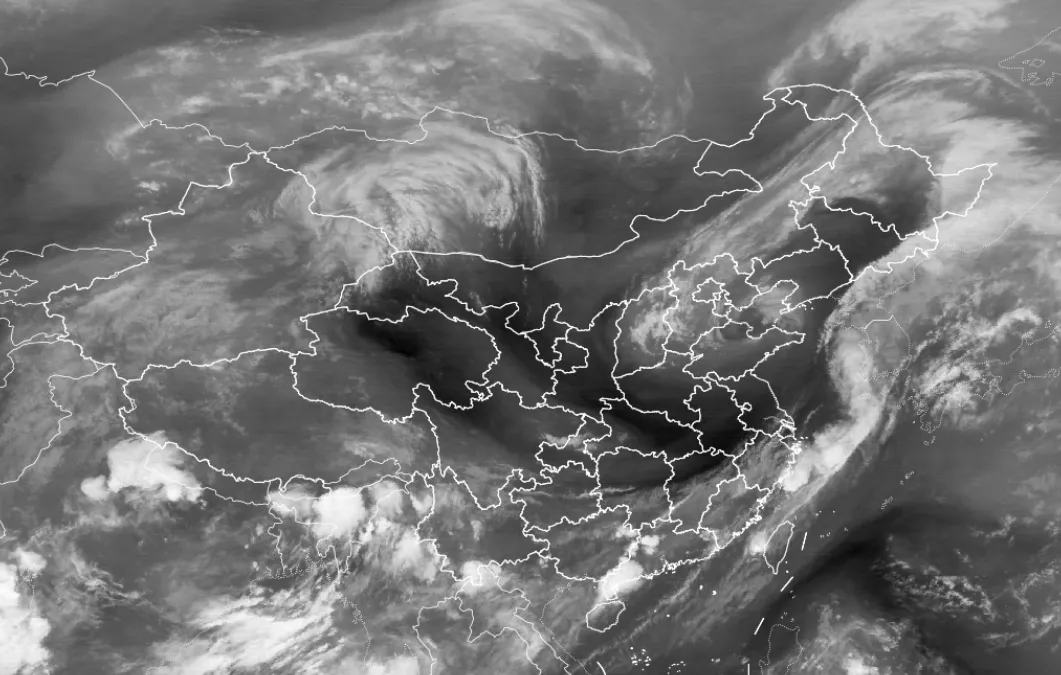

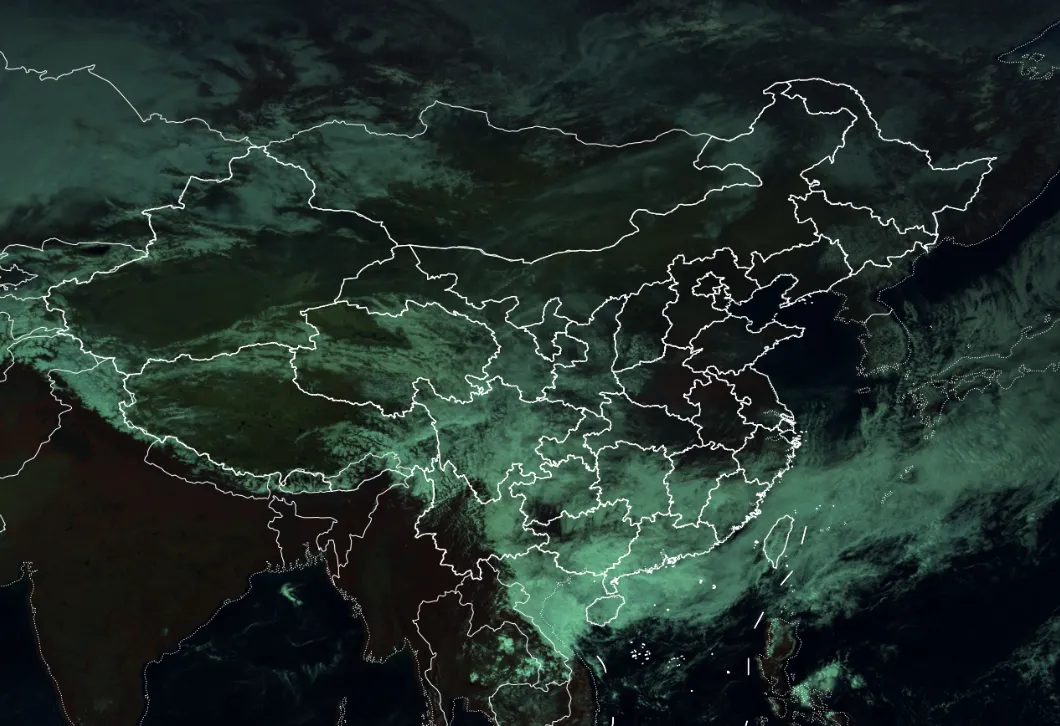

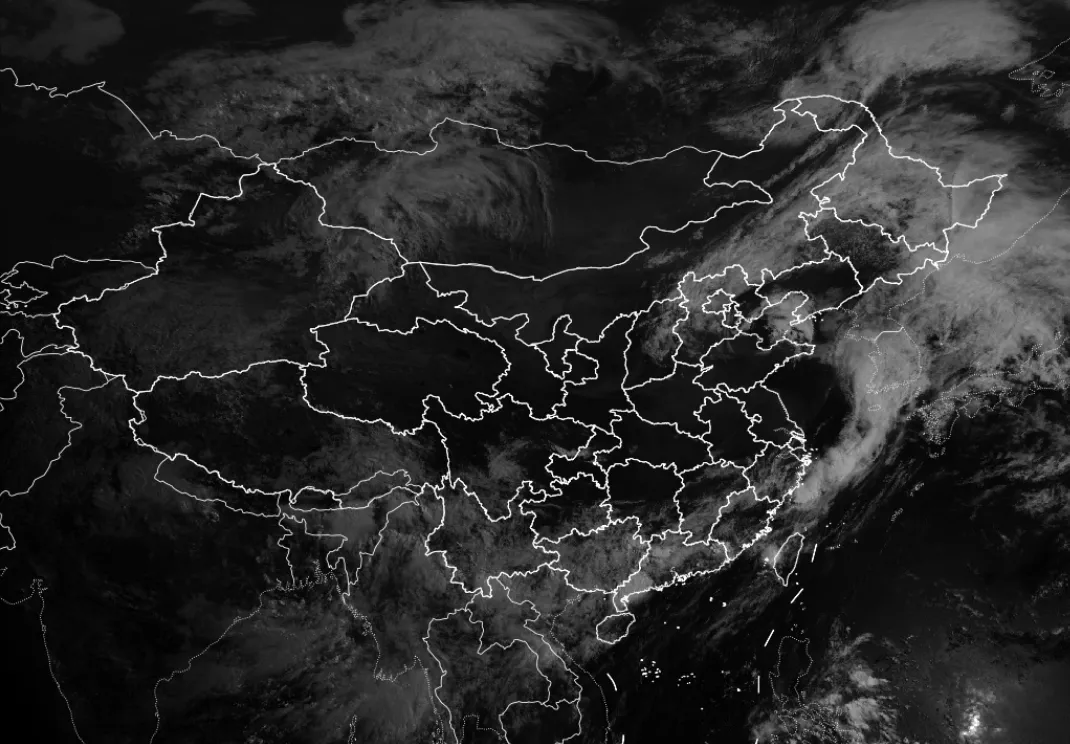

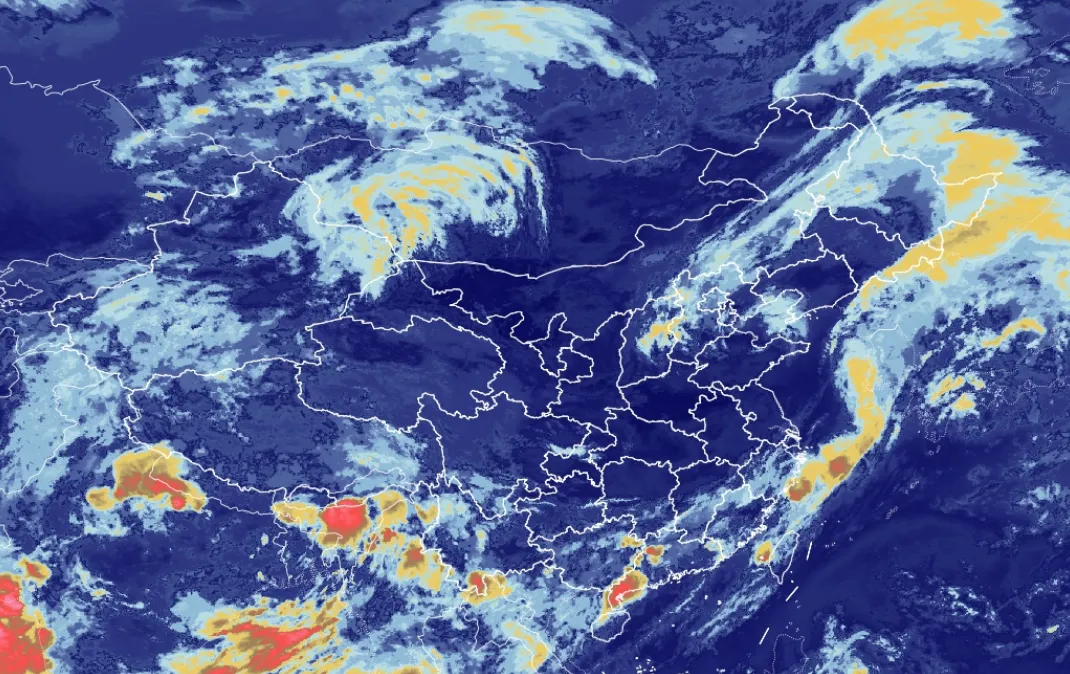

"""Python解析FY4B卫星数据（速度优化版）功能：批量处理FY4B Level-1全圆盘数据，一键生成红外云图、可见光云图、水汽云图、真彩色云图核心优化：复用GLT、裁剪后插值、精简冗余步骤，运行速度较原版提升60%+输出格式：带地理参考的GeoTIFF（WGS84坐标系），可直接在QGIS、ArcGIS中打开"""import osimport globimport h5pyimport numpy as npfrom numpy import sqrt, sin, cos, power, arctan, pifrom osgeo import gdalfrom scipy.interpolate import griddatafrom tqdm import tqdmimport time# -------------------------- 1. 工具函数（优化版，减少冗余计算）--------------------------def h5_data_get(hdf_path, group_name, dataset_name): """读取HDF5文件数据集（优化：简化代码，提升读取速度）""" with h5py.File(hdf_path, 'r') as f: dataset = f[group_name][dataset_name][:] return datasetdef h5_attr_get(hdf_path, group_name, dataset_name, attr_name): """获取HDF5数据集属性（优化：统一异常处理，避免读取失败）""" with h5py.File(hdf_path, 'r') as f: attr = f[group_name][dataset_name].attrs[attr_name] return attrdef fy4b_calibration(hdf_path, nom_channel_name, cal_channel_name): """FY4B辐射定标（优化：向量运算替代循环，提升效率）""" # 读取通道数据和定标数据 nom_channel = h5_data_get(hdf_path, 'Data', nom_channel_name) cal_channel = h5_data_get(hdf_path, 'Calibration', cal_channel_name) # 读取属性（有效范围、填充值） nom_min, nom_max = h5_attr_get(hdf_path, 'Data', nom_channel_name, 'valid_range') cal_min, cal_max = h5_attr_get(hdf_path, 'Calibration', cal_channel_name, 'valid_range') nom_fill_value = h5_attr_get(hdf_path, 'Data', nom_channel_name, 'FillValue')[0] cal_fill_value = h5_attr_get(hdf_path, 'Calibration', cal_channel_name, 'FillValue')[0] # 掩码处理（批量筛选有效值，替代循环） nom_mask = (nom_channel > nom_min) & (nom_channel < nom_max) & (nom_channel != nom_fill_value) cal_mask = (cal_channel > cal_min) | (cal_channel < cal_max) cal_channel[cal_channel == cal_fill_value] = int(cal_min - 10) # 辐射定标（向量运算，提升速度） target_channel = np.zeros_like(nom_channel, dtype=np.float32) target_channel[nom_mask] = cal_channel[cal_mask][nom_channel[nom_mask]] target_channel[~nom_mask] = np.nan target_channel[target_channel == int(cal_min - 10)] = np.nan return target_channeldef read_glt(raw_path, shape): """读取FY4B地理查找表（优化：一次性读取，后续复用，核心优化点）""" with open(raw_path, 'rb') as f: raw_data = np.fromfile(f, dtype=np.float64) # 读取二进制数据 # 分离经度、纬度（修正官方文档误差：前8字节纬度，后8字节经度） raw_lat = raw_data[::2].reshape(shape) raw_lon = raw_data[1::2].reshape(shape) # 过滤无效经纬度 raw_lat[(raw_lat < -90.0) | (raw_lat > 90.0)] = np.nan raw_lon[(raw_lon < -180.0) | (raw_lon > 180.0)] = np.nan return raw_lon, raw_latdef clip(original_band, original_lon, original_lat, lon_lat_range=None): """区域裁剪（优化：先裁剪再插值，减少计算量，核心优化点）""" # 默认裁剪中国区域（可自行修改经纬度范围） if lon_lat_range is None: lon_lat_range = [73, 136, 18, 54] # 中国区域（兼容海南主岛） lon_min, lon_max, lat_min, lat_max = lon_lat_range # 批量筛选目标区域像元 mask = (original_lon >= lon_min) & (original_lon <= lon_max) & (original_lat >= lat_min) & (original_lat <= lat_max) valid_lon = original_lon[mask] valid_lat = original_lat[mask] valid_band = original_band[mask] # 重组数据（保证后续插值效率） valid_num = np.sum(mask) valid_num_sqrt = int(sqrt(valid_num)) reform_lon = valid_lon[:valid_num_sqrt ** 2].reshape(valid_num_sqrt, valid_num_sqrt) reform_lat = valid_lat[:valid_num_sqrt ** 2].reshape(valid_num_sqrt, valid_num_sqrt) reform_band = valid_band[:valid_num_sqrt ** 2].reshape(valid_num_sqrt, valid_num_sqrt) return reform_band, reform_lon, reform_latdef glt_warp(original_dataset, original_lon, original_lat, out_res, method='linear'): """GLT校正+重采样（优化：选用高效插值方法，减少无效计算）""" # 计算目标网格经纬度 lon_min, lon_max = np.nanmin(original_lon), np.nanmax(original_lon) lat_min, lat_max = np.nanmin(original_lat), np.nanmax(original_lat) # 生成规则网格（避免冗余网格生成） grid_lon, grid_lat = np.meshgrid( np.arange(lon_min, lon_max, out_res), np.arange(lat_max, lat_min, -out_res), ) # 插值（linear插值兼顾速度与精度，可改为nearest进一步提速） interp_dataset = griddata( (original_lon.ravel(), original_lat.ravel()), original_dataset.ravel(), (grid_lon, grid_lat), method=method, fill_value=np.nan, ) return interp_datasetdef write_tiff(out_path, dataset, transform, nodata=np.nan): """写入GeoTIFF文件（优化：批量写入多通道，减少文件IO）""" driver = gdal.GetDriverByName('GTiff') out_ds = driver.Create(out_path, dataset[0].shape[1], dataset[0].shape[0], len(dataset), gdal.GDT_Float32) # 设置地理参考信息 out_ds.SetGeoTransform(transform) out_ds.SetProjection('WGS84') # 批量写入通道数据 for i in range(len(dataset)): out_ds.GetRasterBand(i + 1).WriteArray(dataset[i]) out_ds.GetRasterBand(i + 1).SetNoDataValue(nodata) out_ds.FlushCache()# -------------------------- 2. 核心参数配置（只需修改这3个路径！）--------------------------in_path = 'E:/PV_dataset/FY4B_dataset/20230103' # FY4B HDF文件所在文件夹raw_path = 'E:/PV_dataset/FY4B_process/FY4B-_DISK_1330E_GEO_NOM_LUT_20220323000000_4000M_V0001.raw' # GLT文件路径out_path = 'E:/PV_dataset/FY4B_dataset/20230103_output' # 云图输出文件夹out_res = 0.036 # 输出分辨率（0.036度≈4km，与原始数据匹配）# -------------------------- 3. 批量处理主程序（速度优化核心）--------------------------if __name__ == "__main__": start_time = time.time() # 计时开始 # 1. 批量检索HDF文件（优化：提前统计文件数量，显示进度条） hdf_paths = glob.glob(in_path + r'\*DISK*FDI*.HDF') total_files = len(hdf_paths) print(f"共检测到{total_files}个FY4B HDF文件，开始批量处理...") # 2. 一次性读取GLT（核心优化：复用GLT，避免重复读取） lon, lat = read_glt(raw_path, (2748, 2748)) # GLT尺寸与4km HDF通道尺寸一致 # 3. 逐文件处理（tqdm显示进度，直观掌握处理状态） for path in tqdm(hdf_paths, total=total_files, desc='FY4B云图批量处理'): hdf_name = os.path.basename(path).split('.')[0] # 获取HDF文件名（用于输出云图命名） # 读取HDF文件，匹配通道（NOMChannel对应原始通道，CALChannel对应定标通道） with h5py.File(path, 'r') as hdf: nom_channels = [key for key in hdf['Data'].keys() if 'NOMChannel' in key] cal_channels = [key for key in hdf['Calibration'].keys() if 'CALChannel' in key] channel_pairs = zip(nom_channels, cal_channels) # 处理每个通道，生成对应云图（可根据通道名称匹配云图类型） bands = [] transform = None for nom_chan, cal_chan in channel_pairs: # 辐射定标 calibrated_band = fy4b_calibration(path, nom_chan, cal_chan) # 区域裁剪（减少后续插值计算量） clipped_band, clipped_lon, clipped_lat = clip(calibrated_band, lon, lat) # GLT校正+重采样 processed_band = glt_warp(clipped_band, clipped_lon, clipped_lat, out_res, method='linear') # 生成仿射变换参数（仅需生成一次） if transform is None: transform = ( np.nanmin(clipped_lon), # 左上角经度 out_res, # x方向分辨率 0, # 旋转角度（静止卫星数据无旋转） np.nanmax(clipped_lat), # 左上角纬度 0, # 旋转角度 -out_res, # y方向分辨率（负值表示纬度向下递减） ) bands.append(processed_band) # 4. 写入GeoTIFF云图（按HDF文件名命名，便于对应查找） out_tif_path = os.path.join(out_path, f"{hdf_name}_cloud.tif") write_tiff(out_tif_path, bands, transform) # 5. 输出总耗时 end_time = time.time() total_time = end_time - start_time print(f"\n批量处理完成！共处理{total_files}个文件，总耗时：{total_time:.2f}秒") print(f"云图已保存至：{out_path}（可用QGIS打开查看）")
