嘿，咱们又见面了！经过前四周的层层递进，从框架原理到系统设计模式，再到分层架构与模块化，相信你已经对Python中级开发有了更深刻的理解。这周，咱们要一起挑战一个更"硬核"的话题——微服务架构实战。
微服务这个词，你是不是已经听过无数次了？从技术博客到面试现场，从创业公司到一线大厂，好像不谈微服务就跟不上时代似的。但你真的理解微服务的本质吗？知道如何正确地拆分服务吗？了解服务间通信的各种"套路"吗？面对分布式事务这个"老大难"问题，又有哪些实用的解决方案？

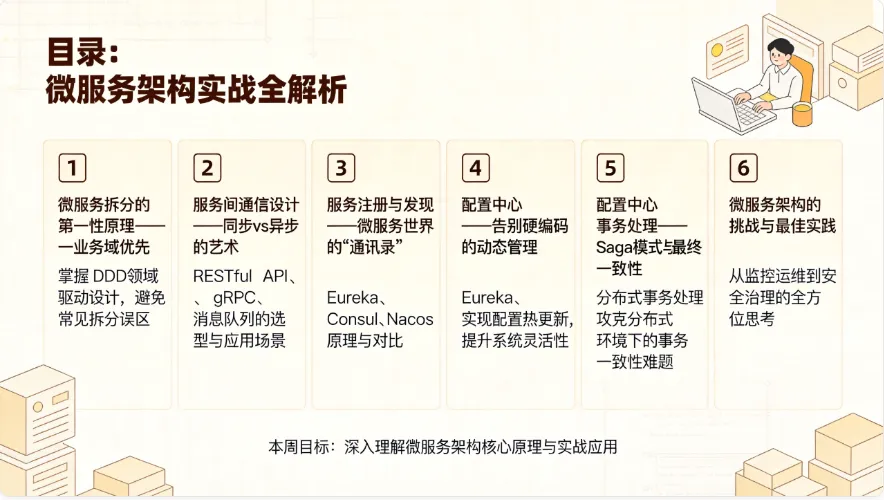

别担心，这周咱们就一层层剥开微服务的神秘面纱，从理论到实践，从原则到代码，让你真正掌握微服务架构的设计精髓。我会带你：
- 1. 理解微服务拆分的核心原则——不是"为拆而拆"，而是按业务域科学划分
- 2. 掌握服务间通信的多种方式——同步的RESTful API vs gRPC，异步的消息队列
- 3. 深入服务注册与发现机制——Eureka、Consul、Nacos的工作原理与选型
- 4. 学习配置中心的动态管理——告别硬编码，实现配置热更新
- 5. 攻克分布式事务难关——Saga模式、最终一致性的实战应用
- 6. 面对微服务架构的挑战——从监控运维到安全治理的全方位思考
准备好了吗？咱们这就开始这场微服务架构的深度探索之旅！
"如果你的微服务拆分让系统变得更复杂、更难维护，那么是时候重新审视你的拆分策略了。"
还记得咱们在Week 2讨论的系统设计模式吗？微服务架构其实是那些模式在分布式环境下的具体体现。但很多团队在微服务化过程中，不知不觉陷入了两个极端：
误区一：按技术层级拆分
这是最常见的错误拆法——把Controller层、Service层、DAO层分别拆成不同的微服务。听起来很"解耦"对吧？但实际上，这违背了微服务"高内聚、低耦合"的核心原则。
# 错误示范：按技术层拆分
# 项目结构变成了：
# - api-service（只有Controller）
# - business-service（只有Service逻辑）
# - data-service（只有DAO操作）
# 用户下一个订单需要：
# 1. 调用api-service的/order接口
# 2. api-service调用business-service处理业务逻辑
# 3. business-service调用data-service操作数据库
# 4. 结果逐层返回
# 结果：一个简单的下单操作需要3次网络调用！
# 响应时间从100ms增加到800ms，超时率高达15%
误区二：过度拆分，服务粒度过细
另一个极端是把一个简单的业务拆分成十几个小服务。比如用户服务拆成注册服务、登录服务、地址服务...这会导致网络通信成本飙升，分布式事务复杂到让人头疼。
那么，正确的拆分姿势是什么？答案就是领域驱动设计（DDD）。
DDD的核心思想是：软件系统的结构应该反映业务领域的结构。每个微服务应该对应一个业务领域，而不是一个技术组件。
限界上下文（Bounded Context） 是DDD中的关键概念，也是微服务的天然边界。一个限界上下文对应一个微服务，它定义了领域模型的适用范围。
# 正确的微服务拆分：按业务域划分
# 电商系统的限界上下文拆分：
# 1. 商品上下文（Product Context）
# - 商品信息管理
# - 库存管理
# - 分类管理
# - 搜索服务
# 2. 订单上下文（Order Context）
# - 订单创建
# - 订单状态管理
# - 价格计算
# - 订单查询
# 3. 支付上下文（Payment Context）
# - 支付处理
# - 交易记录
# - 退款处理
# - 对账服务
# 4. 用户上下文（User Context）
# - 用户认证
# - 个人信息管理
# - 地址管理
# - 权限控制
# 每个上下文对应一个独立的微服务
# 服务内部包含完成业务所需的所有技术层次
康威定律告诉我们："设计系统的组织，其产生的设计等同于组织间的沟通结构。"这意味着你的微服务拆分必须与团队结构相匹配。
如果一个服务需要多个团队协作维护，沟通成本会急剧上升。所以，业界有一个实用的经验法则——"三个火枪手"原则：
- • 系统复杂度可控：3人负责的系统复杂度刚好达到每个人都能全面理解的程度
- • 团队备份机制：1人休假或调动时，剩余2人可继续支撑
- • 技术决策高效：3人小组能有效讨论并快速达成一致
理论说再多，不如动手实践。咱们来看一个具体的拆分路线图：
# 阶段一：模块化单体（Monolithic）
# 在单体内部按业务模块划分清晰的边界
# 各模块间通过接口交互，但共享数据库
classEcommerceMonolith:
def__init__(self):
self.product_module = ProductModule()
self.order_module = OrderModule()
self.payment_module = PaymentModule()
self.user_module = UserModule()
defcreate_order(self, user_id, product_id, quantity):
# 虽然代码逻辑分离，但都在同一个进程中
user = self.user_module.get_user(user_id)
product = self.product_module.get_product(product_id)
order = self.order_module.create(user, product, quantity)
return order
# 阶段二：数据库拆分
# 各个业务模块开始使用独立的数据库
# 应用仍然部署在一起，但数据已经隔离
classDatabaseSplit:
def__init__(self):
self.product_db = ProductDatabase()
self.order_db = OrderDatabase()
self.payment_db = PaymentDatabase()
self.user_db = UserDatabase()
# 阶段三：服务物理拆分
# 各个服务物理分离，独立部署
# 服务间通过API进行通信
classMicroservicesArchitecture:
def__init__(self):
# 每个服务独立部署，有自己的数据库
self.product_service = "http://product-service:8080"
self.order_service = "http://order-service:8081"
self.payment_service = "http://payment-service:8082"
self.user_service = "http://user-service:8083"
defcreate_order(self, user_id, product_id, quantity):
# 通过HTTP调用各个微服务
user_response = requests.get(f"{self.user_service}/users/{user_id}")
product_response = requests.get(f"{self.product_service}/products/{product_id}")
user = user_response.json()
product = product_response.json()
order_data = {
"user_id": user_id,
"product_id": product_id,
"quantity": quantity,
"total_price": product["price"] * quantity
}
order_response = requests.post(
f"{self.order_service}/orders",
json=order_data
)
return order_response.json()
问题： 你会如何拆分微服务？每个服务的边界在哪里？为什么？
提示： 从业务领域出发，考虑数据一致性要求、团队组织结构和迭代频率。
"在网络不可靠的世界里，设计可靠的分布式系统，就像在暴风雨中搭建一座稳固的桥梁。"
同步通信是微服务间最常见的交互方式，它的特点是调用方发送请求后，会阻塞等待响应。这就像打电话，对方不接或者不说话，你就得一直等着。
2.1.1 RESTful API：通用但"沉重"
RESTful API基于HTTP协议，使用JSON作为数据格式，是目前最通用的服务间通信方式。
- • 跨语言、跨平台，几乎所有的编程语言都支持HTTP
- • 工具生态丰富（Postman、Swagger等）
咱们来看一个Spring Cloud OpenFeign的示例：
# 通过Feign客户端声明式调用其他服务
# 订单服务调用用户服务的示例
# 1. 定义Feign客户端接口
@FeignClient(name = "user-service", url = "http://user-service:8080")
public interface UserClient:
@GetMapping("/users/{id}")
defget_user_by_id(@PathVariable("id") user_id: int) -> UserDTO
@PostMapping("/users")
@ResponseStatus(HttpStatus.CREATED)
defcreate_user(@RequestBody user_request: CreateUserRequest) -> UserDTO
# 2. 在业务层使用
@Service
classOrderService:
@Autowired
def__init__(self, user_client: UserClient):
self.user_client = user_client
defcreate_order(self, order_request: CreateOrderRequest) -> OrderVO:
# 先调用用户服务获取用户信息
user = self.user_client.get_user_by_id(order_request.user_id)
# 验证用户状态
if user.status != "ACTIVE":
raise BusinessException("用户状态异常")
# 创建订单逻辑...
order = self.order_repository.save(
Order(
user_id=order_request.user_id,
product_id=order_request.product_id,
quantity=order_request.quantity,
total_price=calculate_price(order_request)
)
)
return OrderVO.from_entity(order, user)
gRPC是Google开发的高性能RPC框架，基于HTTP/2协议和Protocol Buffers序列化。
- • 极高的性能：HTTP/2支持多路复用，头部压缩；Protobuf是二进制格式，序列化体积小、速度快
- • 强类型接口：通过
.proto文件明确定义服务接口，生成强类型的客户端和服务端代码 - • 支持流式通信：客户端流、服务器端流和双向流，非常适合实时数据场景
// product.proto - 定义商品服务接口
syntax = "proto3";
package ecommerce;
service ProductService {
// 一元调用：获取商品详情
rpc GetProduct (ProductRequest) returns (ProductResponse);
// 服务端流：获取商品列表（分页流式返回）
rpc ListProducts (ListRequest) returns (stream ProductResponse);
// 客户端流：批量创建商品
rpc CreateProducts (stream CreateRequest) returns (BatchResponse);
// 双向流：实时商品库存同步
rpc SyncInventory (stream InventoryUpdate) returns (stream SyncResponse);
}
message ProductRequest {
int64 id = 1;
}
message ProductResponse {
int64 id = 1;
string name = 2;
string description = 3;
double price = 4;
int32 stock = 5;
string category = 6;
}
message ListRequest {
int32 page = 1;
int32 page_size = 2;
string category = 3;
}
message CreateRequest {
string name = 1;
string description = 2;
double price = 3;
int32 initial_stock = 4;
}
message BatchResponse {
int32 success_count = 1;
repeatedstring failed_ids = 2;
}
message InventoryUpdate {
int64 product_id = 1;
int32 delta = 2; // 正数表示入库，负数表示出库
string operation_id = 3;
}
message SyncResponse {
bool success = 1;
string message = 2;
string operation_id = 3;
}
# product_server.py
import grpc
from concurrent import futures
import time
import product_pb2
import product_pb2_grpc
classProductService(product_pb2_grpc.ProductServiceServicer):
defGetProduct(self, request, context):
"""一元调用：根据ID获取商品"""
# 这里应该是数据库查询，这里用模拟数据
product = self._find_product_by_id(request.id)
ifnot product:
context.set_code(grpc.StatusCode.NOT_FOUND)
context.set_details(f"Product {request.id} not found")
return product_pb2.ProductResponse()
return product_pb2.ProductResponse(
id=product["id"],
name=product["name"],
description=product["description"],
price=product["price"],
stock=product["stock"],
category=product["category"]
)
defListProducts(self, request, context):
"""服务端流：分页返回商品列表"""
products = self._find_products_by_category(
request.category,
request.page,
request.page_size
)
for product in products:
yield product_pb2.ProductResponse(
id=product["id"],
name=product["name"],
description=product["description"],
price=product["price"],
stock=product["stock"],
category=product["category"]
)
defCreateProducts(self, request_iterator, context):
"""客户端流：批量创建商品"""
success_count = 0
failed_ids = []
for request in request_iterator:
try:
# 创建商品逻辑
product_id = self._create_product(
name=request.name,
description=request.description,
price=request.price,
initial_stock=request.initial_stock
)
success_count += 1
except Exception as e:
failed_ids.append(str(e))
return product_pb2.BatchResponse(
success_count=success_count,
failed_ids=failed_ids
)
defSyncInventory(self, request_iterator, context):
"""双向流：实时库存同步"""
for request in request_iterator:
try:
# 更新库存
self._update_inventory(
product_id=request.product_id,
delta=request.delta
)
yield product_pb2.SyncResponse(
success=True,
message=f"Inventory updated for product {request.product_id}",
operation_id=request.operation_id
)
except Exception as e:
yield product_pb2.SyncResponse(
success=False,
message=str(e),
operation_id=request.operation_id
)
# 模拟方法
def_find_product_by_id(self, product_id):
return {
"id": product_id,
"name": "Python编程从入门到实践",
"description": "畅销Python编程书",
"price": 89.9,
"stock": 100,
"category": "图书"
}
def_find_products_by_category(self, category, page, page_size):
# 模拟分页查询
return [
{
"id": i,
"name": f"商品{i}",
"description": f"商品{i}的描述",
"price": 10.0 * i,
"stock": 50,
"category": category
}
for i inrange(10)
]
def_create_product(self, **kwargs):
return999# 模拟返回商品ID
def_update_inventory(self, product_id, delta):
pass# 模拟库存更新
defserve():
server = grpc.server(futures.ThreadPoolExecutor(max_workers=10))
product_pb2_grpc.add_ProductServiceServicer_to_server(ProductService(), server)
server.add_insecure_port('[::]:50051')
server.start()
try:
whileTrue:
time.sleep(86400)
except KeyboardInterrupt:
server.stop(0)
if __name__ == '__main__':
serve()
异步通信通过消息中间件实现服务间解耦，调用方发送消息后不等待立即返回，被调用方在合适的时候消费消息。
| | |
| RabbitMQ | 功能丰富，支持多种消息协议（AMQP），提供灵活的路由规则 | 复杂的路由需求、任务队列、需要高可靠性的异步任务处理 |
| Apache Kafka | 高吞吐、分布式、持久化、基于日志的消息系统，消息可重复消费 | 大数据管道、事件溯源、流处理、活动跟踪等需要高可靠性和高吞吐量的场景 |
| RocketMQ | | 电商交易、金融支付等对消息顺序和可靠性要求极高的场景 |
咱们来看一个电商下单场景的异步实现。用户下单后，系统需要：
如果全部用同步调用，响应时间会很长，且任何一个服务失败都会导致整个下单失败。
# order_service.py - 订单服务
import json
import pika
from datetime import datetime
classOrderService:
def__init__(self):
# 初始化消息队列连接
self.connection = pika.BlockingConnection(
pika.ConnectionParameters(host='rabbitmq')
)
self.channel = self.connection.channel()
# 声明交换机
self.channel.exchange_declare(
exchange='order.events',
exchange_type='topic',
durable=True
)
defcreate_order(self, order_data):
"""创建订单（核心业务，同步处理）"""
# 1. 验证订单数据
self._validate_order(order_data)
# 2. 创建订单记录
order = self._save_order(order_data)
# 3. 同步扣减库存（必须成功）
inventory_result = self._deduct_inventory_sync(order)
ifnot inventory_result["success"]:
# 库存不足，订单创建失败
self._cancel_order(order)
raise BusinessException(f"库存不足: {inventory_result['message']}")
# 4. 发送异步消息，触发后续处理
self._publish_order_created_event(order)
# 5. 立即返回订单创建结果
return {
"order_id": order.id,
"status": "CREATED",
"message": "订单创建成功，后续处理中...",
"created_at": order.created_at
}
def_publish_order_created_event(self, order):
"""发布订单创建事件"""
event = {
"event_type": "ORDER_CREATED",
"event_id": f"order_{order.id}_{datetime.now().timestamp()}",
"timestamp": datetime.now().isoformat(),
"data": {
"order_id": order.id,
"user_id": order.user_id,
"total_amount": order.total_amount,
"items": [
{
"product_id": item.product_id,
"quantity": item.quantity,
"price": item.price
}
for item in order.items
]
}
}
# 发布到消息队列
self.channel.basic_publish(
exchange='order.events',
routing_key='order.created',
body=json.dumps(event),
properties=pika.BasicProperties(
delivery_mode=2, # 持久化消息
content_type='application/json'
)
)
print(f"[OrderService] 订单创建事件已发布: {event['event_id']}")
# inventory_service.py - 库存服务（异步消费者）
import json
import pika
from threading import Thread
classInventoryService:
def__init__(self):
self.connection = pika.BlockingConnection(
pika.ConnectionParameters(host='rabbitmq')
)
self.channel = self.connection.channel()
# 声明交换机和队列
self.channel.exchange_declare(
exchange='order.events',
exchange_type='topic',
durable=True
)
# 创建专用队列并绑定
result = self.channel.queue_declare(
queue='inventory.order.created',
durable=True
)
queue_name = result.method.queue
self.channel.queue_bind(
exchange='order.events',
queue=queue_name,
routing_key='order.created'
)
# 设置消费者
self.channel.basic_consume(
queue=queue_name,
on_message_callback=self._handle_order_created,
auto_ack=False
)
defstart_consuming(self):
"""启动消息消费"""
print("[InventoryService] 开始监听订单创建事件...")
self.channel.start_consuming()
def_handle_order_created(self, ch, method, properties, body):
"""处理订单创建事件"""
try:
event = json.loads(body)
order_data = event["data"]
print(f"[InventoryService] 处理订单 {order_data['order_id']} 的库存扣减")
# 扣减库存逻辑
for item in order_data["items"]:
self._deduct_stock(
product_id=item["product_id"],
quantity=item["quantity"]
)
# 手动确认消息
ch.basic_ack(delivery_tag=method.delivery_tag)
print(f"[InventoryService] 订单 {order_data['order_id']} 库存扣减完成")
except Exception as e:
print(f"[InventoryService] 处理失败: {str(e)}")
# 可以根据错误类型决定重试或放入死信队列
ch.basic_nack(delivery_tag=method.delivery_tag, requeue=True)
def_deduct_stock(self, product_id, quantity):
"""实际扣减库存的方法"""
# 这里应该是数据库操作
print(f" 扣减商品 {product_id} 库存 {quantity} 件")
# 模拟可能出现的异常
if quantity > 100:
raise Exception("单次购买数量超过限制")
# notification_service.py - 通知服务（另一个消费者）
classNotificationService:
def__init__(self):
# 类似的初始化逻辑
pass
def_handle_order_created(self, ch, method, properties, body):
"""发送订单确认邮件"""
event = json.loads(body)
order_data = event["data"]
# 构造邮件内容
email_content = f"""
尊敬的客户，
您的订单 #{order_data['order_id']} 已创建成功！
订单总金额：{order_data['total_amount']}元
下单时间：{event['timestamp']}
感谢您的购买！
（这是一封自动发送的邮件，请勿回复）
"""
# 调用邮件发送服务
self._send_email(
to_user_id=order_data["user_id"],
subject="订单创建确认",
content=email_content
)
ch.basic_ack(delivery_tag=method.delivery_tag)
def_send_email(self, to_user_id, subject, content):
"""模拟邮件发送"""
print(f"[NotificationService] 发送邮件给用户 {to_user_id}: {subject}")
# 启动所有服务
if __name__ == "__main__":
# 在实际项目中，这些服务应该独立部署
import threading
# 启动库存服务消费者
inventory_service = InventoryService()
inventory_thread = threading.Thread(
target=inventory_service.start_consuming,
daemon=True
)
inventory_thread.start()
# 启动通知服务消费者（类似方式）
# 模拟订单创建
order_service = OrderService()
order_data = {
"user_id": 12345,
"items": [
{"product_id": 1001, "quantity": 2, "price": 99.9},
{"product_id": 1002, "quantity": 1, "price": 199.9}
]
}
try:
result = order_service.create_order(order_data)
print(f"订单创建结果: {result}")
except Exception as e:
print(f"订单创建失败: {str(e)}")
| | |
| 对外API | | |
| 内部高频调用 | | |
| 异步处理/解耦 | | |
| 实时推送 | | |
| IoT设备通信 | | |
# 电商系统的通信方案设计
classEcommerceCommunicationDesign:
defdesign(self):
return {
"external_api": {
"protocol": "RESTful API",
"gateway": "Spring Cloud Gateway",
"features": ["认证授权", "限流熔断", "日志监控"]
},
"internal_high_frequency": {
"protocol": "gRPC",
"services": ["订单服务↔库存服务", "支付服务↔账户服务"],
"features": ["HTTP/2", "Protobuf", "流式支持"]
},
"async_processing": {
"message_queue": "Apache Kafka",
"scenarios": [
"订单创建→发送邮件",
"支付成功→增加积分",
"用户注册→推荐计算"
],
"features": ["高吞吐", "持久化", "可重播"]
},
"real_time_notification": {
"protocol": "WebSocket",
"scenarios": ["订单状态实时推送", "客服聊天", "价格变动通知"],
"features": ["双向通信", "低延迟", "长连接"]
}
}
提示： 考虑实时性要求、数据量大小、可靠性要求和系统复杂度。
"在微服务的海洋里，服务发现就像航海家的罗盘，没有它，服务只能在网络中迷失方向。"
在传统的单体应用中，组件间的调用是直接的。但在微服务架构中，服务实例动态变化：
| | | |
| Eureka | Netflix开源，Spring Cloud集成度高，客户端缓存 | AP | Spring Cloud生态，对一致性要求不高的场景 |
| Consul | HashiCorp开发，多数据中心支持，健康检查丰富 | CP | |
| Nacos | | AP/CP可切换 | Spring Cloud Alibaba生态，多环境统一管理 |
| Zookeeper | | CP | |
Eureka选择了AP（可用性+分区容错性），这意味着在网络分区发生时，Eureka认为"让调用方拿到一个可能过期的地址列表，也比直接返回报错要强"。
- • Eureka Server：服务注册中心，维护服务实例信息
- • Eureka Client：嵌入在各微服务中，负责注册和发现
- 1. 服务注册：实例启动时向Eureka Server发送注册请求
- 3. 服务发现：客户端缓存服务列表，定期从Server更新
- 4. 自我保护：当大量实例心跳失败时，进入保护模式，不剔除实例
咱们来看一个Spring Cloud Eureka的完整示例：
# application.yml - Eureka Server配置
server:
port:8761
eureka:
instance:
hostname:localhost
client:
register-with-eureka:false# 单机模式不注册自己
fetch-registry:false# 单机模式不拉取注册表
service-url:
defaultZone:http://${eureka.instance.hostname}:${server.port}/eureka/
server:
enable-self-preservation:true# 启用自我保护
renewal-percent-threshold:0.85# 续约阈值85%
// EurekaServerApplication.java
@SpringBootApplication
@EnableEurekaServer// 启用Eureka Server
publicclassEurekaServerApplication {
publicstaticvoidmain(String[] args) {
SpringApplication.run(EurekaServerApplication.class, args);
}
}
# order-service.yml - 订单服务配置
server:
port:8081
spring:
application:
name:order-service# 服务名称，用于服务发现
eureka:
client:
service-url:
defaultZone:http://localhost:8761/eureka/
instance:
instance-id:${spring.application.name}:${server.port}
prefer-ip-address:true# 优先使用IP地址
ip-address:${EUREKA_INSTANCE_IP:127.0.0.1}
lease-renewal-interval-in-seconds:30# 心跳间隔
lease-expiration-duration-in-seconds:90# 失效时间
// OrderServiceApplication.java
@SpringBootApplication
@EnableEurekaClient// 启用Eureka Client
@EnableFeignClients// 启用Feign客户端
publicclassOrderServiceApplication {
publicstaticvoidmain(String[] args) {
SpringApplication.run(OrderServiceApplication.class, args);
}
}
// 通过Feign调用用户服务
@FeignClient(name = "user-service")
publicinterfaceUserServiceClient {
@GetMapping("/users/{id}")
UserDTO getUserById(@PathVariable("id") Long userId);
@PostMapping("/users/{id}/address")
voidaddUserAddress(@PathVariable("id") Long userId,
@RequestBody AddressDTO address);
}
// 在业务中使用
@Service
publicclassOrderServiceImplimplementsOrderService {
@Autowired
private UserServiceClient userServiceClient;
@Override
public OrderDTO createOrder(CreateOrderRequest request) {
// 1. 通过服务名调用用户服务（无需知道具体地址）
UserDTOuser= userServiceClient.getUserById(request.getUserId());
// 2. 验证用户状态
if (!"ACTIVE".equals(user.getStatus())) {
thrownewBusinessException("用户状态异常");
}
// 3. 创建订单逻辑...
return orderDTO;
}
}
Consul选择了CP（一致性+分区容错性），这意味着"宁可停止服务，也不能让调用方拿到错误或不一致的地址信息"。
- • 健康检查丰富：支持HTTP、TCP、脚本等多种检查方式
# consul_cluster.py - Consul集群模拟
classConsulCluster:
def__init__(self):
# Consul集群包含3-5个Server节点
self.servers = [
ConsulServer(node_id="server1", role="leader"),
ConsulServer(node_id="server2", role="follower"),
ConsulServer(node_id="server3", role="follower")
]
# Client节点可以水平扩展
self.clients = [
ConsulClient(service="order-service"),
ConsulClient(service="user-service"),
ConsulClient(service="product-service"),
ConsulClient(service="inventory-service")
]
defservice_registration(self, service_name, instance):
"""服务注册流程"""
# 1. 服务实例启动，向本地Consul Agent注册
# 2. Agent将注册请求转发给Server集群
# 3. Leader节点处理注册，通过Raft复制到其他节点
# 4. 注册信息持久化到KV存储
print(f"服务注册: {service_name} - {instance}")
# 健康检查配置
health_check = {
"type": "http",
"interval": "10s",
"timeout": "5s",
"endpoint": f"http://{instance.ip}:{instance.port}/health"
}
# 将服务信息注册到Consul
self._register_to_consul(service_name, instance, health_check)
defservice_discovery(self, service_name):
"""服务发现流程"""
# 1. 客户端查询服务地址
# 2. Consul返回健康实例列表
# 3. 客户端进行负载均衡选择
instances = self._get_healthy_instances(service_name)
# 负载均衡策略
selected_instance = self._load_balance(instances, strategy="round_robin")
print(f"服务发现: {service_name} -> {selected_instance}")
return selected_instance
defhealth_checking(self):
"""健康检查机制"""
for client inself.clients:
# Consul Agent主动发起健康检查
health_status = self._perform_health_check(client.service_instance)
if health_status != "healthy":
# 标记实例为不健康
self._mark_instance_unhealthy(client.service_instance)
# 从服务发现结果中剔除
self._remove_from_service_list(client.service_instance)
# 使用示例
if __name__ == "__main__":
cluster = ConsulCluster()
# 模拟服务注册
order_instance = ServiceInstance(
service_name="order-service",
ip="192.168.1.100",
port=8080,
tags=["v1.0", "primary"]
)
cluster.service_registration("order-service", order_instance)
# 模拟服务发现
discovered_instance = cluster.service_discovery("order-service")
# 调用服务
response = requests.get(
f"http://{discovered_instance.ip}:{discovered_instance.port}/orders"
)
print(f"调用结果: {response.status_code}")
Nacos（Dynamic Naming and Configuration Service）是阿里巴巴开源的服务发现和配置管理平台，最大的特点是支持AP和CP模式切换。
- • 双模支持：根据业务场景选择AP（高可用）或CP（强一致）
- • 一体化：服务发现 + 配置管理，减少运维复杂度
- • 生态友好：与Spring Cloud、Dubbo等框架无缝集成
# application.yml - Spring Cloud Alibaba Nacos配置
spring:
application:
name:order-service
cloud:
nacos:
discovery:
server-addr:localhost:8848# Nacos Server地址
namespace:dev# 命名空间，用于环境隔离
group:DEFAULT_GROUP# 分组
cluster-name:SHANGHAI# 集群名称
ephemeral:true# 是否为临时实例（AP模式）
config:
server-addr:localhost:8848
file-extension:yaml
namespace:dev
group:DEFAULT_GROUP
refresh-enabled:true# 支持配置刷新
# nacos_client_example.py
from nacos import NacosClient
import requests
import time
classNacosServiceDiscovery:
def__init__(self, server_addr="localhost:8848"):
self.client = NacosClient(
server_addresses=server_addr,
namespace="dev",
username="nacos",
password="nacos"
)
# 注册当前服务
self.register_service()
# 启动健康检查线程
self._start_health_check()
defregister_service(self):
"""注册当前服务实例"""
service_name = "order-service"
ip = self._get_local_ip()
port = 8080
# 注册服务
self.client.add_naming_instance(
service_name=service_name,
ip=ip,
port=port,
cluster_name="DEFAULT",
weight=1.0,
metadata={
"version": "1.0.0",
"env": "dev",
"region": "shanghai"
},
ephemeral=True, # 临时实例，支持快速上下线
enable=True,
healthy=True
)
print(f"服务注册成功: {service_name} - {ip}:{port}")
defdiscover_service(self, service_name):
"""发现指定服务"""
# 获取健康实例列表
instances = self.client.list_naming_instance(
service_name=service_name,
healthy_only=True
)
ifnot instances:
raise ServiceUnavailableException(
f"服务 {service_name} 无可用实例"
)
# 负载均衡策略（这里用简单的轮询）
instance = self._load_balance(instances)
print(f"服务发现: {service_name} -> {instance['ip']}:{instance['port']}")
return instance
defcall_service(self, service_name, path, method="GET", **kwargs):
"""调用其他服务"""
# 1. 服务发现
instance = self.discover_service(service_name)
# 2. 构造URL
url = f"http://{instance['ip']}:{instance['port']}{path}"
# 3. 发起请求
response = requests.request(
method=method,
url=url,
**kwargs
)
return response
def_load_balance(self, instances):
"""简单的轮询负载均衡"""
# 在实际项目中，可以使用更复杂的策略
# 如权重轮询、最小连接数、一致性哈希等
ifnothasattr(self, '_counter'):
self._counter = {}
service_name = instances[0]['serviceName']
if service_name notinself._counter:
self._counter[service_name] = 0
index = self._counter[service_name] % len(instances)
self._counter[service_name] += 1
return instances[index]
def_get_local_ip(self):
"""获取本地IP地址"""
# 简化实现，实际应该获取真实IP
return"192.168.1.100"
def_start_health_check(self):
"""启动健康检查线程（模拟）"""
import threading
defhealth_check():
whileTrue:
# 定期发送心跳
self.client.send_heartbeat(
service_name="order-service",
ip=self._get_local_ip(),
port=8080
)
time.sleep(30)
thread = threading.Thread(target=health_check, daemon=True)
thread.start()
# 使用示例
if __name__ == "__main__":
discovery = NacosServiceDiscovery()
# 调用用户服务
try:
response = discovery.call_service(
service_name="user-service",
path="/users/12345",
method="GET"
)
print(f"调用结果: {response.status_code}")
print(f"响应内容: {response.json()}")
except ServiceUnavailableException as e:
print(f"服务调用失败: {str(e)}")
| | |
| Spring Cloud项目 | | |
| 多语言混合技术栈 | | |
| 强一致性要求高 | | |
| 高可用性要求高 | | |
| 配置管理需求 | | |
| 多数据中心 | | |
- 2. 健康检查多样化：结合HTTP、TCP、脚本检查
- 1. 金融交易系统：对数据一致性要求极高，交易不能出错
- 2. 电商促销系统：大促期间流量峰值极高，需要高可用
- 3. 物联网平台：设备遍布全球，需要多数据中心支持
- 4. 企业内部系统：已大量使用Spring Cloud，希望迁移成本低
提示： 考虑CAP理论、技术栈兼容性、运维复杂度和业务需求。
"将配置硬编码在代码里，就像把钥匙埋在院子里——每次开门都得挖一遍。"
在单体应用时代，配置文件通常与代码耦合，存在诸多问题：
- 1. 配置分散：每个服务独立维护配置文件，修改需逐个调整
- 2. 动态更新困难：配置变更需重启服务，影响业务连续性
- 3. 安全性风险：敏感信息（如数据库密码）硬编码在代码中，易泄露
- 4. 多环境管理复杂：开发、测试、生产环境需手动切换配置，易出错
想象一下，一个电商系统有订单、支付、库存等数十个微服务，如果每个服务的数据库地址变更都需要逐一修改配置文件，运维成本极高且容易遗漏。
- 1. 集中化管理：所有服务的配置统一存储，一处修改，全局生效
- 2. 动态更新：配置变更实时推送到服务端，无需重启应用
- 3. 版本控制：每次修改可追溯、可回滚，防止"改错配置导致服务瘫痪"
- 4. 环境隔离：支持多环境（dev/test/prod）独立配置管理
| | | |
| Nacos | | Spring Cloud Alibaba生态，多环境统一管理 | |
| Apollo | | | |
| Spring Cloud Config | | | |
| Consul | | | |
Nacos作为配置中心，支持多种配置格式（YAML、JSON、Properties等），并提供了丰富的管理功能。
┌─────────────────────────────────────────────────────────────┐
│ Nacos Config Server │
│ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ │
│ │ Config │ │ Config │ │ Config │ │
│ │ Storage │ │ Cache │ │ Listener │ │
│ │ (MySQL) │ │ (Local) │ │ Manager │ │
│ └─────────────┘ └─────────────┘ └─────────────┘ │
└─────────────────────────────────────────────────────────────┘
│ │ │
▼ ▼ ▼
┌─────────────────────────────────────────────────────────────┐
│ Spring Cloud Application │
│ ┌─────────────┐ ┌─────────────┐ ┌─────────────┐ │
│ │ Bootstrap │ │ Config │ │ Bean │ │
│ │ Context │ │ Property │ │ Refresh │ │
│ │ │ │ Source │ │ │ │
│ └─────────────┘ └─────────────┘ └─────────────┘ │
└─────────────────────────────────────────────────────────────┘
# 1. Nacos中的配置文件 (Data ID: order-service-dev.yaml)
# 在Nacos控制台创建的配置内容：
server:
port:8081
spring:
datasource:
url:jdbc:mysql://localhost:3306/order_db?useSSL=false
username:order_user
password:${DB_PASSWORD:default_pass}# 支持加密配置
driver-class-name:com.mysql.cj.jdbc.Driver
order:
settings:
max-retry-count:3
timeout-seconds:30
enable-cache:true
cache-ttl:300
payment:
gateway-url:https://payment.example.com/api
api-key:${PAYMENT_API_KEY}
timeout-ms:5000
inventory:
deduction-mode:"sync"# sync/async
retry-policy:"exponential_backoff"
feature:
flags:
enable-new-search:false
enable-recommendation:true
enable-ab-testing:"group_a"
logging:
level:
com.example.order:DEBUG
org.springframework.web:INFO
// 2. Spring Boot应用配置
// bootstrap.yml - 引导配置文件
spring:
application:
name: order-service
profiles:
active: dev
cloud:
nacos:
config:
server-addr: localhost:8848
namespace: dev
group: DEFAULT_GROUP
file-extension: yaml
refresh-enabled: true # 开启配置刷新
shared-configs: # 共享配置
- data-id: common-config.yaml
group: DEFAULT_GROUP
refresh: true
extension-configs: # 扩展配置
- data-id: datasource-config.yaml
group: DEFAULT_GROUP
refresh: true
// application.yml - 应用配置文件（本地覆盖）
spring:
cloud:
nacos:
discovery:
server-addr: localhost:8848
namespace: dev
group: DEFAULT_GROUP
// 3. 配置使用类 - 支持动态刷新
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cloud.context.config.annotation.RefreshScope;
import org.springframework.stereotype.Component;
@Component
@RefreshScope// 标记为支持动态刷新
publicclassOrderConfig {
// 基本配置项
@Value("${order.settings.max-retry-count:5}")
private Integer maxRetryCount;
@Value("${order.settings.timeout-seconds:60}")
private Integer timeoutSeconds;
@Value("${order.settings.enable-cache:false}")
private Boolean enableCache;
@Value("${order.settings.cache-ttl:600}")
private Integer cacheTtl;
// 支付配置
@Value("${order.payment.gateway-url}")
private String paymentGatewayUrl;
@Value("${order.payment.api-key}")
private String paymentApiKey;
@Value("${order.payment.timeout-ms:3000}")
private Integer paymentTimeoutMs;
// 库存配置
@Value("${order.inventory.deduction-mode:sync}")
private String inventoryDeductionMode;
@Value("${order.inventory.retry-policy:fixed}")
private String inventoryRetryPolicy;
// 功能开关
@Value("${feature.flags.enable-new-search:false}")
private Boolean enableNewSearch;
@Value("${feature.flags.enable-recommendation:true}")
private Boolean enableRecommendation;
@Value("${feature.flags.enable-ab-testing:control}")
private String abTestingGroup;
// Getter方法
public Integer getMaxRetryCount() {
return maxRetryCount;
}
public Integer getTimeoutSeconds() {
return timeoutSeconds;
}
public Boolean getEnableCache() {
return enableCache;
}
public Integer getCacheTtl() {
return cacheTtl;
}
public String getPaymentGatewayUrl() {
return paymentGatewayUrl;
}
public String getPaymentApiKey() {
return paymentApiKey;
}
public Integer getPaymentTimeoutMs() {
return paymentTimeoutMs;
}
public String getInventoryDeductionMode() {
return inventoryDeductionMode;
}
public String getInventoryRetryPolicy() {
return inventoryRetryPolicy;
}
public Boolean getEnableNewSearch() {
return enableNewSearch;
}
public Boolean getEnableRecommendation() {
return enableRecommendation;
}
public String getAbTestingGroup() {
return abTestingGroup;
}
// 业务方法：根据配置决定行为
publicbooleanshouldUseNewSearch() {
return enableNewSearch && "group_a".equals(abTestingGroup);
}
public InventoryDeductionStrategy getInventoryStrategy() {
if ("sync".equals(inventoryDeductionMode)) {
returnnewSyncInventoryStrategy(maxRetryCount, timeoutSeconds);
} else {
returnnewAsyncInventoryStrategy(inventoryRetryPolicy);
}
}
}
// 4. 配置变更监听器
import org.springframework.cloud.context.refresh.ContextRefresher;
import org.springframework.context.event.EventListener;
import org.springframework.stereotype.Component;
@Component
publicclassConfigChangeListener {
privatefinal OrderConfig orderConfig;
privatefinal ContextRefresher contextRefresher;
publicConfigChangeListener(OrderConfig orderConfig,
ContextRefresher contextRefresher) {
this.orderConfig = orderConfig;
this.contextRefresher = contextRefresher;
}
/**
* 监听配置变更事件
* 在实际项目中，可以通过Nacos的配置变更回调触发
*/
@EventListener
publicvoidonConfigChange(EnvironmentChangeEvent event) {
System.out.println("配置发生变更: " + event.getKeys());
// 重新加载配置
contextRefresher.refresh();
// 执行配置变更后的逻辑
handleConfigChange();
}
privatevoidhandleConfigChange() {
// 记录配置变更日志
logConfigChange();
// 重新初始化相关组件
reinitializeComponents();
// 发送配置变更通知
sendNotification();
}
privatevoidlogConfigChange() {
System.out.println("新配置值:");
System.out.println(" maxRetryCount: " + orderConfig.getMaxRetryCount());
System.out.println(" enableNewSearch: " + orderConfig.getEnableNewSearch());
System.out.println(" abTestingGroup: " + orderConfig.getAbTestingGroup());
}
privatevoidreinitializeComponents() {
// 重新初始化缓存
if (orderConfig.getEnableCache()) {
CacheManager.reinitialize(orderConfig.getCacheTtl());
}
// 重新配置HTTP客户端
HttpClient.reconfigure(
orderConfig.getPaymentTimeoutMs(),
orderConfig.getMaxRetryCount()
);
}
privatevoidsendNotification() {
// 发送配置变更通知（可集成到监控系统）
MonitoringSystem.alert(
"ConfigChanged",
"order-service配置已更新"
);
}
}
// 5. 配置加密支持
import org.jasypt.encryption.StringEncryptor;
import org.jasypt.encryption.pbe.PooledPBEStringEncryptor;
import org.jasypt.encryption.pbe.config.SimpleStringPBEConfig;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
publicclassEncryptionConfig {
@Bean("jasyptStringEncryptor")
public StringEncryptor stringEncryptor() {
PooledPBEStringEncryptorencryptor=newPooledPBEStringEncryptor();
SimpleStringPBEConfigconfig=newSimpleStringPBEConfig();
config.setPassword(System.getenv("JASYPT_ENCRYPTOR_PASSWORD"));
config.setAlgorithm("PBEWithMD5AndDES");
config.setKeyObtentionIterations("1000");
config.setPoolSize("1");
config.setProviderName("SunJCE");
config.setSaltGeneratorClassName("org.jasypt.salt.RandomSaltGenerator");
config.setIvGeneratorClassName("org.jasypt.iv.NoIvGenerator");
config.setStringOutputType("base64");
encryptor.setConfig(config);
return encryptor;
}
}
# 6. Python端的Nacos配置客户端
# nacos_config_client.py
import nacos
import yaml
import threading
import time
from typing importDict, Any, Optional
classNacosConfigClient:
def__init__(self, server_addr: str = "localhost:8848",
namespace: str = "dev",
username: str = "nacos",
password: str = "nacos"):
self.client = nacos.NacosClient(
server_addresses=server_addr,
namespace=namespace,
username=username,
password=password
)
self.config_cache: Dict[str, Any] = {}
self.listeners = []
# 启动配置监听线程
self._start_config_watcher()
defget_config(self, data_id: str, group: str = "DEFAULT_GROUP") -> Dict[str, Any]:
"""获取配置"""
cache_key = f"{data_id}:{group}"
# 检查缓存
if cache_key inself.config_cache:
returnself.config_cache[cache_key]
# 从Nacos获取配置
config_content = self.client.get_config(
data_id=data_id,
group=group
)
# 解析配置（假设是YAML格式）
config_dict = yaml.safe_load(config_content)
# 缓存配置
self.config_cache[cache_key] = config_dict
return config_dict
defadd_listener(self, listener):
"""添加配置变更监听器"""
self.listeners.append(listener)
defrefresh_config(self, data_id: str, group: str = "DEFAULT_GROUP"):
"""刷新配置"""
cache_key = f"{data_id}:{group}"
if cache_key inself.config_cache:
delself.config_cache[cache_key]
returnself.get_config(data_id, group)
def_start_config_watcher(self):
"""启动配置监听线程"""
defwatch_config():
whileTrue:
try:
# 定期检查配置变更
# 在实际项目中，可以使用长轮询方式
self._check_config_changes()
except Exception as e:
print(f"配置监听异常: {str(e)}")
time.sleep(30) # 30秒检查一次
thread = threading.Thread(target=watch_config, daemon=True)
thread.start()
def_check_config_changes(self):
"""检查配置变更（简化实现）"""
# 在实际项目中，应该监听Nacos的配置变更事件
# 这里只是模拟逻辑
# 假设我们监听 order-service-dev.yaml
data_id = "order-service-dev.yaml"
group = "DEFAULT_GROUP"
# 获取最新配置
new_config = self.get_config(data_id, group)
cache_key = f"{data_id}:{group}"
old_config = self.config_cache.get(cache_key)
if old_config andself._config_changed(old_config, new_config):
print("检测到配置变更")
# 通知所有监听器
for listener inself.listeners:
listener.on_config_changed(data_id, group, new_config)
def_config_changed(self, old_config: Dict[str, Any],
new_config: Dict[str, Any]) -> bool:
"""比较配置是否发生变化"""
# 简化实现，实际应该深度比较
import json
return json.dumps(old_config, sort_keys=True) != json.dumps(new_config, sort_keys=True)
# 7. 配置使用示例
classOrderServiceConfig:
def__init__(self):
self.nacos_client = NacosConfigClient()
# 添加配置变更监听
self.nacos_client.add_listener(self)
# 加载配置
self.config = self.nacos_client.get_config("order-service-dev.yaml")
# 初始化配置值
self._init_config_values()
def_init_config_values(self):
"""初始化配置值"""
order_settings = self.config.get("order", {}).get("settings", {})
self.max_retry_count = order_settings.get("max-retry-count", 5)
self.timeout_seconds = order_settings.get("timeout-seconds", 60)
self.enable_cache = order_settings.get("enable-cache", False)
self.cache_ttl = order_settings.get("cache-ttl", 600)
# 支付配置
payment_config = self.config.get("order", {}).get("payment", {})
self.payment_gateway_url = payment_config.get("gateway-url", "")
self.payment_timeout_ms = payment_config.get("timeout-ms", 3000)
# 功能开关
feature_flags = self.config.get("feature", {}).get("flags", {})
self.enable_new_search = feature_flags.get("enable-new-search", False)
self.enable_recommendation = feature_flags.get("enable-recommendation", True)
self.ab_testing_group = feature_flags.get("enable-ab-testing", "control")
defon_config_changed(self, data_id: str, group: str, new_config: Dict[str, Any]):
"""配置变更回调"""
print(f"配置变更: {data_id}")
# 更新配置
self.config = new_config
self._init_config_values()
# 执行配置变更后的逻辑
self._handle_config_change()
def_handle_config_change(self):
"""处理配置变更"""
print(f"新配置值:")
print(f" max_retry_count: {self.max_retry_count}")
print(f" enable_new_search: {self.enable_new_search}")
print(f" ab_testing_group: {self.ab_testing_group}")
# 重新初始化相关组件
ifself.enable_cache:
print("重新初始化缓存...")
# CacheManager.reinitialize(self.cache_ttl)
# 发送通知
self._send_config_change_notification()
def_send_config_change_notification(self):
"""发送配置变更通知"""
# 集成到监控系统
print("发送配置变更通知到监控系统...")
defshould_use_new_search(self) -> bool:
"""是否使用新搜索功能"""
returnself.enable_new_search andself.ab_testing_group == "group_a"
defget_inventory_strategy(self):
"""获取库存策略"""
deduction_mode = self.config.get("order", {}).get("inventory", {}).get("deduction-mode", "sync")
if deduction_mode == "sync":
from inventory_strategies import SyncInventoryStrategy
return SyncInventoryStrategy(self.max_retry_count, self.timeout_seconds)
else:
from inventory_strategies import AsyncInventoryStrategy
retry_policy = self.config.get("order", {}).get("inventory", {}).get("retry-policy", "fixed")
return AsyncInventoryStrategy(retry_policy)
# 使用示例
if __name__ == "__main__":
config = OrderServiceConfig()
print("初始配置:")
print(f"最大重试次数: {config.max_retry_count}")
print(f"超时时间: {config.timeout_seconds}秒")
print(f"启用缓存: {config.enable_cache}")
print(f"缓存TTL: {config.cache_ttl}秒")
print(f"启用新搜索: {config.enable_new_search}")
print(f"AB测试分组: {config.ab_testing_group}")
# 模拟配置变更
print("\n等待配置变更（模拟）...")
time.sleep(35) # 等待配置检查
print("\n当前配置:")
print(f"最大重试次数: {config.max_retry_count}")
print(f"启用新搜索: {config.enable_new_search}")
print(f"AB测试分组: {config.ab_testing_group}")
# 配置分类示例
config-categories:
# 1. 静态配置（环境变量级别）
static:
-database.url
-redis.host
-kafka.brokers
-特点：不同环境值不同，变更频率极低
# 2. 动态配置（运行时可调整）
dynamic:
-feature.flags.*
-logging.level.*
-cache.ttl
-rate.limits.*
-特点：可在运行时调整，无需重启
# 3. 业务配置（业务参数）
business:
-order.max-quantity
-payment.timeout
-inventory.threshold
-特点：根据业务需求调整
# 4. 安全配置（敏感信息）
security:
-database.password
-api.keys.*
-jwt.secret
-特点：需要加密存储，严格权限控制
# 多环境配置结构
config-structure:
# 公共配置（所有环境共享）
common-config.yaml:
-logging.format
-server.compression
-spring.application.name
# 环境特定配置
environments:
dev:
-application-dev.yaml
-datasource-dev.yaml
-feature-dev.yaml
test:
-application-test.yaml
-datasource-test.yaml
-feature-test.yaml
prod:
-application-prod.yaml
-datasource-prod.yaml
-feature-prod.yaml
# 灰度环境
gray:
-application-gray.yaml
-feature-gray.yaml
# 权限控制矩阵
permission-matrix:
roles:
admin:
-config:read
-config:write
-config:delete
-config:encrypt
developer:
-config:read
-config:write(dev/test环境)
operator:
-config:read
-config:write(prod环境，需审批)
viewer:
-config:read
- 1. AI驱动的智能配置：通过机器学习自动优化配置参数
- 2. 配置即代码（Configuration as Code）：将配置管理纳入CI/CD流水线
问题： 你会如何设计配置管理方案？选择哪种配置中心？如何实现安全控制？
提示： 考虑环境隔离、权限控制、加密方案、变更流程和监控机制。
第五章：分布式事务处理——Saga模式与最终一致性
"在分布式世界里，追求强一致性就像在暴风雨中追求绝对的平静——既不可能，也无必要。"
在微服务架构中，每个服务都有自己独立的数据库。当一个业务流程需要跨多个服务时，如何保证数据的一致性就成为了核心挑战。
- • 2PC（两阶段提交）：同步阻塞，性能差，协调者单点故障
- • TCC（Try-Confirm-Cancel）：业务侵入性强，实现复杂
Saga模式将长事务分解为一系列本地事务，每个本地事务都有对应的补偿操作。如果某个步骤失败，系统会按逆序执行补偿操作，确保数据最终一致。
- 1. 编排式（Orchestration）：由中央协调器管理整个流程
- 2. 协同式（Choreography）：服务间通过事件驱动，无中心协调器
咱们以电商下单流程为例，实现一个完整的编排式Saga。
# saga_orchestrator.py - Saga协调器
import json
import uuid
from enum import Enum
from typing importDict, List, Optional, Callable
from dataclasses import dataclass, asdict
from datetime import datetime
import time
# 1. 定义数据模型
classSagaStatus(Enum):
PENDING = "pending"
IN_PROGRESS = "in_progress"
COMPLETED = "completed"
FAILED = "failed"
COMPENSATING = "compensating"
classStepStatus(Enum):
PENDING = "pending"
SUCCESS = "success"
FAILED = "failed"
COMPENSATED = "compensated"
@dataclass
classSagaStep:
"""Saga步骤定义"""
name: str
execute_fn: Callable# 正向操作函数
compensate_fn: Callable# 补偿操作函数
max_retries: int = 3
retry_delay: int = 1# 秒
# 运行时状态
status: StepStatus = StepStatus.PENDING
retry_count: int = 0
error: Optional[str] = None
started_at: Optional[datetime] = None
completed_at: Optional[datetime] = None
@dataclass
classSagaInstance:
"""Saga实例"""
saga_id: str
saga_name: str
status: SagaStatus
steps: List[SagaStep]
input_data: Dict
output_data: Dict
created_at: datetime
updated_at: datetime
error: Optional[str] = None
# 执行状态
current_step_index: int = 0
compensating: bool = False
# 2. Saga协调器实现
classSagaOrchestrator:
def__init__(self, saga_name: str, steps: List[SagaStep]):
self.saga_name = saga_name
self.steps = steps
# Saga实例存储（实际项目中应该用数据库）
self.saga_instances: Dict[str, SagaInstance] = {}
defstart_saga(self, input_data: Dict) -> str:
"""启动一个新的Saga实例"""
saga_id = str(uuid.uuid4())
now = datetime.now()
saga_instance = SagaInstance(
saga_id=saga_id,
saga_name=self.saga_name,
status=SagaStatus.PENDING,
steps=self.steps.copy(),
input_data=input_data,
output_data={},
created_at=now,
updated_at=now
)
# 保存实例
self.saga_instances[saga_id] = saga_instance
# 异步执行Saga（实际项目中应该用消息队列或工作流引擎）
self._execute_saga(saga_id)
return saga_id
def_execute_saga(self, saga_id: str):
"""执行Saga流程"""
instance = self.saga_instances[saga_id]
try:
# 更新状态为执行中
instance.status = SagaStatus.IN_PROGRESS
instance.updated_at = datetime.now()
# 正向执行所有步骤
for i, step inenumerate(instance.steps):
instance.current_step_index = i
# 执行步骤
success = self._execute_step(step, instance)
ifnot success:
# 步骤执行失败，开始补偿
instance.status = SagaStatus.FAILED
self._compensate_saga(instance)
return
# 所有步骤成功完成
instance.status = SagaStatus.COMPLETED
instance.updated_at = datetime.now()
print(f"Saga {saga_id} 执行成功")
except Exception as e:
instance.status = SagaStatus.FAILED
instance.error = str(e)
instance.updated_at = datetime.now()
print(f"Saga {saga_id} 执行失败: {str(e)}")
def_execute_step(self, step: SagaStep, instance: SagaInstance) -> bool:
"""执行单个步骤"""
step.started_at = datetime.now()
for attempt inrange(step.max_retries):
try:
print(f"执行步骤: {step.name} (尝试 {attempt + 1}/{step.max_retries})")
# 执行正向操作
result = step.execute_fn(instance.input_data, instance.output_data)
# 保存执行结果
instance.output_data[step.name] = result
step.status = StepStatus.SUCCESS
step.completed_at = datetime.now()
instance.updated_at = datetime.now()
print(f"步骤 {step.name} 执行成功")
returnTrue
except Exception as e:
step.error = str(e)
step.retry_count = attempt + 1
if attempt < step.max_retries - 1:
# 还有重试机会
delay = step.retry_delay * (2 ** attempt) # 指数退避
print(f"步骤 {step.name} 执行失败，{delay}秒后重试: {str(e)}")
time.sleep(delay)
else:
# 重试次数用尽
step.status = StepStatus.FAILED
step.completed_at = datetime.now()
instance.updated_at = datetime.now()
print(f"步骤 {step.name} 执行失败，重试次数用尽: {str(e)}")
returnFalse
returnFalse
def_compensate_saga(self, instance: SagaInstance):
"""补偿Saga（逆序执行补偿操作）"""
instance.status = SagaStatus.COMPENSATING
instance.compensating = True
instance.updated_at = datetime.now()
print(f"开始补偿Saga {instance.saga_id}")
# 逆序执行已成功步骤的补偿操作
successful_steps = [
step for step in instance.steps
if step.status == StepStatus.SUCCESS
]
for step inreversed(successful_steps):
try:
print(f"补偿步骤: {step.name}")
# 执行补偿操作
step.compensate_fn(instance.input_data, instance.output_data)
step.status = StepStatus.COMPENSATED
print(f"步骤 {step.name} 补偿成功")
except Exception as e:
# 补偿失败，记录日志并继续尝试补偿其他步骤
print(f"步骤 {step.name} 补偿失败: {str(e)}")
# 实际项目中应该记录到死信队列，由人工处理
instance.updated_at = datetime.now()
print(f"Saga {instance.saga_id} 补偿完成")
defget_saga_status(self, saga_id: str) -> Optional[Dict]:
"""获取Saga状态"""
if saga_id notinself.saga_instances:
returnNone
instance = self.saga_instances[saga_id]
return asdict(instance)
# 3. 业务函数定义
classOrderService:
@staticmethod
defcreate_order(input_data: Dict, output_data: Dict) -> Dict:
"""创建订单（步骤1）"""
print(" 执行: 创建订单")
# 模拟业务逻辑
order_id = f"order_{int(time.time())}"
# 这里应该是数据库操作
# order = OrderRepository.save(...)
return {
"order_id": order_id,
"status": "created",
"created_at": datetime.now().isoformat()
}
@staticmethod
defcompensate_create_order(input_data: Dict, output_data: Dict):
"""补偿：取消订单"""
print(" 补偿: 取消订单")
# 获取订单ID
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
if order_id:
# 实际应该是数据库更新操作
# OrderRepository.update_status(order_id, "cancelled")
print(f" 订单 {order_id} 已取消")
classInventoryService:
@staticmethod
defdeduct_stock(input_data: Dict, output_data: Dict) -> Dict:
"""扣减库存（步骤2）"""
print(" 执行: 扣减库存")
# 模拟业务逻辑
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
# 这里应该是数据库操作
# InventoryRepository.deduct(...)
return {
"operation": "deduct",
"order_id": order_id,
"status": "deducted",
"timestamp": datetime.now().isoformat()
}
@staticmethod
defcompensate_deduct_stock(input_data: Dict, output_data: Dict):
"""补偿：恢复库存"""
print(" 补偿: 恢复库存")
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
if order_id:
# 实际应该是数据库更新操作
# InventoryRepository.restore(...)
print(f" 订单 {order_id} 的库存已恢复")
classPaymentService:
@staticmethod
defprocess_payment(input_data: Dict, output_data: Dict) -> Dict:
"""处理支付（步骤3）"""
print(" 执行: 处理支付")
# 模拟业务逻辑
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
# 这里应该是调用支付网关
# payment_result = PaymentGateway.charge(...)
# 模拟支付失败，测试补偿流程
if input_data.get("simulate_payment_failure", False):
raise Exception("支付失败：余额不足")
return {
"payment_id": f"payment_{int(time.time())}",
"order_id": order_id,
"amount": input_data.get("amount", 100),
"status": "paid",
"timestamp": datetime.now().isoformat()
}
@staticmethod
defcompensate_process_payment(input_data: Dict, output_data: Dict):
"""补偿：退款"""
print(" 补偿: 退款")
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
if order_id:
# 实际应该是调用支付网关退款
# PaymentGateway.refund(...)
print(f" 订单 {order_id} 的支付已退款")
classNotificationService:
@staticmethod
defsend_confirmation(input_data: Dict, output_data: Dict) -> Dict:
"""发送确认通知（步骤4）"""
print(" 执行: 发送确认通知")
# 模拟业务逻辑
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
# 这里应该是调用邮件/短信服务
# EmailService.send(...)
return {
"notification_id": f"notify_{int(time.time())}",
"order_id": order_id,
"type": "order_confirmation",
"status": "sent",
"timestamp": datetime.now().isoformat()
}
@staticmethod
defcompensate_send_confirmation(input_data: Dict, output_data: Dict):
"""补偿：发送取消通知"""
print(" 补偿: 发送取消通知")
order_result = output_data.get("create_order", {})
order_id = order_result.get("order_id")
if order_id:
# 实际应该是发送取消通知
# EmailService.send_cancellation(...)
print(f" 订单 {order_id} 的取消通知已发送")
# 4. 创建Saga定义
defcreate_order_saga() -> SagaOrchestrator:
"""创建订单Saga"""
# 定义Saga步骤
steps = [
SagaStep(
name="create_order",
execute_fn=OrderService.create_order,
compensate_fn=OrderService.compensate_create_order,
max_retries=3,
retry_delay=1
),
SagaStep(
name="deduct_stock",
execute_fn=InventoryService.deduct_stock,
compensate_fn=InventoryService.compensate_deduct_stock,
max_retries=3,
retry_delay=2
),
SagaStep(
name="process_payment",
execute_fn=PaymentService.process_payment,
compensate_fn=PaymentService.compensate_process_payment,
max_retries=2,
retry_delay=3
),
SagaStep(
name="send_confirmation",
execute_fn=NotificationService.send_confirmation,
compensate_fn=NotificationService.compensate_send_confirmation,
max_retries=2,
retry_delay=1
)
]
# 创建协调器
return SagaOrchestrator(
saga_name="create_order_saga",
steps=steps
)
# 5. 使用示例
if __name__ == "__main__":
print("=" * 60)
print("Saga模式实战：电商下单流程")
print("=" * 60)
# 创建Saga协调器
saga_orchestrator = create_order_saga()
print("\n1. 正常流程测试")
print("-" * 40)
# 正常下单
normal_order_data = {
"user_id": 12345,
"items": [
{"product_id": 1001, "quantity": 2, "price": 99.9},
{"product_id": 1002, "quantity": 1, "price": 199.9}
],
"amount": 399.7,
"address": "北京市海淀区..."
}
saga_id = saga_orchestrator.start_saga(normal_order_data)
# 等待执行完成
time.sleep(5)
# 获取状态
status = saga_orchestrator.get_saga_status(saga_id)
if status:
print(f"\nSaga状态: {status['status']}")
if status['error']:
print(f"错误信息: {status['error']}")
print("\n2. 异常流程测试（支付失败）")
print("-" * 40)
# 模拟支付失败的下单
failing_order_data = {
"user_id": 12346,
"items": [
{"product_id": 1003, "quantity": 1, "price": 299.9}
],
"amount": 299.9,
"address": "上海市浦东区...",
"simulate_payment_failure": True# 触发支付失败
}
failing_saga_id = saga_orchestrator.start_saga(failing_order_data)
# 等待执行完成
time.sleep(8)
# 获取状态
failing_status = saga_orchestrator.get_saga_status(failing_saga_id)
if failing_status:
print(f"\nSaga状态: {failing_status['status']}")
if failing_status['error']:
print(f"错误信息: {failing_status['error']}")
# 显示各步骤状态
print("\n步骤状态:")
for i, step inenumerate(failing_status['steps']):
print(f" {i+1}. {step['name']}: {step['status']}")
if step['error']:
print(f" 错误: {step['error']}")
print("\n" + "=" * 60)
print("Saga模式总结:")
print("=" * 60)
print("""
1. Saga模式适用于长业务流程，通过本地事务+补偿机制实现最终一致性
2. 编排式Saga由中央协调器管理流程，适合复杂业务逻辑
3. 补偿操作必须幂等，支持重试
4. 需要处理网络分区、消息重复等分布式系统常见问题
5. 最终一致性允许短暂的数据不一致，换取更高的系统可用性
""")
幂等性是分布式系统的基础，所有操作（包括补偿操作）必须支持重复执行。
# idempotent_operations.py
import redis
import json
from functools import wraps
classIdempotencyManager:
def__init__(self, redis_client):
self.redis = redis_client
defidempotent(self, operation_type: str, key_fields: list):
"""幂等性装饰器"""
defdecorator(func):
@wraps(func)
defwrapper(*args, **kwargs):
# 生成幂等键
idempotency_key = self._generate_idempotency_key(
operation_type, key_fields, *args, **kwargs
)
# 检查是否已执行
ifself._is_operation_completed(idempotency_key):
# 返回上次执行结果
cached_result = self.redis.get(idempotency_key)
if cached_result:
return json.loads(cached_result)
else:
# 缓存丢失，重新执行
pass
# 执行操作
result = func(*args, **kwargs)
# 保存执行结果
self._mark_operation_completed(idempotency_key, result)
return result
return wrapper
return decorator
def_generate_idempotency_key(self, operation_type, key_fields, *args, **kwargs):
"""生成幂等键"""
# 简单实现，实际应该更复杂
key_parts = [operation_type]
# 从参数中提取关键字段
for field in key_fields:
if field in kwargs:
key_parts.append(f"{field}:{kwargs[field]}")
return"::".join(key_parts)
def_is_operation_completed(self, idempotency_key: str) -> bool:
"""检查操作是否已完成"""
returnself.redis.exists(idempotency_key)
def_mark_operation_completed(self, idempotency_key: str, result):
"""标记操作已完成"""
# 设置过期时间，避免内存泄漏
self.redis.setex(
idempotency_key,
24 * 3600, # 24小时
json.dumps(result)
)
# 使用示例
if __name__ == "__main__":
import redis as redis_client
# 初始化Redis连接
redis = redis_client.Redis(host='localhost', port=6379)
# 创建幂等管理器
idempotency_mgr = IdempotencyManager(redis)
# 定义幂等操作
@idempotency_mgr.idempotent(
operation_type="deduct_inventory",
key_fields=["order_id", "product_id"]
)
defdeduct_inventory(order_id: str, product_id: str, quantity: int):
"""扣减库存（幂等操作）"""
print(f"执行库存扣减: 订单{order_id}, 商品{product_id}, 数量{quantity}")
# 这里应该是数据库操作
# 检查是否已扣减过
# 如果已扣减，直接返回
# 否则执行扣减
return {
"success": True,
"order_id": order_id,
"product_id": product_id,
"quantity": quantity,
"remaining_stock": 95# 模拟剩余库存
}
# 第一次调用
result1 = deduct_inventory(
order_id="order_123",
product_id="product_456",
quantity=5
)
print(f"第一次调用结果: {result1}")
# 第二次调用（幂等性测试）
result2 = deduct_inventory(
order_id="order_123",
product_id="product_456",
quantity=5
)
print(f"第二次调用结果: {result2}")
print(f"两次调用结果是否相同: {result1 == result2}")
# reconciliation_system.py
import threading
import time
from datetime import datetime, timedelta
from typing importDict, List, Optional
from dataclasses import dataclass, asdict
import json
@dataclass
classTransactionRecord:
"""事务记录"""
transaction_id: str
saga_id: str
step_name: str
status: str# pending, success, failed, compensated
input_data: Dict
output_data: Optional[Dict]
created_at: datetime
updated_at: datetime
error: Optional[str] = None
classReconciliationSystem:
def__init__(self):
self.transactions: Dict[str, TransactionRecord] = {}
self.lock = threading.Lock()
# 启动定时对账
self._start_reconciliation_job()
defrecord_transaction(self, transaction: TransactionRecord):
"""记录事务"""
withself.lock:
self.transactions[transaction.transaction_id] = transaction
defreconcile(self):
"""执行对账"""
print("\n开始对账检查...")
# 找出异常事务
abnormal_transactions = self._find_abnormal_transactions()
if abnormal_transactions:
print(f"发现 {len(abnormal_transactions)} 个异常事务:")
for tx in abnormal_transactions:
print(f" - 事务ID: {tx.transaction_id}")
print(f" 状态: {tx.status}")
print(f" Saga: {tx.saga_id}")
print(f" 步骤: {tx.step_name}")
if tx.error:
print(f" 错误: {tx.error}")
# 尝试自动修复
self._attempt_auto_fix(tx)
else:
print("所有事务状态正常")
def_find_abnormal_transactions(self) -> List[TransactionRecord]:
"""找出异常事务"""
abnormal = []
now = datetime.now()
threshold = now - timedelta(minutes=30) # 30分钟未完成
for tx inself.transactions.values():
# 检查超时事务
if tx.status == "pending"and tx.created_at < threshold:
abnormal.append(tx)
# 检查补偿失败的事务
elif tx.status == "failed"and"compensate"in tx.step_name:
abnormal.append(tx)
return abnormal
def_attempt_auto_fix(self, transaction: TransactionRecord):
"""尝试自动修复"""
print(f" 尝试自动修复事务 {transaction.transaction_id}...")
# 根据事务类型采取不同的修复策略
if transaction.status == "pending"and transaction.created_at < datetime.now() - timedelta(minutes=30):
# 超时事务，标记为失败并触发补偿
print(f" 事务超时，标记为失败")
# 在实际项目中，这里应该触发补偿流程
elif"compensate"in transaction.step_name and transaction.status == "failed":
# 补偿失败，记录到死信队列
print(f" 补偿失败，记录到死信队列")
# 在实际项目中，这里应该记录到死信队列，等待人工处理
def_start_reconciliation_job(self):
"""启动定时对账任务"""
defreconciliation_job():
whileTrue:
time.sleep(300) # 每5分钟执行一次
self.reconcile()
thread = threading.Thread(target=reconciliation_job, daemon=True)
thread.start()
# 使用示例
if __name__ == "__main__":
# 创建对账系统
reconciliation_sys = ReconciliationSystem()
# 模拟记录一些事务
now = datetime.now()
# 正常事务
normal_tx = TransactionRecord(
transaction_id="tx_001",
saga_id="saga_001",
step_name="create_order",
status="success",
input_data={"user_id": 123, "items": [...]},
output_data={"order_id": "order_123"},
created_at=now - timedelta(minutes=10),
updated_at=now - timedelta(minutes=10)
)
reconciliation_sys.record_transaction(normal_tx)
# 超时事务
timeout_tx = TransactionRecord(
transaction_id="tx_002",
saga_id="saga_002",
step_name="deduct_stock",
status="pending",
input_data={"order_id": "order_124", "product_id": "product_456"},
output_data=None,
created_at=now - timedelta(minutes=35), # 超时
updated_at=now - timedelta(minutes=35)
)
reconciliation_sys.record_transaction(timeout_tx)
# 补偿失败事务
compensate_failed_tx = TransactionRecord(
transaction_id="tx_003",
saga_id="saga_003",
step_name="compensate_payment",
status="failed",
input_data={"order_id": "order_125", "payment_id": "payment_789"},
output_data=None,
created_at=now - timedelta(minutes=20),
updated_at=now - timedelta(minutes=20),
error="支付网关不可用"
)
reconciliation_sys.record_transaction(compensate_failed_tx)
print("事务记录完成，等待对账...")
time.sleep(310) # 等待第一次对账执行
- 1. 避免全局锁：每个本地事务独立提交，不长期锁定资源
- 3. 松耦合：服务间通过事件或API通信，技术栈可异构
- 1. 补偿逻辑复杂：每个正向操作都需要对应的补偿操作
| | |
| 短事务、强一致性 | | |
| 长流程、最终一致性 | | |
| 异步处理、解耦 | | |
| 简单查询 | | |
- • 需要保证预订的原子性（要么全部成功，要么全部失败）
问题： 你会选择哪种分布式事务方案？如何设计补偿机制？如何保证数据最终一致？
提示： 考虑业务流程复杂度、数据一致性要求、系统可用性和实现成本。
"微服务不是银弹，而是需要精心设计和管理的一组分布式系统模式。"
微服务将单体应用拆分成多个独立服务，带来了天然的分布式复杂性：
- 2. 数据一致性难题：跨服务事务、最终一致性、补偿机制
- 1. 日志收集困难：分布式环境下日志分散，关联性差
- 3. 数据安全风险：跨服务数据流转，敏感信息保护难
# service_design_principles.py
classServiceDesignPrinciples:
@staticmethod
defsingle_responsibility():
"""单一职责原则"""
return {
"principle": "每个服务应该专注于一个特定的业务领域",
"examples": [
"用户服务：只处理用户相关的功能（注册、登录、信息管理）",
"订单服务：只处理订单相关的功能（创建、查询、取消）",
"支付服务：只处理支付相关的功能（扣款、退款、对账）"
],
"benefits": [
"服务职责清晰，易于理解和维护",
"变更影响范围小，降低风险",
"便于团队分工和职责划分"
]
}
@staticmethod
defhigh_cohesion_low_coupling():
"""高内聚低耦合原则"""
return {
"principle": "服务内部高度相关，服务间依赖最小化",
"examples": [
"服务内部：订单创建、状态管理、价格计算高度相关",
"服务间：通过API契约交互，不依赖内部实现",
"数据：每个服务管理自己的数据，禁止直接访问其他服务数据库"
],
"benefits": [
"服务可独立开发、测试、部署",
"故障隔离，避免级联失败",
"技术栈可选，便于技术演进"
]
}
@staticmethod
defdesign_for_failure():
"""面向失败设计"""
return {
"principle": "假设任何组件都可能失败，设计容错机制",
"examples": [
"超时控制：为所有外部调用设置合理的超时时间",
"重试策略：对瞬态故障进行有限次重试（指数退避）",
"熔断器：当失败率达到阈值时，快速失败避免雪崩",
"降级方案：核心功能不可用时，提供基本服务或友好提示"
],
"benefits": [
"提高系统可用性和韧性",
"优雅处理部分故障，不影响整体功能",
"减少故障恢复时间和影响范围"
]
}
# 使用示例
if __name__ == "__main__":
principles = ServiceDesignPrinciples()
print("微服务设计原则")
print("=" * 50)
principles_list = [
principles.single_responsibility(),
principles.high_cohesion_low_coupling(),
principles.design_for_failure()
]
for i, principle inenumerate(principles_list, 1):
print(f"\n{i}. {principle['principle']}")
print("-" * 30)
print("示例：")
for example in principle['examples']:
print(f" • {example}")
print("\n优势：")
for benefit in principle['benefits']:
print(f" ✓ {benefit}")
6.2.2 服务网格（Service Mesh）实践
服务网格将网络通信功能从业务代码中剥离，作为基础设施层：
# istio_config_example.yaml
apiVersion:networking.istio.io/v1alpha3
kind:VirtualService
metadata:
name:order-service
spec:
hosts:
-order-service
http:
-match:
-uri:
prefix:/orders
route:
-destination:
host:order-service
subset:v1
weight:90
-destination:
host:order-service
subset:v2
weight:10
retries:
attempts:3
perTryTimeout:2s
retryOn:gateway-error,connect-failure,refused-stream
timeout:10s
-match:
-uri:
prefix:/health
route:
-destination:
host:order-service
subset:v1
fault:
delay:
percentage:
value:10.0
fixedDelay:5s
---
apiVersion:networking.istio.io/v1alpha3
kind:DestinationRule
metadata:
name:order-service
spec:
host:order-service
subsets:
-name:v1
labels:
version:v1.0
-name:v2
labels:
version:v2.0
trafficPolicy:
connectionPool:
tcp:
maxConnections:100
http:
http1MaxPendingRequests:1000
http2MaxRequests:1000
maxRequestsPerConnection:10
outlierDetection:
consecutive5xxErrors:5
interval:30s
baseEjectionTime:30s
maxEjectionPercent:50
---
apiVersion:security.istio.io/v1beta1
kind:AuthorizationPolicy
metadata:
name:order-service-auth
spec:
selector:
matchLabels:
app:order-service
rules:
-from:
-source:
principals: ["cluster.local/ns/default/sa/user-service"]
to:
-operation:
methods: ["GET"]
paths: ["/orders/*"]
-from:
-source:
principals: ["cluster.local/ns/default/sa/payment-service"]
to:
-operation:
methods: ["POST"]
paths: ["/orders/*/payment"]
# observability_system.py
import logging
import time
from datetime import datetime
from typing importDict, Any, Optional
import json
from dataclasses import dataclass, asdict
import threading
# 配置日志
logging.basicConfig(
level=logging.INFO,
format='%(asctime)s - %(name)s - %(levelname)s - %(message)s'
)
@dataclass
classTraceContext:
"""追踪上下文"""
trace_id: str
span_id: str
parent_span_id: Optional[str] = None
service_name: Optional[str] = None
operation_name: Optional[str] = None
@dataclass
classMetricData:
"""指标数据"""
name: str
value: float
timestamp: datetime
tags: Dict[str, str]
@dataclass
classLogEntry:
"""日志条目"""
timestamp: datetime
level: str
message: str
service_name: str
trace_id: Optional[str] = None
span_id: Optional[str] = None
extra_fields: Optional[Dict[str, Any]] = None
classObservabilitySystem:
def__init__(self, service_name: str):
self.service_name = service_name
# 初始化组件
self.logger = self._setup_logger()
self.metrics_collector = self._setup_metrics_collector()
self.trace_collector = self._setup_trace_collector()
# 启动指标收集
self._start_metrics_collection()
def_setup_logger(self):
"""设置结构化日志"""
logger = logging.getLogger(self.service_name)
# 添加JSON格式化器（简化实现）
classJsonFormatter(logging.Formatter):
defformat(self, record):
log_entry = LogEntry(
timestamp=datetime.now(),
level=record.levelname,
message=record.getMessage(),
service_name=self.service_name,
trace_id=getattr(record, 'trace_id', None),
span_id=getattr(record, 'span_id', None),
extra_fields=getattr(record, 'extra_fields', {})
)
return json.dumps(asdict(log_entry), default=str)
handler = logging.StreamHandler()
handler.setFormatter(JsonFormatter())
logger.addHandler(handler)
return logger
def_setup_metrics_collector(self):
"""设置指标收集器"""
classMetricsCollector:
def__init__(self):
self.metrics: Dict[str, MetricData] = {}
self.lock = threading.Lock()
defrecord(self, name: str, value: float, tags: Dict[str, str] = None):
withself.lock:
metric = MetricData(
name=name,
value=value,
timestamp=datetime.now(),
tags=tags or {}
)
self.metrics[name] = metric
defincrement(self, name: str, tags: Dict[str, str] = None):
self.record(name, 1.0, tags)
defget_metrics(self):
withself.lock:
returnlist(self.metrics.values())
return MetricsCollector()
def_setup_trace_collector(self):
"""设置追踪收集器"""
classTraceCollector:
def__init__(self):
self.traces: Dict[str, List] = {}
self.lock = threading.Lock()
defstart_span(self, trace_id: str, span_id: str, operation: str):
withself.lock:
if trace_id notinself.traces:
self.traces[trace_id] = []
self.traces[trace_id].append({
"span_id": span_id,
"operation": operation,
"start_time": time.time(),
"end_time": None,
"tags": {}
})
defend_span(self, trace_id: str, span_id: str, tags: Dict[str, str] = None):
withself.lock:
if trace_id inself.traces:
for span inself.traces[trace_id]:
if span["span_id"] == span_id:
span["end_time"] = time.time()
if tags:
span["tags"].update(tags)
break
return TraceCollector()
def_start_metrics_collection(self):
"""启动指标收集"""
defcollect_system_metrics():
import psutil
import os
whileTrue:
try:
# 收集系统指标
cpu_percent = psutil.cpu_percent(interval=1)
memory_percent = psutil.virtual_memory().percent
disk_usage = psutil.disk_usage('/').percent
# 记录指标
self.metrics_collector.record(
"system.cpu.percent",
cpu_percent,
{"service": self.service_name}
)
self.metrics_collector.record(
"system.memory.percent",
memory_percent,
{"service": self.service_name}
)
self.metrics_collector.record(
"system.disk.percent",
disk_usage,
{"service": self.service_name}
)
# 收集JVM指标（Python进程）
process = psutil.Process(os.getpid())
memory_info = process.memory_info()
self.metrics_collector.record(
"process.memory.rss",
memory_info.rss,
{"service": self.service_name}
)
self.metrics_collector.record(
"process.cpu.percent",
process.cpu_percent(),
{"service": self.service_name}
)
except Exception as e:
print(f"指标收集失败: {str(e)}")
time.sleep(10) # 10秒收集一次
thread = threading.Thread(target=collect_system_metrics, daemon=True)
thread.start()
deflog_with_context(self, level: str, message: str,
trace_context: Optional[TraceContext] = None,
extra_fields: Optional[Dict[str, Any]] = None):
"""带上下文的日志记录"""
log_record = self.logger.makeRecord(
name=self.service_name,
level=getattr(logging, level.upper()),
fn="",
lno=0,
msg=message,
args=(),
exc_info=None
)
# 添加追踪信息
if trace_context:
log_record.trace_id = trace_context.trace_id
log_record.span_id = trace_context.span_id
# 添加额外字段
if extra_fields:
log_record.extra_fields = extra_fields
self.logger.handle(log_record)
defrecord_http_request(self, method: str, path: str, status_code: int,
duration_ms: float, trace_context: Optional[TraceContext] = None):
"""记录HTTP请求指标"""
# 记录请求计数
self.metrics_collector.increment(
"http.requests.total",
{
"service": self.service_name,
"method": method,
"path": path,
"status": str(status_code)
}
)
# 记录请求时长
self.metrics_collector.record(
"http.requests.duration",
duration_ms,
{
"service": self.service_name,
"method": method,
"path": path,
"status": str(status_code)
}
)
# 记录日志
self.log_with_context(
"INFO",
f"HTTP请求: {method}{path} - {status_code} ({duration_ms}ms)",
trace_context
)
defrecord_business_event(self, event_type: str, event_data: Dict[str, Any],
trace_context: Optional[TraceContext] = None):
"""记录业务事件"""
# 记录事件计数
self.metrics_collector.increment(
"business.events.total",
{
"service": self.service_name,
"event_type": event_type
}
)
# 记录日志
self.log_with_context(
"INFO",
f"业务事件: {event_type}",
trace_context,
{"event_data": event_data}
)
# 使用示例
if __name__ == "__main__":
# 初始化可观测性系统
obs_system = ObservabilitySystem(service_name="order-service")
# 模拟一次HTTP请求
trace_context = TraceContext(
trace_id="trace_123456",
span_id="span_789",
service_name="order-service",
operation_name="create_order"
)
# 开始追踪
obs_system.trace_collector.start_span(
trace_context.trace_id,
trace_context.span_id,
trace_context.operation_name
)
# 模拟请求处理
start_time = time.time()
# 业务逻辑
try:
print("处理订单创建请求...")
time.sleep(0.1) # 模拟处理时间
# 记录业务事件
obs_system.record_business_event(
event_type="order_created",
event_data={
"order_id": "order_123",
"user_id": "user_456",
"amount": 199.9
},
trace_context=trace_context
)
status_code = 200
success = True
except Exception as e:
status_code = 500
success = False
# 记录错误日志
obs_system.log_with_context(
"ERROR",
f"订单创建失败: {str(e)}",
trace_context,
{"error_type": type(e).__name__}
)
# 计算处理时长
end_time = time.time()
duration_ms = (end_time - start_time) * 1000
# 记录HTTP请求指标
obs_system.record_http_request(
method="POST",
path="/orders",
status_code=status_code,
duration_ms=duration_ms,
trace_context=trace_context
)
# 结束追踪
obs_system.trace_collector.end_span(
trace_context.trace_id,
trace_context.span_id,
{
"http.status_code": status_code,
"success": success,
"duration_ms": duration_ms
}
)
print("\n收集的指标:")
for metric in obs_system.metrics_collector.get_metrics():
print(f" {metric.name}: {metric.value}{metric.tags}")
print("\n收集的追踪:")
for trace_id, spans in obs_system.trace_collector.traces.items():
print(f" 追踪ID: {trace_id}")
for span in spans:
print(f" 跨度ID: {span['span_id']}")
print(f" 操作: {span['operation']}")
print(f" 时长: {(span['end_time'] - span['start_time']) * 1000:.2f}ms")
# security_governance.py
import time
from datetime import datetime
from typing importDict, List, Optional, Set
from dataclasses import dataclass, asdict
import hashlib
import hmac
import base64
@dataclass
classSecurityPolicy:
"""安全策略"""
name: str
type: str# authentication, authorization, encryption, etc.
config: Dict[str, any]
enabled: bool = True
created_at: datetime = None
updated_at: datetime = None
def__post_init__(self):
ifself.created_at isNone:
self.created_at = datetime.now()
ifself.updated_at isNone:
self.updated_at = datetime.now()
@dataclass
classAccessControlRule:
"""访问控制规则"""
service_name: str
endpoint: str
allowed_principals: Set[str] # 允许访问的主体（服务名、角色等）
denied_principals: Set[str] # 拒绝访问的主体
conditions: Dict[str, any] # 额外条件（如时间、IP等）
priority: int = 100# 优先级（数值越小优先级越高）
classSecurityGovernanceSystem:
def__init__(self):
self.security_policies: Dict[str, SecurityPolicy] = {}
self.access_control_rules: List[AccessControlRule] = []
# 初始化默认策略
self._initialize_default_policies()
def_initialize_default_policies(self):
"""初始化默认安全策略"""
# 1. 传输层安全策略
tls_policy = SecurityPolicy(
name="tls_encryption",
type="encryption",
config={
"protocol": "TLSv1.3",
"ciphers": [
"TLS_AES_256_GCM_SHA384",
"TLS_CHACHA20_POLY1305_SHA256",
"TLS_AES_128_GCM_SHA256"
],
"require_client_cert": True,
"certificate_rotation_days": 90
}
)
self.security_policies[tls_policy.name] = tls_policy
# 2. JWT认证策略
jwt_policy = SecurityPolicy(
name="jwt_authentication",
type="authentication",
config={
"algorithm": "RS256",
"issuer": "auth-service",
"audience": ["order-service", "user-service"],
"token_expiry_minutes": 60,
"refresh_token_expiry_days": 7,
"public_key_url": "http://auth-service/.well-known/jwks.json"
}
)
self.security_policies[jwt_policy.name] = jwt_policy
# 3. 访问控制策略
acl_policy = SecurityPolicy(
name="access_control",
type="authorization",
config={
"default_action": "deny",
"rule_evaluation_order": "priority_asc",
"audit_enabled": True,
"audit_log_retention_days": 365
}
)
self.security_policies[acl_policy.name] = acl_policy
defadd_access_control_rule(self, rule: AccessControlRule):
"""添加访问控制规则"""
self.access_control_rules.append(rule)
# 按优先级排序
self.access_control_rules.sort(key=lambda x: x.priority)
print(f"添加访问控制规则: {rule.service_name}.{rule.endpoint}")
defcheck_access(self, service_name: str, endpoint: str,
principal: str, context: Dict[str, any]) -> bool:
"""检查访问权限"""
# 查找匹配的规则
matched_rules = [
rule for rule inself.access_control_rules
if rule.service_name == service_name and
self._match_endpoint(rule.endpoint, endpoint) and
self._match_conditions(rule.conditions, context)
]
ifnot matched_rules:
# 没有匹配规则，使用默认策略
default_policy = self.security_policies.get("access_control")
default_action = default_policy.config.get("default_action", "deny")
print(f"访问检查: 无匹配规则, 默认操作: {default_action}")
return default_action == "allow"
# 按优先级处理（第一个匹配的规则决定）
rule = matched_rules[0]
if principal in rule.denied_principals:
print(f"访问拒绝: 主体 {principal} 在拒绝列表中")
returnFalse
if principal in rule.allowed_principals:
print(f"访问允许: 主体 {principal} 在允许列表中")
returnTrue
# 未明确允许或拒绝
default_action = self.security_policies["access_control"].config["default_action"]
print(f"访问检查: 主体 {principal} 未明确允许或拒绝, 默认操作: {default_action}")
return default_action == "allow"
def_match_endpoint(self, rule_endpoint: str, request_endpoint: str) -> bool:
"""匹配端点（支持通配符）"""
if rule_endpoint == request_endpoint:
returnTrue
if"*"in rule_endpoint:
# 简单的通配符匹配
pattern = rule_endpoint.replace("*", ".*")
import re
return re.match(pattern, request_endpoint) isnotNone
returnFalse
def_match_conditions(self, conditions: Dict[str, any],
context: Dict[str, any]) -> bool:
"""匹配条件"""
ifnot conditions:
returnTrue
for key, expected_value in conditions.items():
actual_value = context.get(key)
if actual_value != expected_value:
returnFalse
returnTrue
defgenerate_service_token(self, service_name: str,
audience: List[str]) -> str:
"""生成服务间通信令牌"""
# 实际项目中应该使用JWT或其他安全令牌
# 这里只是模拟
payload = {
"sub": service_name,
"iss": "security-governance-system",
"aud": audience,
"iat": int(time.time()),
"exp": int(time.time()) + 3600, # 1小时有效
"jti": f"token_{int(time.time())}_{hash(service_name) % 10000}"
}
# 简化的签名（实际应该使用非对称加密）
secret_key = "your-secret-key-here"
# 创建签名
message = f"{payload['sub']}:{payload['aud'][0]}:{payload['exp']}"
signature = hmac.new(
secret_key.encode(),
message.encode(),
hashlib.sha256
).digest()
# 编码令牌
token_payload = base64.urlsafe_b64encode(
json.dumps(payload).encode()
).decode()
token_signature = base64.urlsafe_b64encode(signature).decode()
returnf"{token_payload}.{token_signature}"
defverify_service_token(self, token: str,
expected_audience: str) -> Optional[Dict]:
"""验证服务令牌"""
try:
parts = token.split(".")
iflen(parts) != 2:
returnNone
payload_part, signature_part = parts
# 解码载荷
payload_json = base64.urlsafe_b64decode(payload_part).decode()
payload = json.loads(payload_json)
# 检查过期时间
if payload["exp"] < int(time.time()):
print(f"令牌已过期: exp={payload['exp']}, now={int(time.time())}")
returnNone
# 检查受众
if expected_audience notin payload["aud"]:
print(f"令牌受众不匹配: expected={expected_audience}, actual={payload['aud']}")
returnNone
# 验证签名（实际项目应该更复杂）
secret_key = "your-secret-key-here"
message = f"{payload['sub']}:{payload['aud'][0]}:{payload['exp']}"
expected_signature = hmac.new(
secret_key.encode(),
message.encode(),
hashlib.sha256
).digest()
actual_signature = base64.urlsafe_b64decode(signature_part)
ifnot hmac.compare_digest(expected_signature, actual_signature):
print("令牌签名验证失败")
returnNone
return payload
except Exception as e:
print(f"令牌验证异常: {str(e)}")
returnNone
# 使用示例
if __name__ == "__main__":
# 初始化安全治理系统
security_system = SecurityGovernanceSystem()
# 添加访问控制规则
order_service_rule = AccessControlRule(
service_name="order-service",
endpoint="/orders/*",
allowed_principals={"user-service", "payment-service", "inventory-service"},
denied_principals={"untrusted-service"},
conditions={"time_window": "09:00-18:00"},
priority=10
)
security_system.add_access_control_rule(order_service_rule)
# 模拟访问检查
print("\n访问控制检查:")
print("-" * 30)
test_cases = [
{
"service": "order-service",
"endpoint": "/orders/123",
"principal": "user-service",
"context": {"time_window": "10:00"}
},
{
"service": "order-service",
"endpoint": "/orders/123",
"principal": "untrusted-service",
"context": {"time_window": "10:00"}
},
{
"service": "order-service",
"endpoint": "/orders/123",
"principal": "unknown-service",
"context": {"time_window": "10:00"}
}
]
for test_case in test_cases:
allowed = security_system.check_access(
service_name=test_case["service"],
endpoint=test_case["endpoint"],
principal=test_case["principal"],
context=test_case["context"]
)
print(f" 服务: {test_case['service']}")
print(f" 端点: {test_case['endpoint']}")
print(f" 主体: {test_case['principal']}")
print(f" 结果: {'允许'if allowed else'拒绝'}")
print()
# 令牌生成和验证
print("\n服务令牌演示:")
print("-" * 30)
# 生成令牌
token = security_system.generate_service_token(
service_name="user-service",
audience=["order-service", "payment-service"]
)
print(f"生成的令牌: {token[:50]}...")
# 验证令牌
verified_payload = security_system.verify_service_token(
token=token,
expected_audience="order-service"
)
if verified_payload:
print("令牌验证成功!")
print(f" 主体: {verified_payload['sub']}")
print(f" 受众: {verified_payload['aud']}")
print(f" 过期时间: {verified_payload['exp']}")
else:
print("令牌验证失败!")
- 1. 智能监控与预警：AI算法自动识别异常模式，提前预警
- 2. 自动化故障处理：基于历史数据自动生成故障处理方案
- 2. 混合云部署：跨公有云、私有云、边缘节点的统一治理
Serverless架构为微服务提供了新的可能性：
- 1. 函数即服务（FaaS）：事件驱动的无服务器函数
假设你负责一个正在快速发展的创业公司的技术架构，当前系统：
问题： 你会如何规划微服务架构的演进路线？需要考虑哪些关键因素？如何平衡技术债务和业务需求？
提示： 从单体到微服务的迁移策略、团队组织结构调整、技术栈选择、监控体系建设等方面考虑。
经过这周的深入学习，相信你已经对微服务架构有了全面而深刻的理解。让我们回顾一下核心要点：
微服务不是简单的"拆分"，而是业务架构在技术层面的映射。成功的微服务拆分应该：
- • 服务发现 → Nacos（一体化）或Consul（多数据中心）
- • 分布式事务 → Saga（长流程）或TCC（强一致）
# microservice_maturity_model.py
classMicroserviceMaturityModel:
levels = {
"level_1": {
"name": "初始阶段",
"characteristics": [
"服务拆分初步尝试",
"基础设施基础建设",
"监控体系初步建立"
],
"next_steps": [
"完善服务治理",
"建立CI/CD流水线",
"优化监控告警"
]
},
"level_2": {
"name": "发展阶段",
"characteristics": [
"服务治理体系完善",
"自动化部署成熟",
"可观测性体系建立"
],
"next_steps": [
"引入服务网格",
"智能化运维",
"混沌工程实践"
]
},
"level_3": {
"name": "成熟阶段",
"characteristics": [
"服务网格全面应用",
"AI驱动智能运维",
"分布式事务成熟"
],
"next_steps": [
"Serverless架构探索",
"边缘计算融合",
"量子计算前瞻"
]
},
"level_4": {
"name": "领先阶段",
"characteristics": [
"自适应微服务架构",
"全链路智能化",
"跨云平台统一治理"
],
"next_steps": [
"持续创新引领",
"技术标准制定",
"开源社区贡献"
]
}
}
defassess(self, current_state: Dict[str, any]) -> Dict[str, any]:
"""评估当前微服务架构成熟度"""
# 简化的评估逻辑
score = self._calculate_score(current_state)
if score < 40:
returnself.levels["level_1"]
elif score < 70:
returnself.levels["level_2"]
elif score < 90:
returnself.levels["level_3"]
else:
returnself.levels["level_4"]
def_calculate_score(self, state: Dict[str, any]) -> int:
"""计算成熟度分数（简化）"""
score = 0
# 服务设计
if state.get("service_design") == "domain_driven":
score += 20
# 基础设施
if state.get("infrastructure") == "containerized":
score += 20
# 监控运维
if state.get("monitoring") == "full_observability":
score += 20
# 安全治理
if state.get("security") == "zero_trust":
score += 20
# 自动化程度
if state.get("automation") == "full_automation":
score += 20
returnmin(score, 100)
# 使用示例
if __name__ == "__main__":
model = MicroserviceMaturityModel()
current_state = {
"service_design": "domain_driven",
"infrastructure": "containerized",
"monitoring": "basic_monitoring",
"security": "basic_auth",
"automation": "partial_automation"
}
maturity = model.assess(current_state)
print("微服务架构成熟度评估")
print("=" * 50)
print(f"当前等级: {maturity['name']}")
print("\n主要特征:")
for char in maturity["characteristics"]:
print(f" • {char}")
print("\n下一步建议:")
for step in maturity["next_steps"]:
print(f" ✓ {step}")
- 1. 从理解业务开始：微服务本质是业务架构，深入理解业务比掌握技术更重要
- 2. 循序渐进：不要试图一步到位，从模块化单体开始，逐步拆分
- 3. 注重可观测性：在微服务架构中，监控和日志比代码更重要
- 4. 拥抱变化：微服务架构需要持续演进，保持开放和学习的心态
- 5. 平衡技术与业务：技术为业务服务，不要为了技术而技术
- 1. 服务网格（Service Mesh）：Istio、Linkerd的深入实践
- 2. 云原生技术栈：Kubernetes、Docker、Helm的深入应用
- 3. 分布式系统理论：CAP定理、一致性算法、共识机制
微服务架构不是终点，而是构建复杂系统的一种方法论。真正重要的是：
记住，好的架构不是设计出来的，而是演进出来的。不要追求完美的微服务拆分，而要关注如何通过合适的架构解决实际的业务问题。
希望这周的深入学习，能让你对微服务架构有更深刻的理解，并在实际项目中灵活应用。下周，我们将继续探索系统设计模式的深度应用。
思考题回顾： 回想一下本章开头的各个思考题，现在你有新的答案或见解吗？尝试用本周学到的知识重新思考这些问题。
实战建议： 选择一个你熟悉的系统（或假设一个系统），尝试用微服务架构的思想重新设计它。关注：
将你的设计方案记录下来，这将是你微服务架构能力的重要积累。
